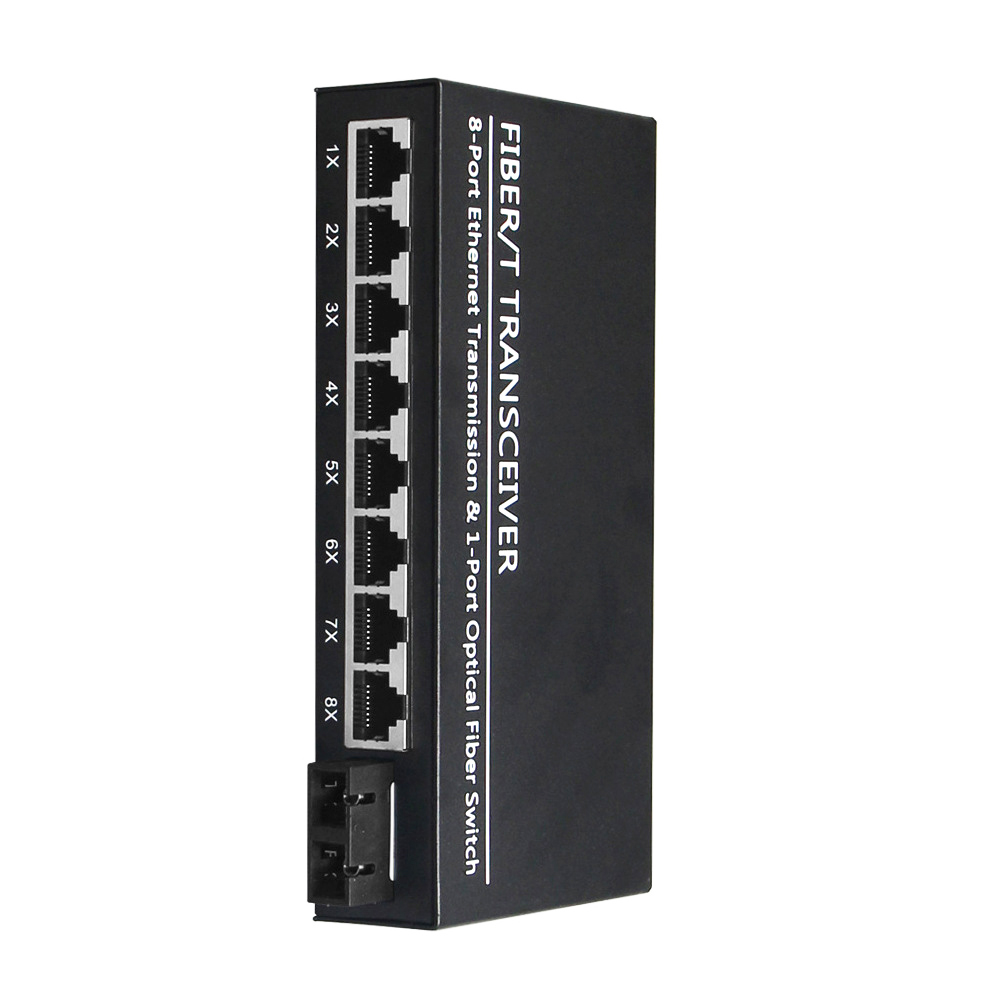

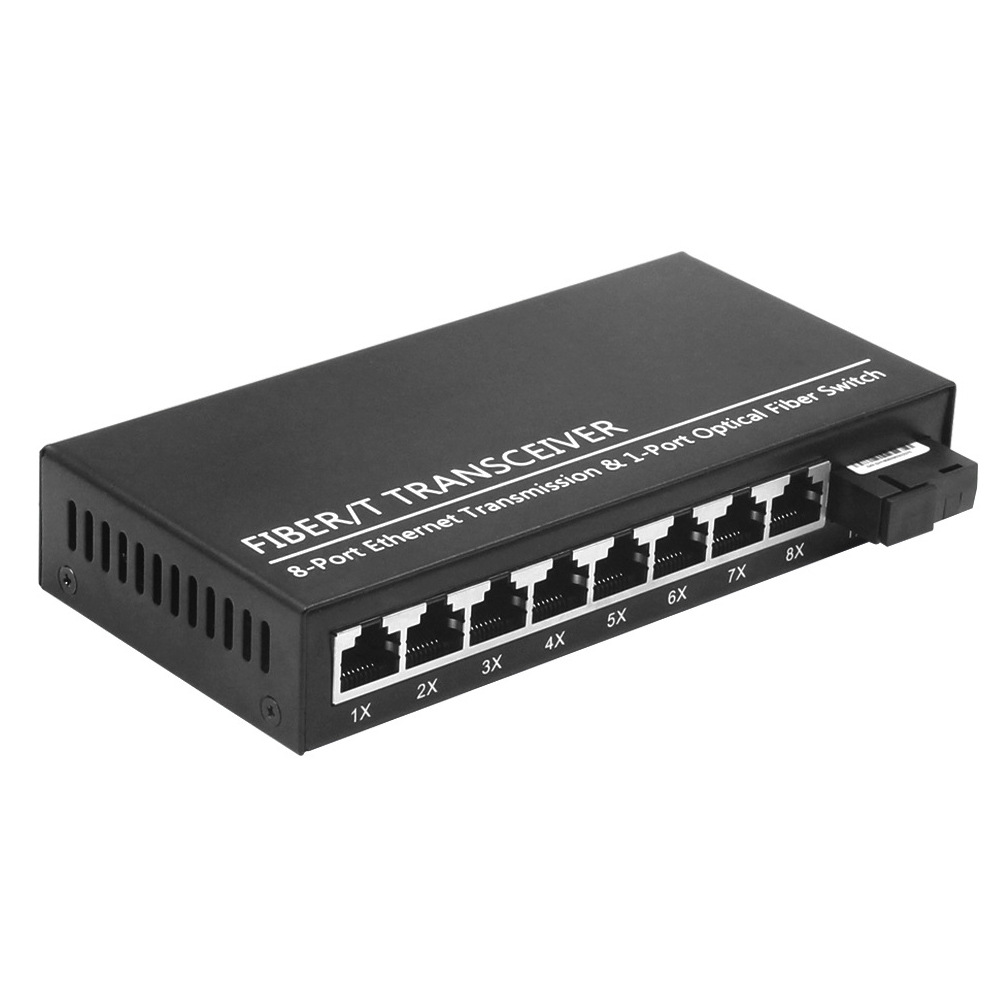

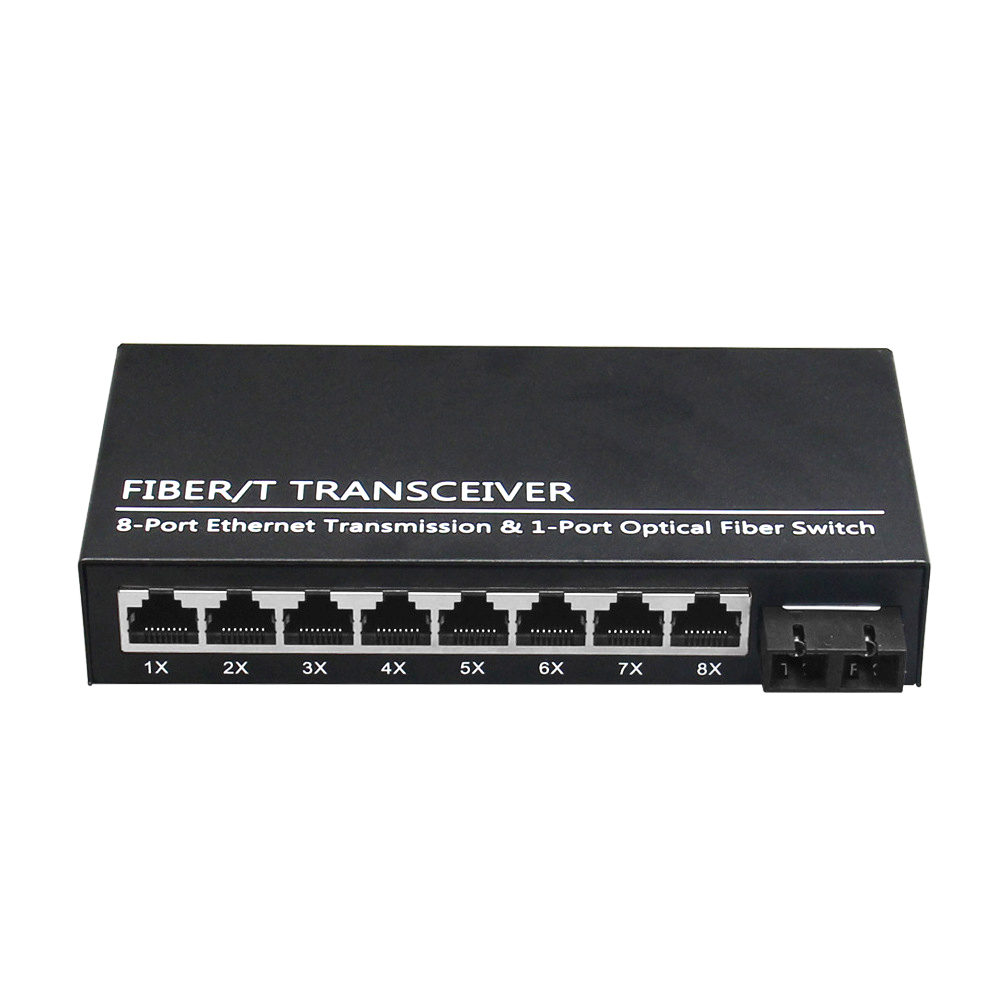

Ethernet Switch 9 Port Fiber Optic Switch Network Quiet Gigabit Home Switch Fiber Optical Media Converter

Product Description

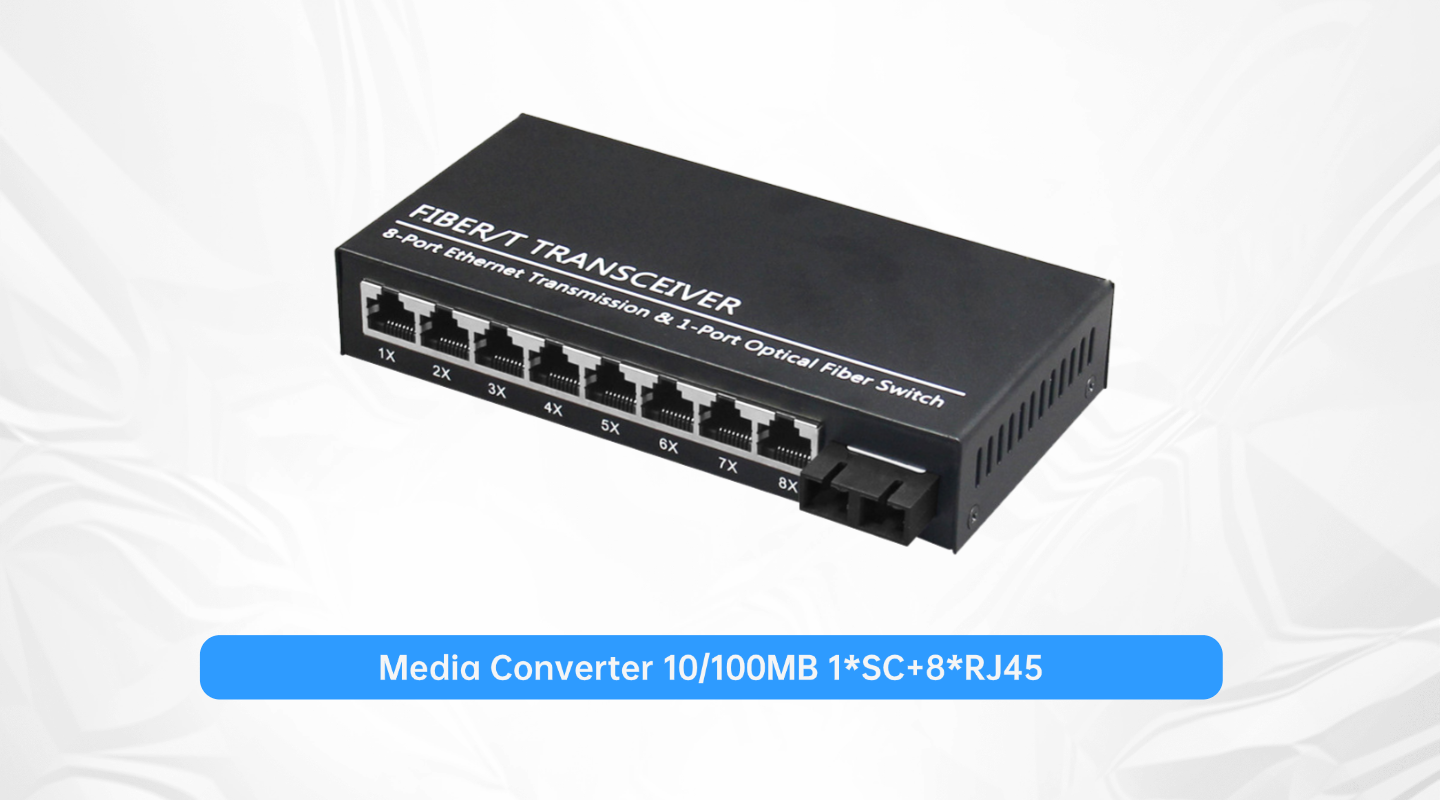

Fiber Port Switch Overview
Fiber Port Switch Interface
1 fiber port with 8*10/100Mbps RJ45 port

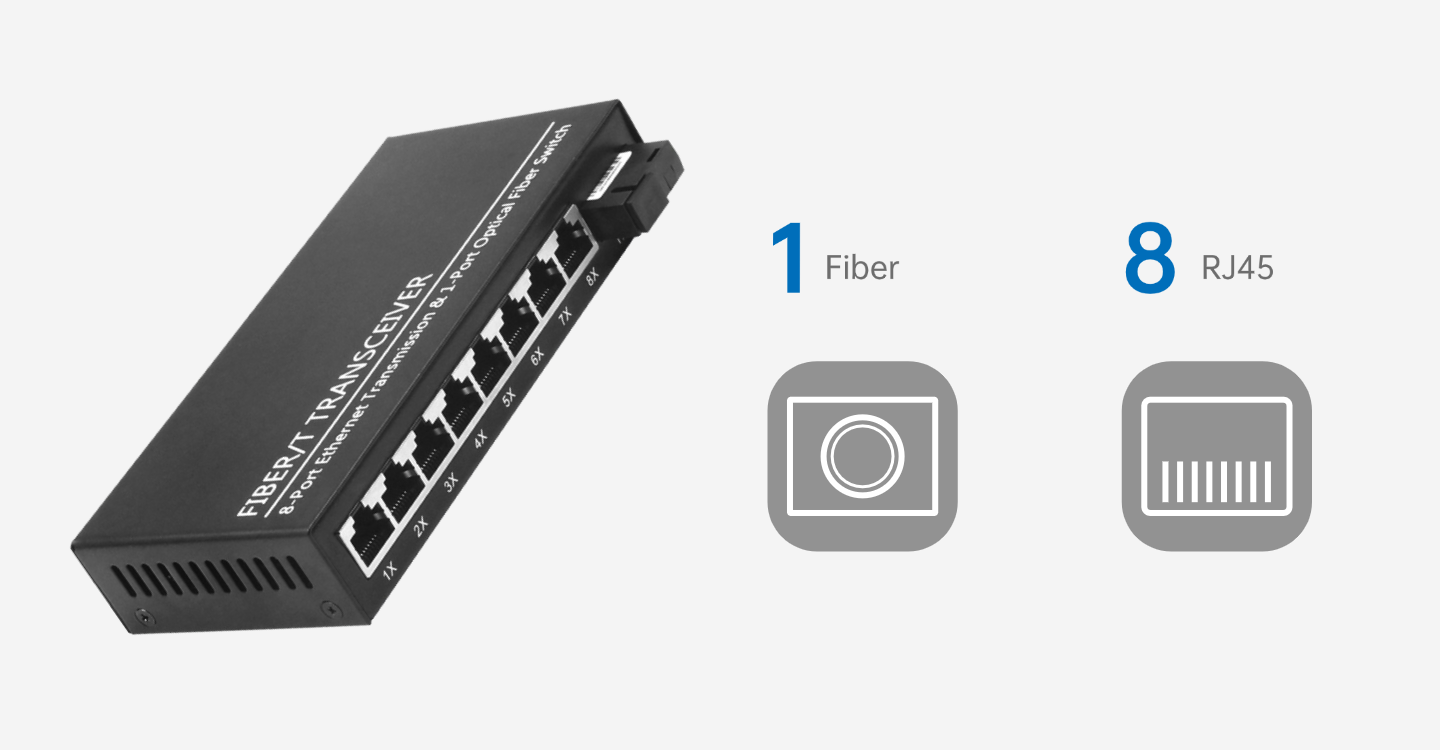

Point-to-multipoint high-speed forwarding
High-speed forwarding illustration

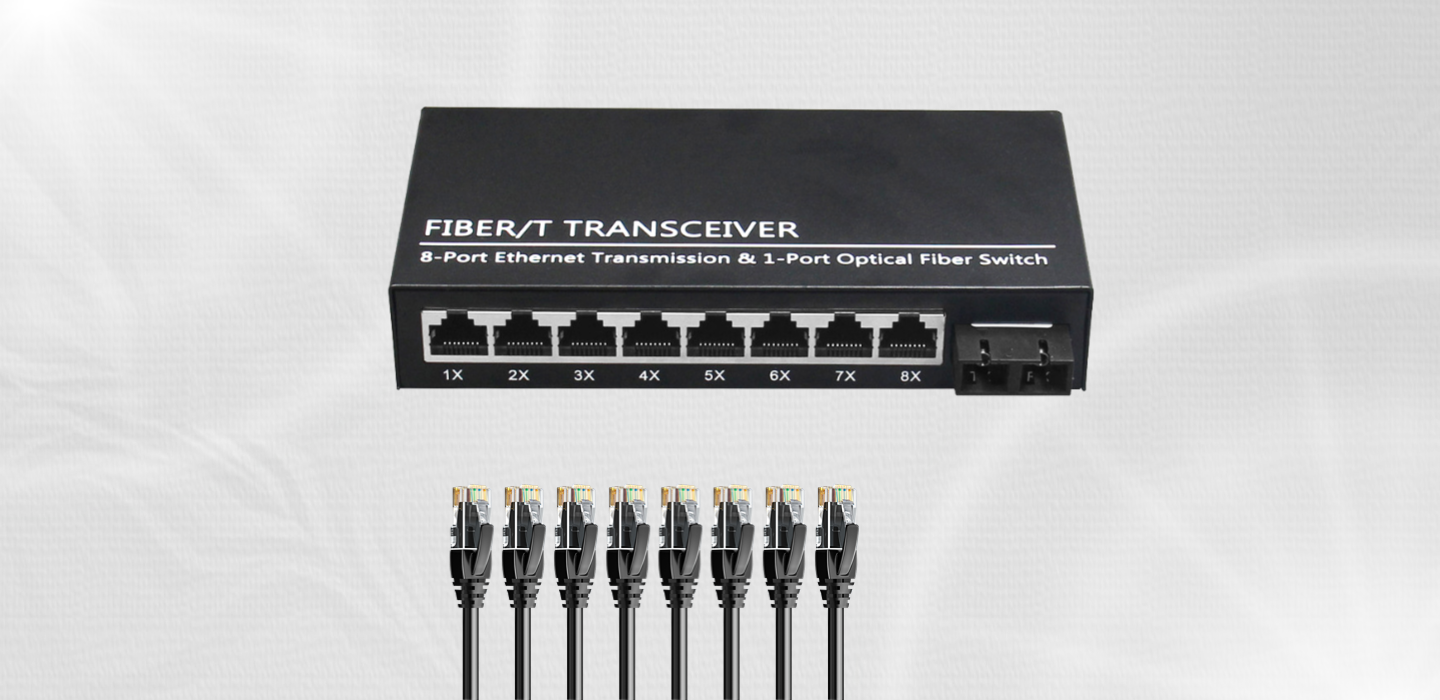

Plug-and-play, no need for any configuration
Plug and Play connectivity

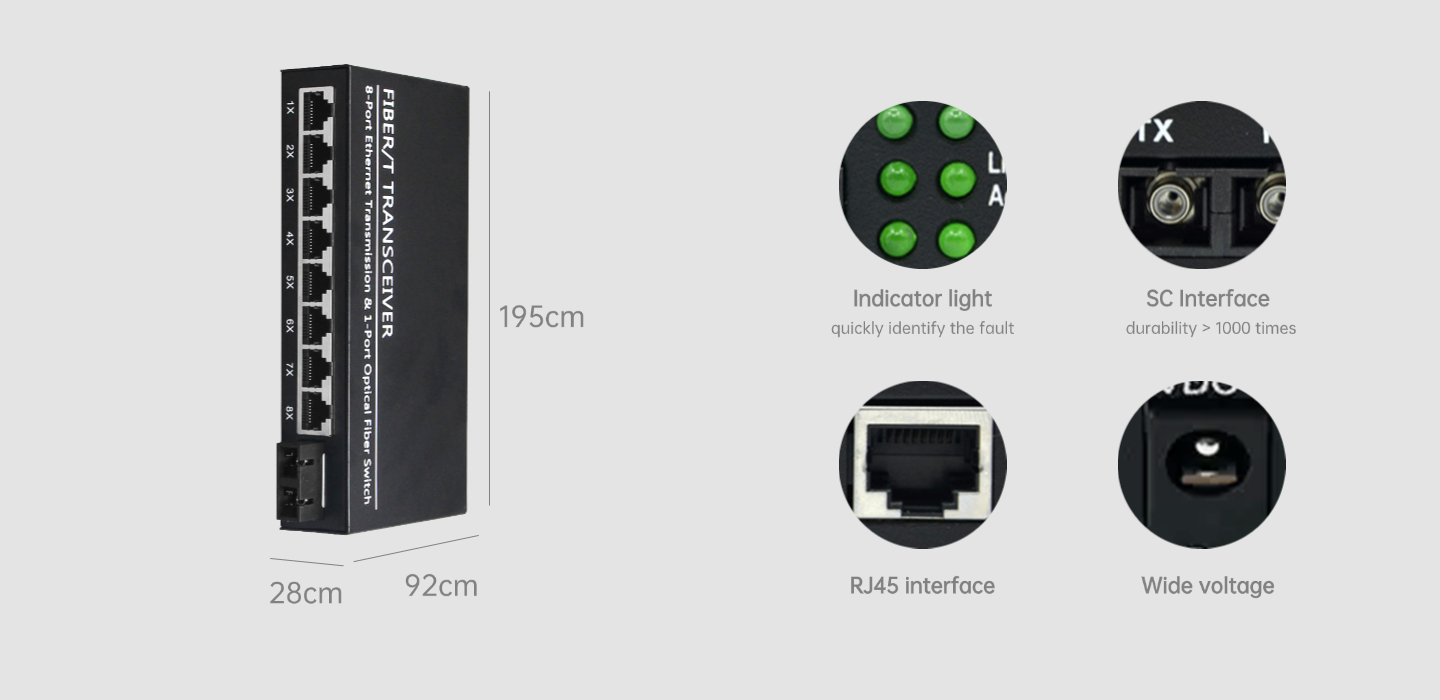

Product dimensions and interface definitions
Dimensions and interfaces details

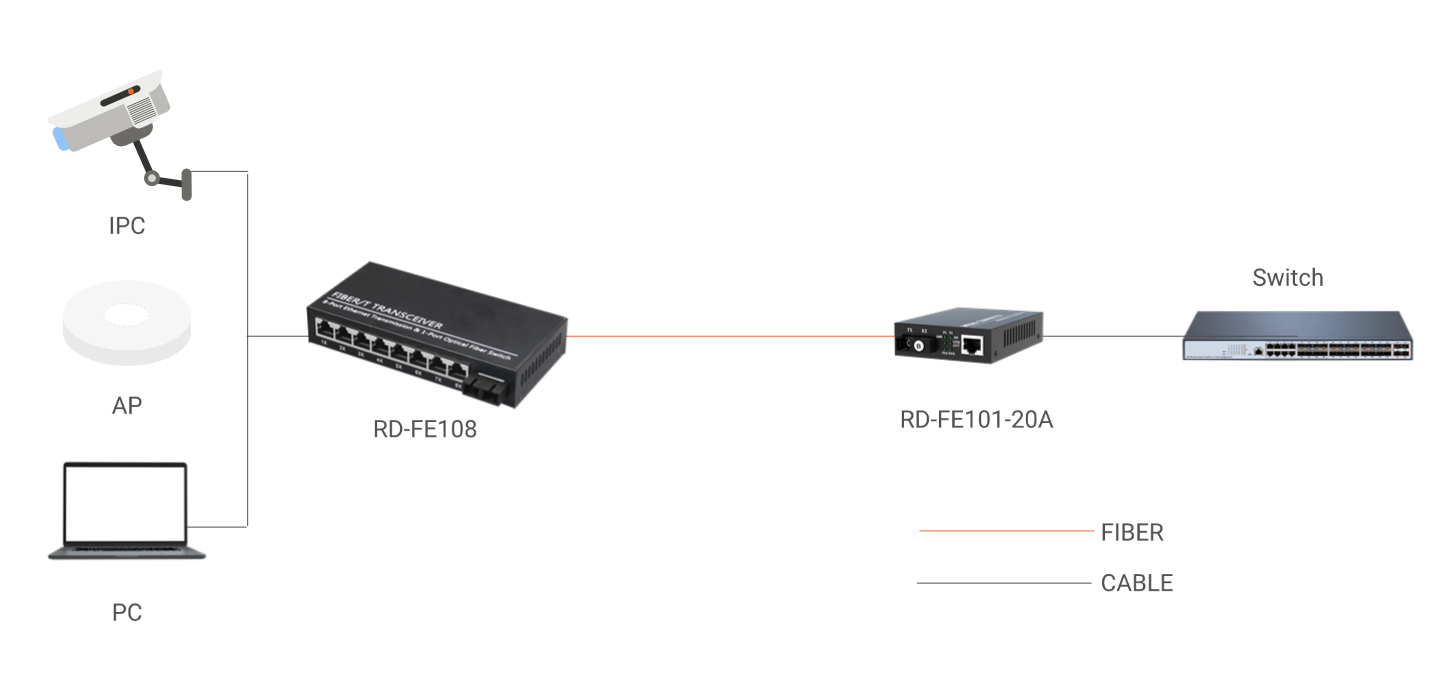

Application Scenario
Application diagram
Specifications & Ordering Details
Hardware Specifications
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface
  • 1 * 155Mbps SC optical fiber interface
  • 8 * RJ45 10/100Mbps
Distance
  • 100m @ CTE5
  • 20km @ SMF
Wavelength
  • A: Tx1310nm / Rx1550nm
  • B: Tx1550nm / Rx1310nm
Transmission Media
  • Cable: CTE5 or higher UTP and STP
  • Optical Fiber: 9/125um single-mode optical fiber
Optical Parameter
  • Average emission power: -9 to -3 dBm
  • Receiving sensitivity: -22 dBm
Power DC5V/2A
Size 195mm * 92mm * 28mm
Environment
  • Operating temperature: -5°C to 60°C
  • Operating humidity: 10% to 90% RH (non-condensing)
  • Storage temperature: -40°C to 70°C
  • Storage humidity: 5% to 90% RH (non-condensing)
Ordering Information
RD-FE108-T Fiber Media Converter 10/100MB 1*SC+8*RJ45 1310-TX
RD-FE108-R Fiber Media Converter 10/100MB 1*SC+8*RJ45 1550-TX
This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required. Please contact for more details.
Frequently Asked Questions
Q1 What is your MOQ request?
Depends on products, different products have different MOQ, please contact sales for more details.
Q2 Do you support ODM/OEM service?
Yes, we can offer the customization service to you.
Q3 Does your products support other brands?
Yes, all of our products is without lock, support to another brands too.
Q4 Are you the manufacturer or trading company?
We are the manufacturer, we support factory view tour.
Q5 Do you offer free samples?
Yes, for some models we are able to provide the free samples for your testing purpose.
Q6 Are you able to provide the local certificates?
Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
