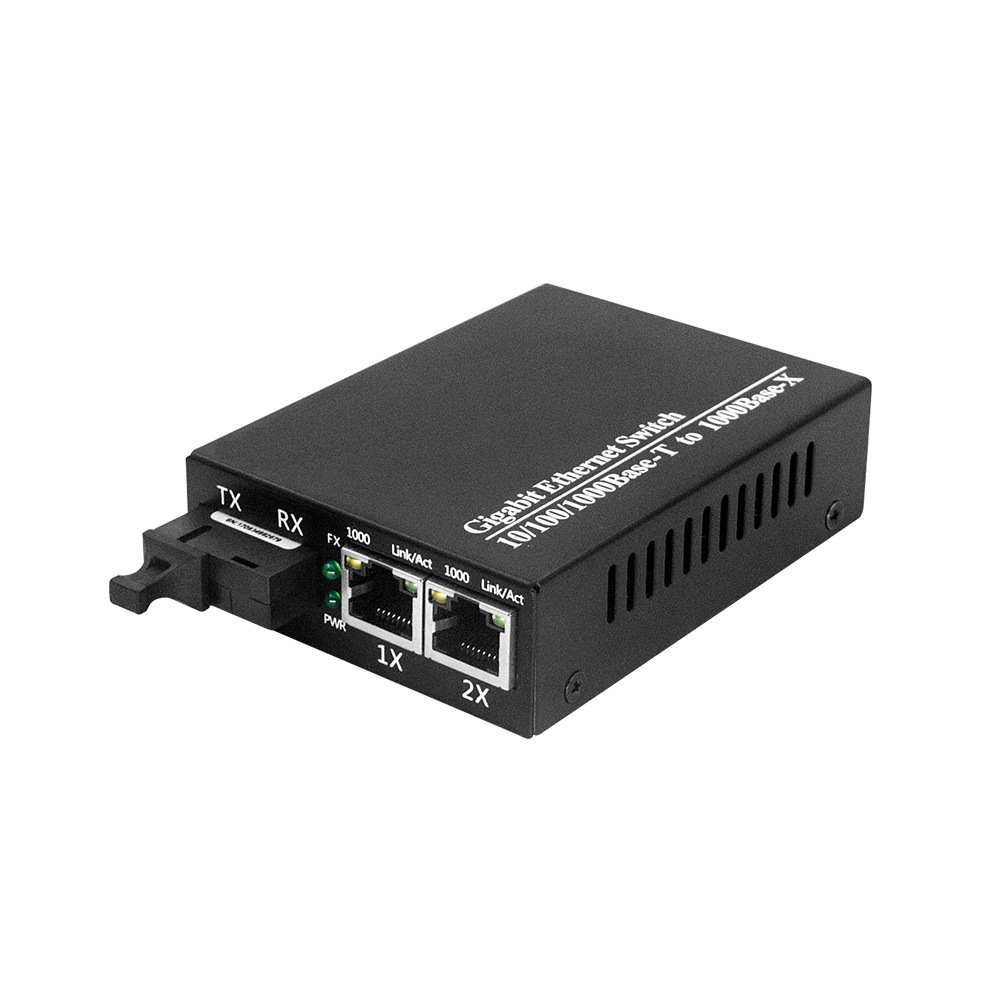

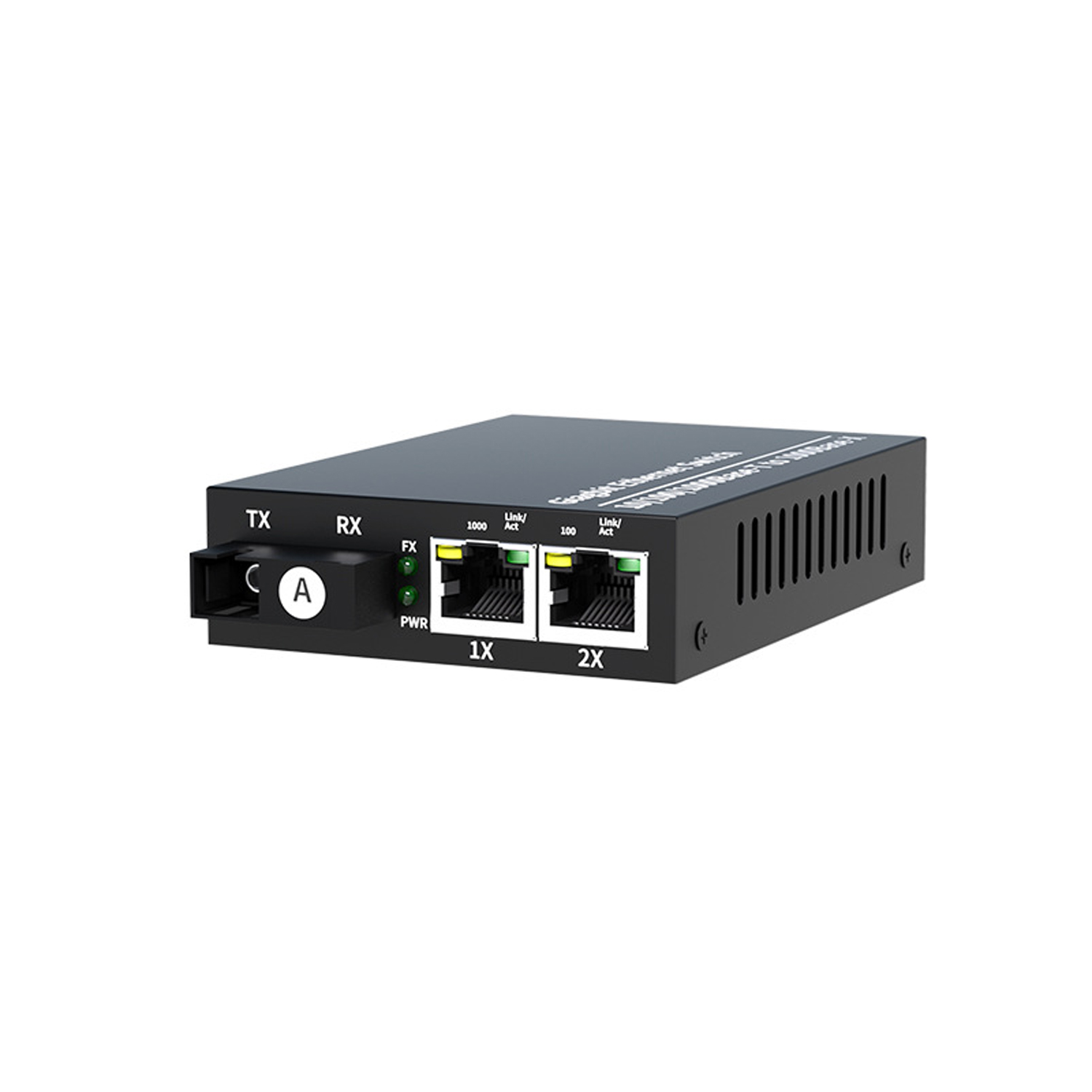

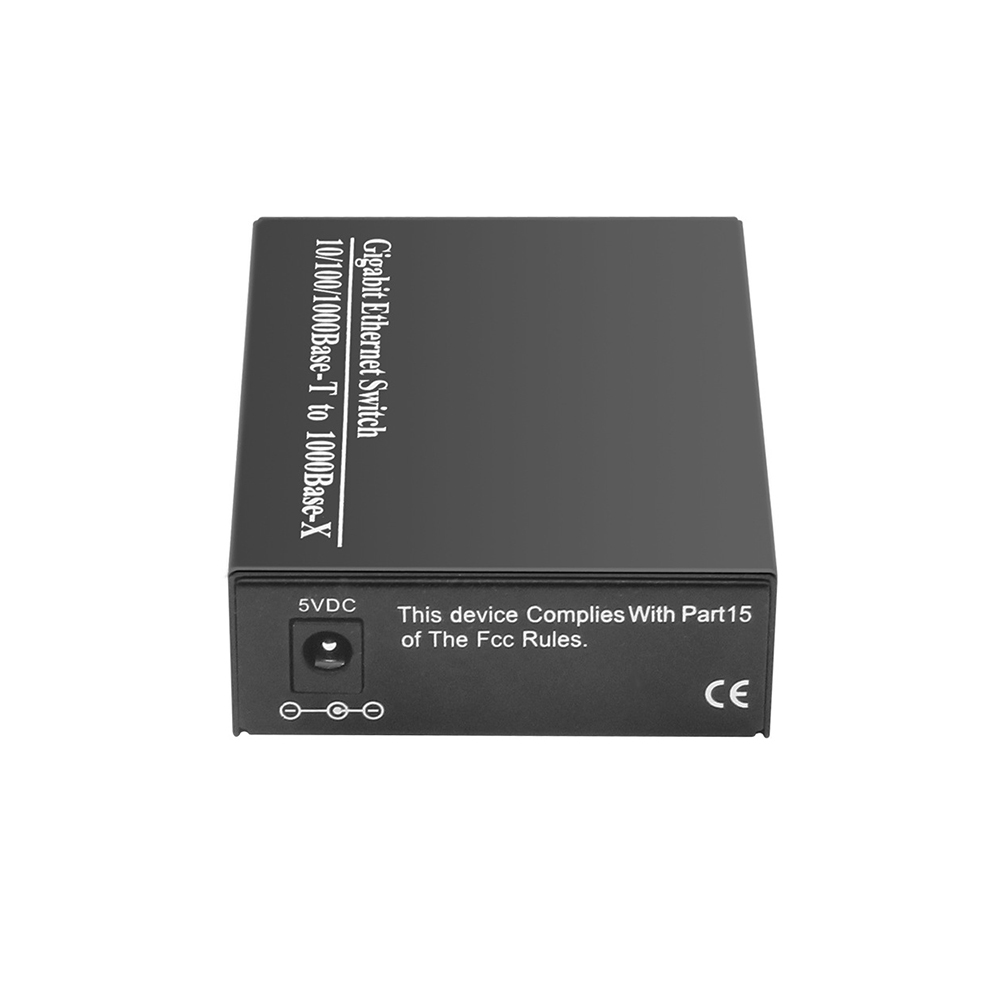

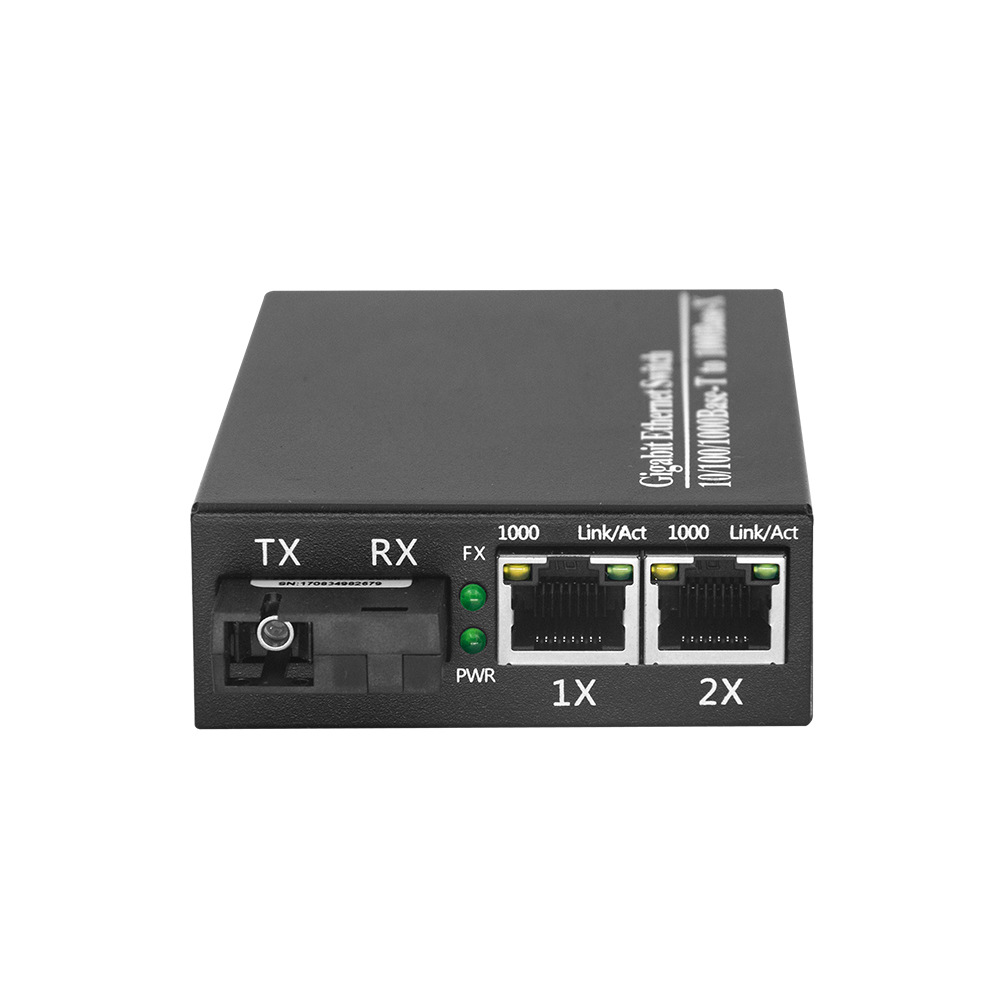

Plug Play 20km 10/100/1000Mbps Ethernet Optical Transceiver Fiber Optic Media Converter SC RJ45 Inficomo RD-GE102 2-Port CCTV

Product Description

Specification
Product Specification Image 1

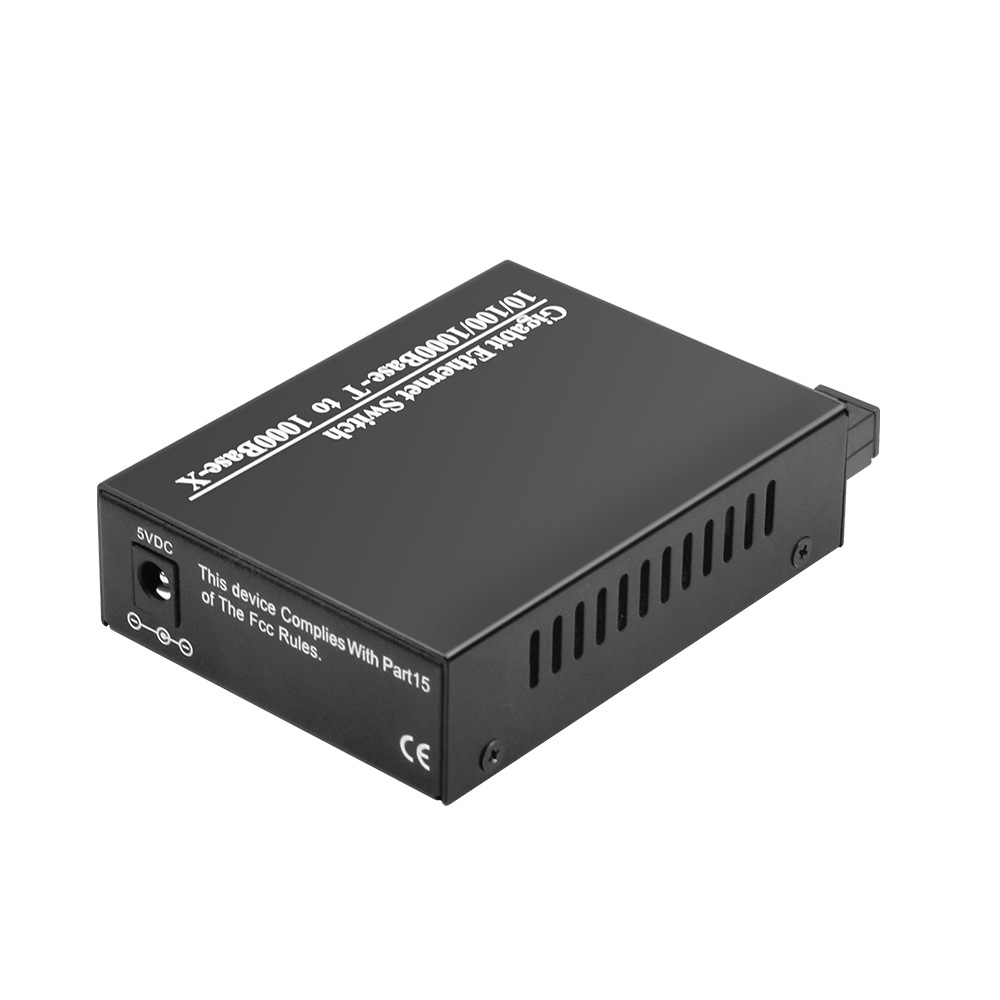

Product Specification Image 2
Description
1 fiber to 2 UTP switch uses 1X9 fiber modules which supports multimode or single mode dual fiber, bi-directional single fiber. The transmission distance is 2km max on MMF and 100km max on SMF. Standard in-stock fiber interface is SC. ST and FC available upon requests.
Features
  • 1 x SMF/MMF, simplex/duplex fiber port
  • 2 x 10/100/1000M auto-sensing Half/Full duplex RJ45 ports
  • Excellent cooling system with unique HIC solution
  • Follow control and broadcast storm control
  • IEEE802.3/u/x compliant
  • Conspicuous LED indicators for power/link diagnose/data
  • 50,000 hours MTBF
Technical Specification
Standard IEEE802.3, IEEE802.3u, IEEE802.3x
Protocol CSMA/CD
Fiber 1 x Single fiber or Dual fiber
Distance Single fiber SM: 20-100km, Dual fiber MM: 1km, Dual fiber SM: 20-100km
Optical interface SC (ST, FC)
Ethernet Interface 2 x MDI/MDIX RJ45 ports
Power Supply DC5V 1A (external power)
Operating Temperature 0°C ~ +50°C
Storage Temperature -30°C ~ +60°C
Humidity 5%~90% non-condensing
Dimension 158mm × 100mm × 27mm
Weight 0.78 kg (Gross Weight)

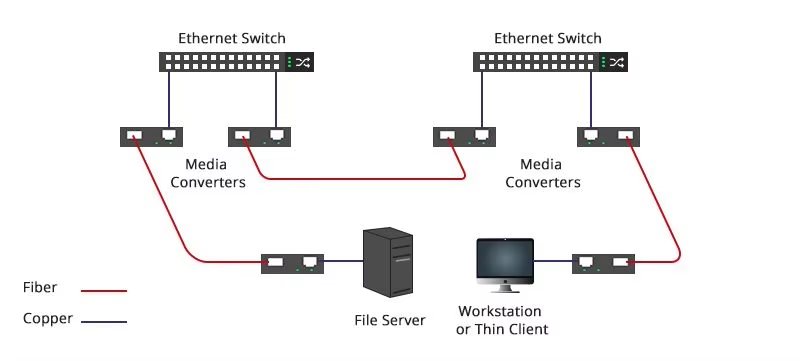

Product Diagram
Application
  • Interconnect switches
  • Realize the interconnection between computers
  • Connect switches to computers
Order Info
Description
Fiber Media Converter, 1*1000Base-Fx to 2*10/100/1000Base-Tx
Frequently Asked Questions
Who Are We?
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a 11-50 person team dedicated to serving global clients.
How Do We Guarantee Quality?
♦ Pre-production samples before mass production ♦ 100% final inspection before shipment
What Can You Buy From Us?
FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
Why Choose Us?
We are a top-tier optical communication supplier with over 50 employees. Our core focus: PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.
What Services Can We Provide?
♦ Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc. ♦ Payment Currencies: USD, EUR, CNY, and more ♦ Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc. ♦ Languages: English, Chinese, Spanish, French, Russian, and more
