Using thickened metal plates and convection design. Distributed ventilation, heat-resistant and with strong heat dissipation capability.
All-metal ventilation housing, distributed convection cooling, resistant to cold and heat, capable of stable operation in harsh environments ranging from -20°C to +60°C.
Stable transmission, safe and reliable, meeting the requirements for long-distance transmission.

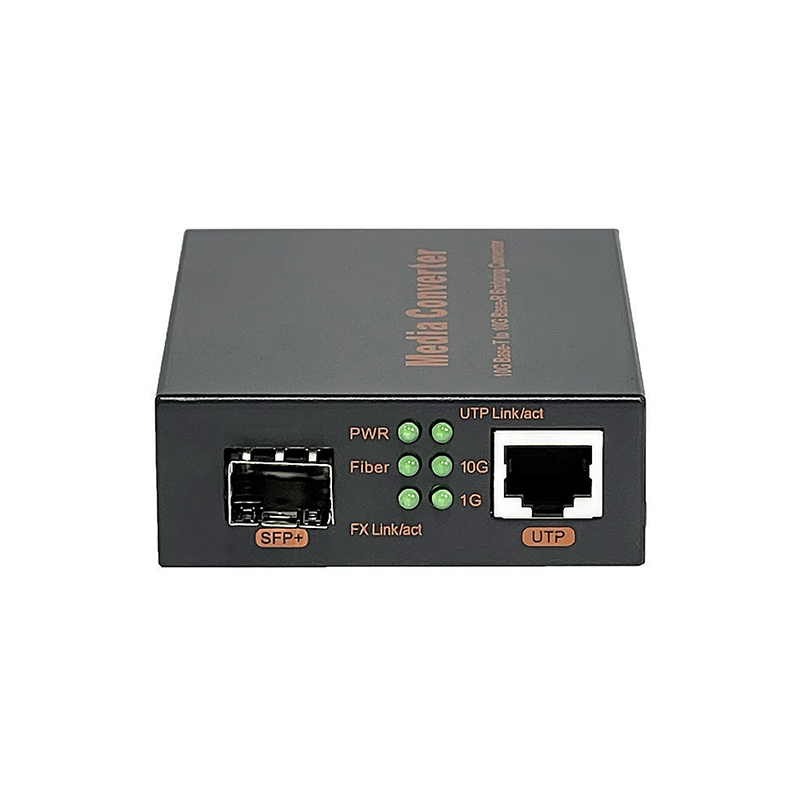

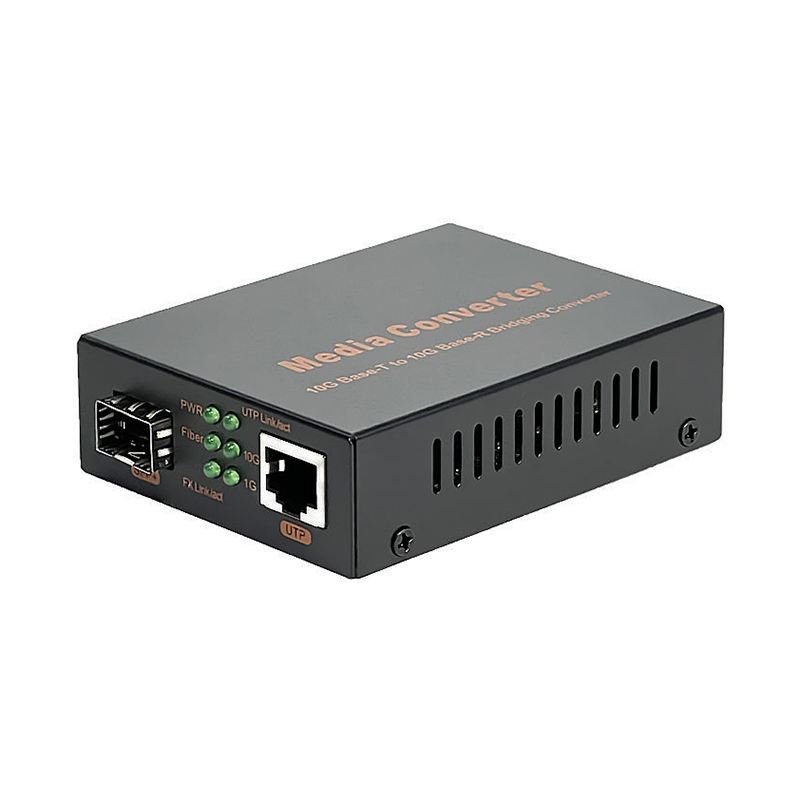

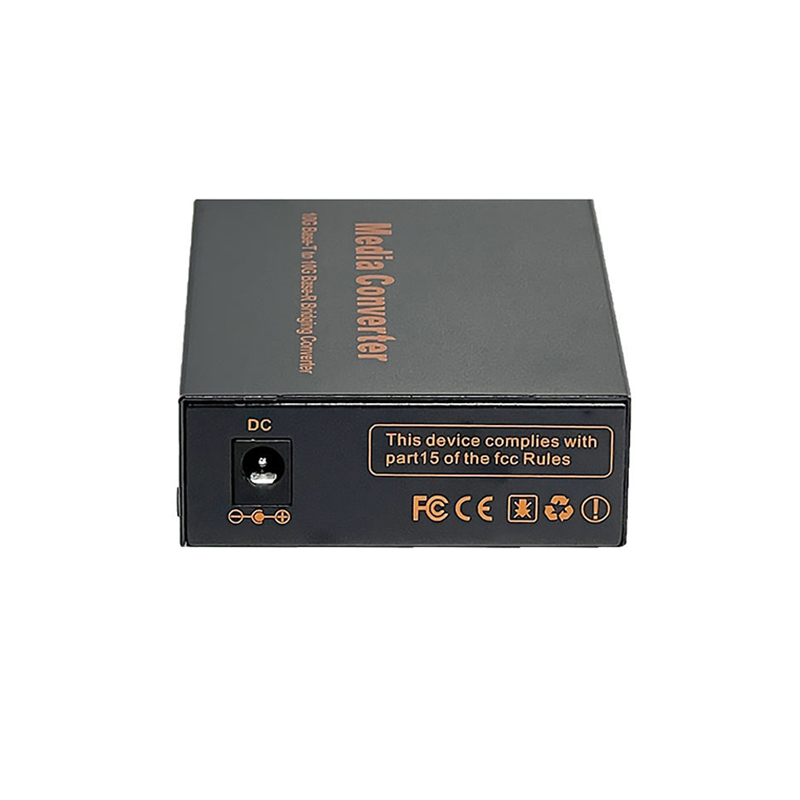

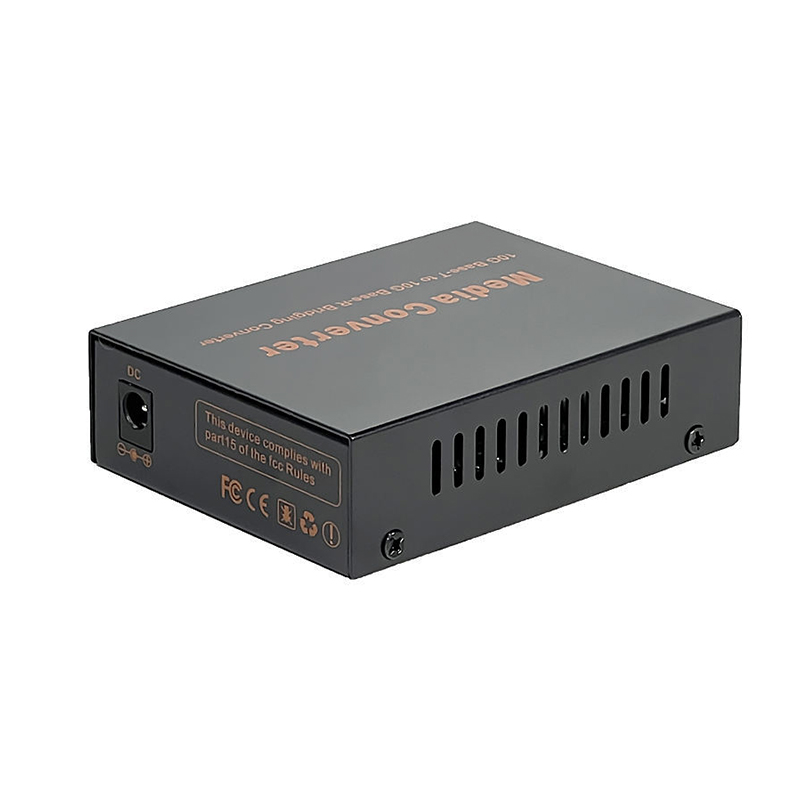

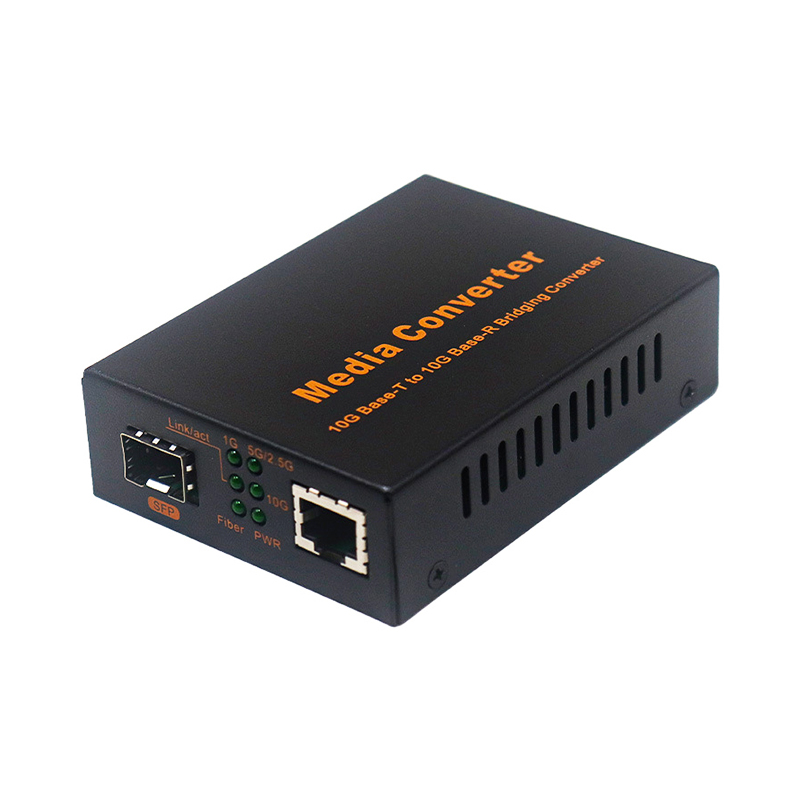

| 10G Base-T to 10G Base-R Bridging Fiber Media Converter | |
|---|---|
| Protocols | IEEE802.3an (10Gbase-T), IEEE802.3ae (10Gbase-SR/LR/ER/ZR) |
| Access Type | 10G LAN |
| Interface Type | RJ45 To/From SFP+ |
| Transmission Distance | |
| XFP/SFP+ module | Up to 80Km |
| 10Gbase-T | 100 meters Cat .6a cable |
| Max Packet Forwarding Rate | 14,880,950/S |
| Network Management Information | |
|
• Card type information • XFP/SFP+ fiber module detection • XFP/SFP+ fiber module DMI function (Temperature, Voltage, Optical power) • Link status detector • Enable/Disabled Loopback test function • UTP cable length detection (only RJ45 interface) • Remote card's status monitor (only in pairs) |
|
| Power Requirement | |
| Rack-mountable | AC 85 ~ 220V OR DC -48V |
| Standalone | AC 220V OR DC -48V |
| Power Consumption | ≤9W |
| Work Environment | |
| Operating Temp | 0 ~ 50 °C |
| Storage Temp | -10 ~ 70 °C |
| Humidity | 5% ~ 90% (non-condensing) |
| Dimension | |
| Card | 11.5mm (W) × 78mm (D) |
| Standalone | 156mm (W) × 128mm (D) × 32mm (H) |
| Model | Introduction | Function |
|---|---|---|
| RD-GS5801-SFP+ | 1/2.5/10GB to SFP+ Media Converter | 10G media converter, 1*RJ45+1*SFP port, External DC12V power supply |
A1: Depends on products, different products have different MOQ, pls contact our sales for more details.
A2: Yes, we can offer the customization service to you.
A3: Yes, all of our products is without lock, support to another brands too.
A4: We are the manufacturer, we support factory view tour.
A5: Yes, for some models we are able to provide the free samples for your testing purpose.
A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
