Brand-new complete circuit board, equipped with high-quality chips, ensuring more stable transmission.

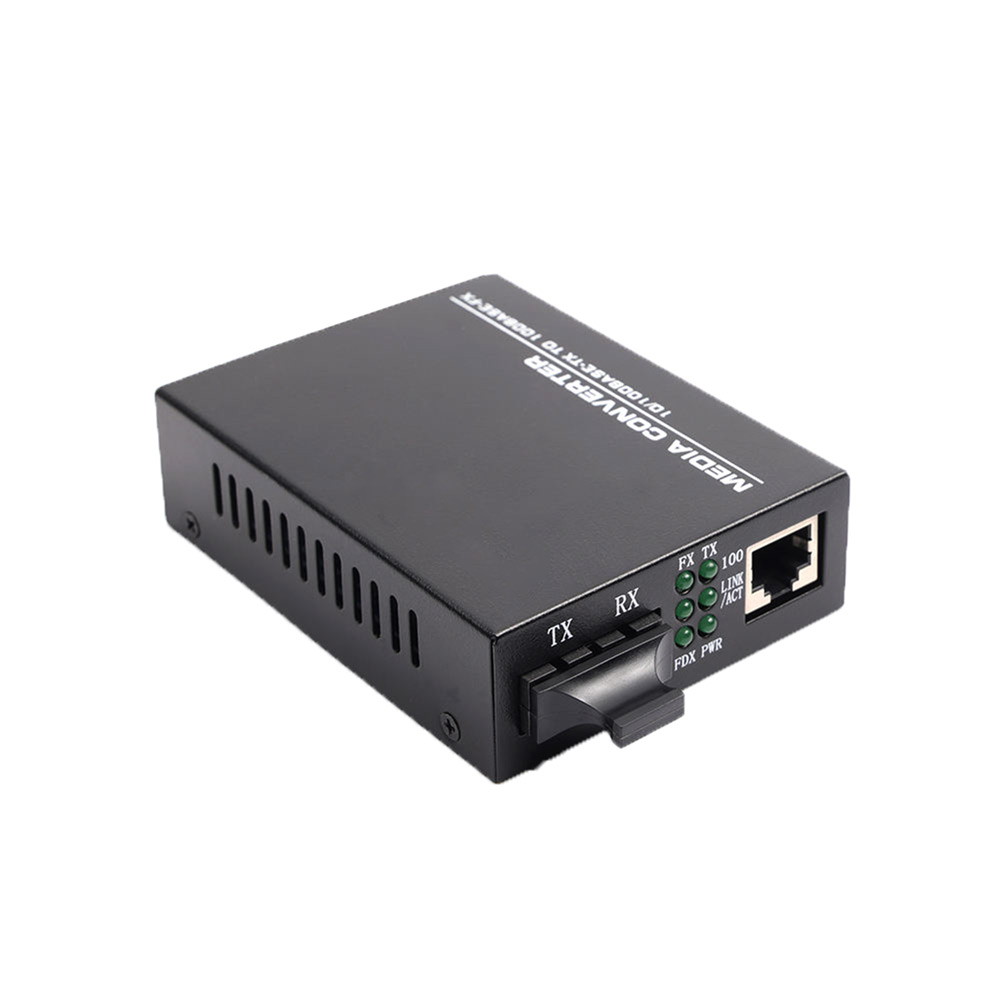

Two sets of cooling holes are designed on both sides, effectively reducing the heat generated during operation, enabling the equipment to work for a longer period of time.
| Interface Characteristics | |||
| Interface | 1* 10/100Base-TX RJ45 port (Data) 1*155M uplink SC fiber port (Data) |
||
| Ethernet Port | 10/100Base-TX,auto-sensing,Full/half duplex MDI/MDI-X self-adaption | ||
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
||
| Optical Fiber Port | 155Mbps, multimode dual fiber SC interface | ||
| Optical Cable/ Distance | multimode: 850nm / 0 ~ 500m, 1310nm / 0 ~ 2km | ||
| Chip Parameter | |||
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX IEEE802.3x |
||
| Forwarding Mode | Store and Forward(Full Wire Speed) | ||
| Switching Capacity | 1.0Gbps | ||
| Forwarding Rate@64byte | 0.3Mpps | ||
| MAC | 1K | ||
| Buffer Memory | 768K | ||
| Jumbo Frame | 1536byte | ||
| LED Indicator | Power: PWR (green), Data: L/A (green), Single / duplex: FDX (green), Fiber: FX (green), rate: 10/100 (green) |
||
| Power | |||
| Total PWR / Input Voltage | 3W/ (5VDC) | ||
| Power Consumption | Standby<1W, Full Load<3W | ||
| Physical Parameter | |||
| Operation TEMP / Humidity | -20~+55°C; 5%~90% RH Non condensing | ||
| Storage TEMP / Humidity | -40~+85°C; 5%~95% RH Non condensing | ||
| Dimension (L*W*H) | 94*71*26mm | ||
| Net / Gross Weight | <0.2kg / <0.4kg | ||
| Installation | Desktop, 2U-14 slot rack | ||
| Certification & Warranty | |||
| Lightning protection / protection level | Lightning protection: 4KV 8/20us, Protection level: IP30 | ||
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS | ||
| Warranty | 1 years, lifelong maintenance. | ||
| Model | Introduction | Function |
|---|---|---|
| RD-FE101-20A RD-FE101-20B |
Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| RD-GS2401-SX | Fiber Media Converter 10/100Mbps 550m | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN MM 550m SC DC5V power supply, TRx:1310nm or 850nm |
| RD-GS2401-LX | Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
