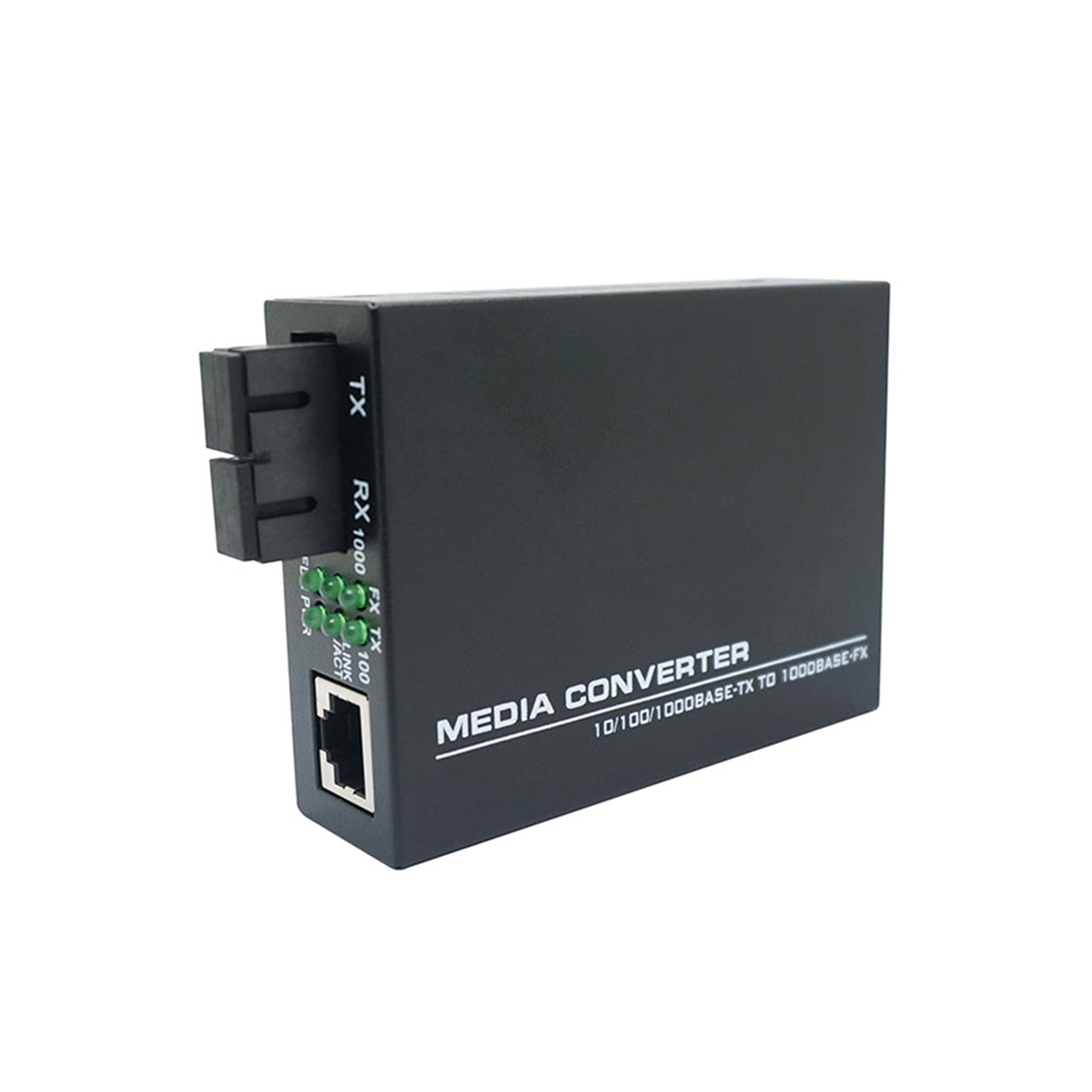

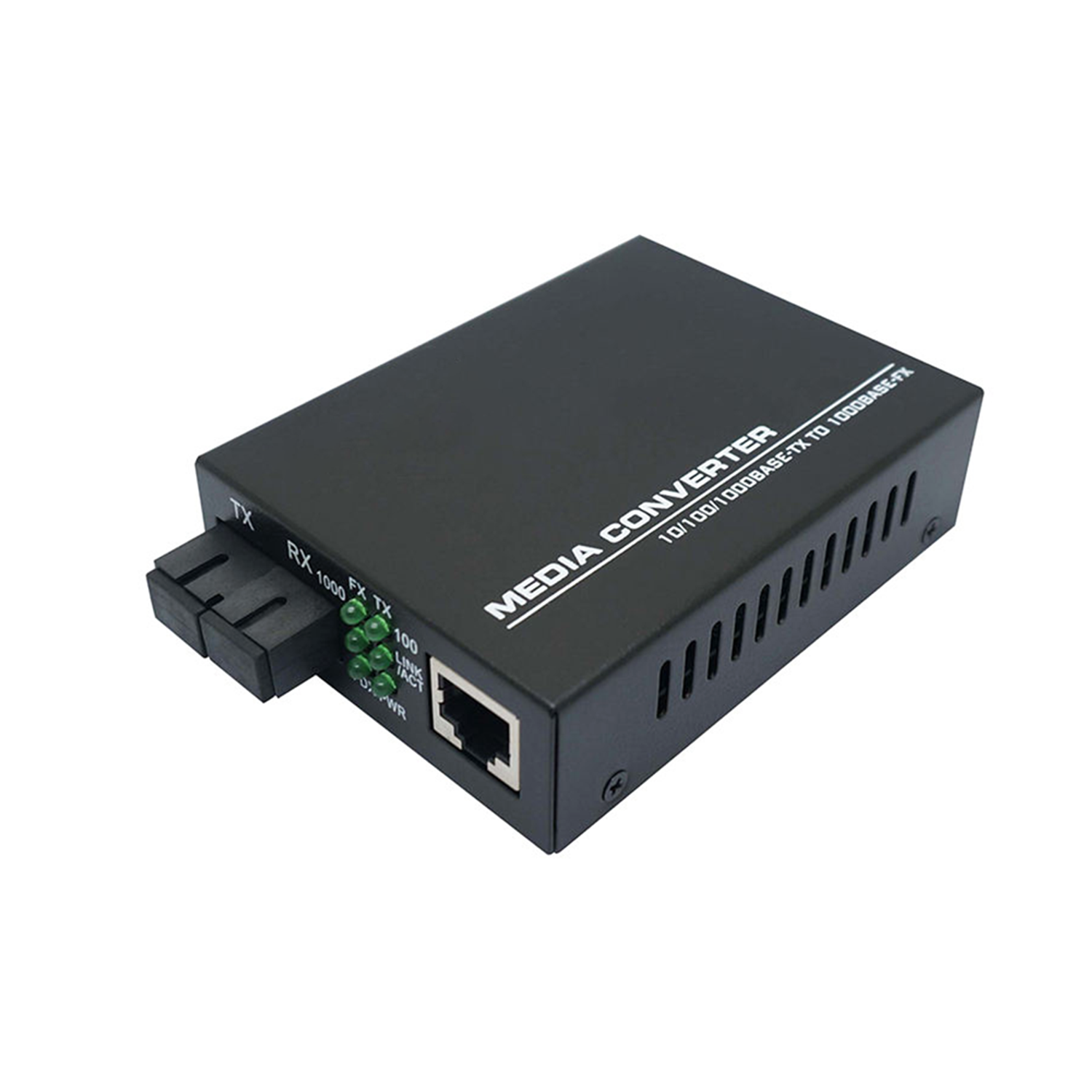

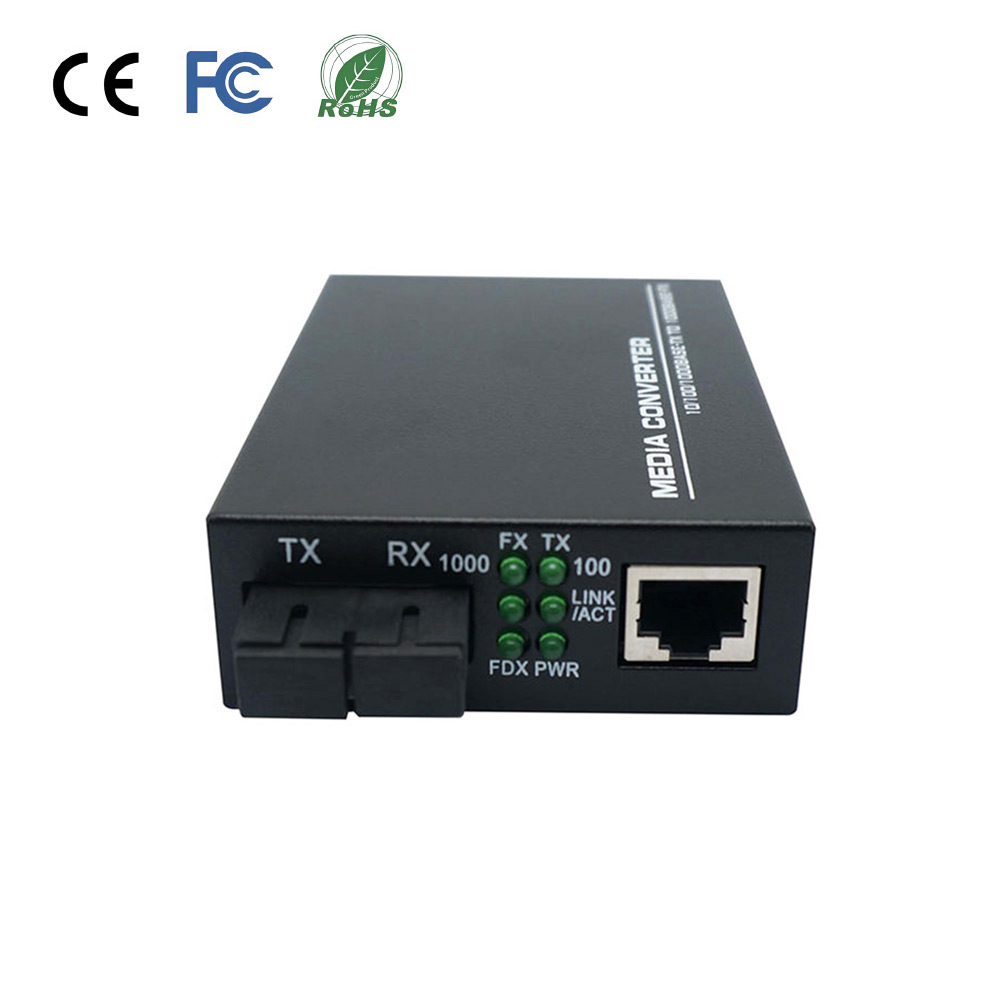

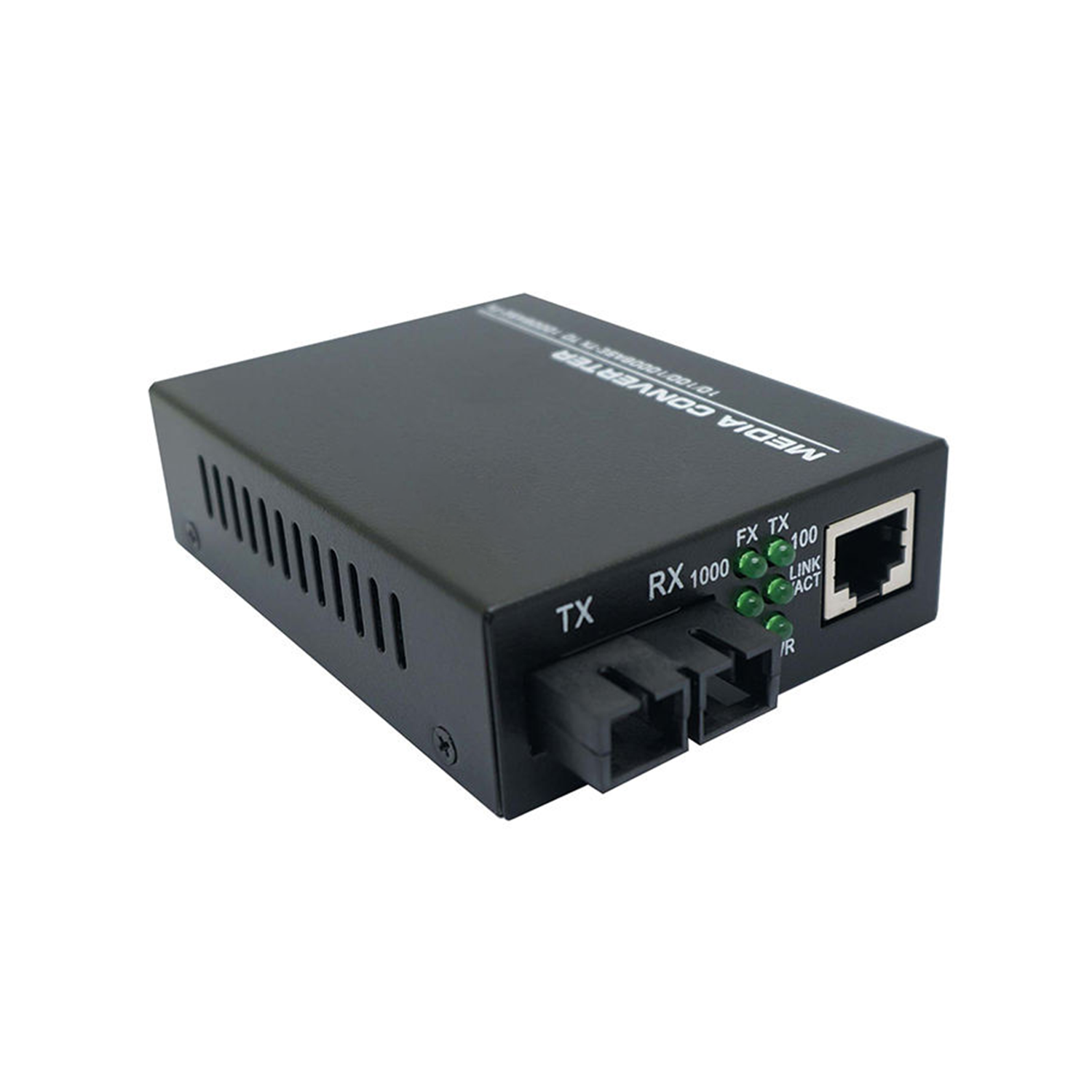

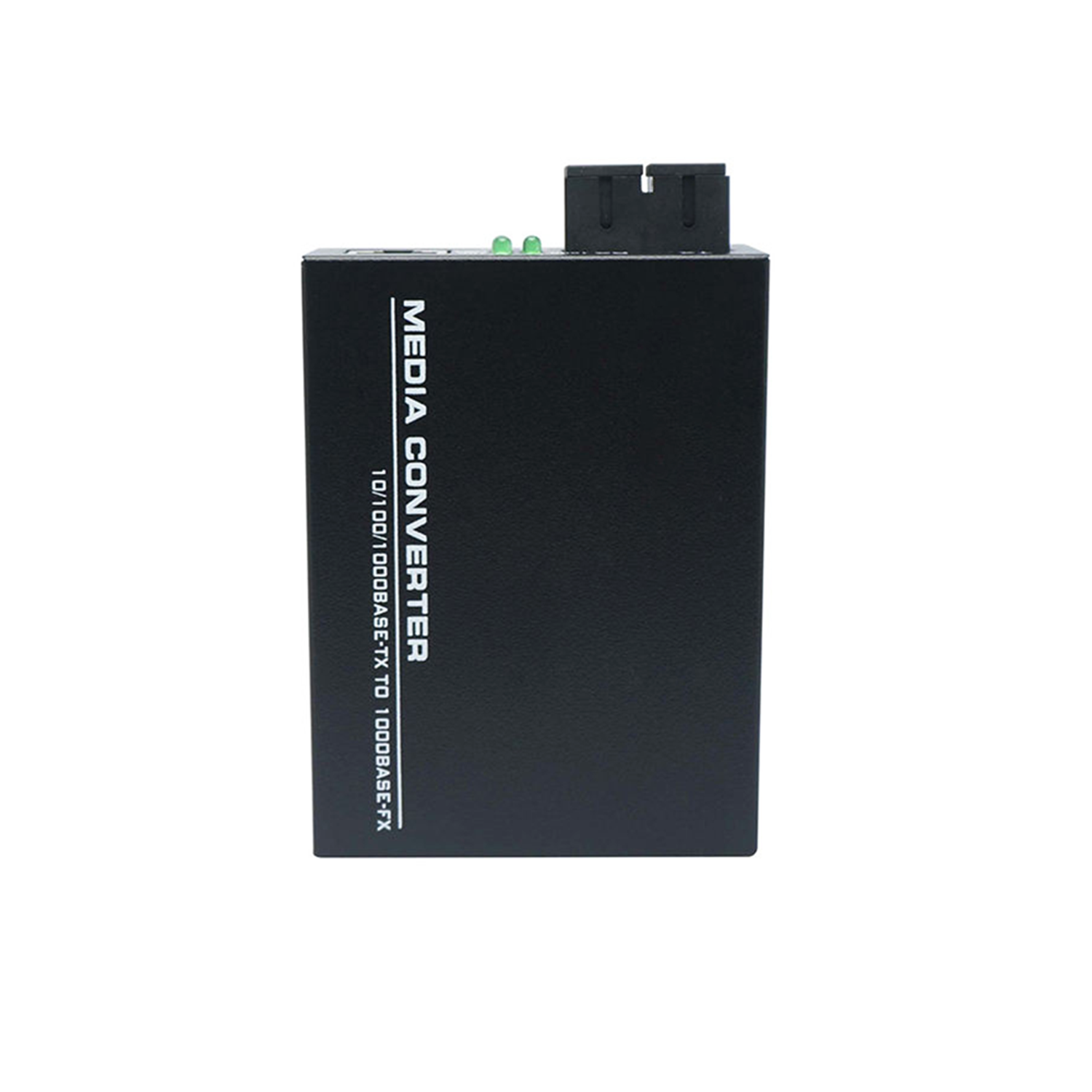

10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V
10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V
10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V
10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V
10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V
1 / 5
10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V
10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V
10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V
10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V
10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V

10/100/1000Mbps Dual Fiber Gigabit Fiber Media Converter 20km Single Mode Duplex SC DC5V

Send Inquiry

Product Description

Product Image 1
Product Image 2
Product Image 3
Specification
Technical Specifications
Access mode 10/100/1000Mbps Gigabit Ethernet Media Converter
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength 850nm / 1310nm / 1550nm
Transmission distance • Multi-mode Dual-fiber: 0.55km (850nm), 2km (1310nm)
• Single mode Dual-fiber: 20/40/60/80/100/120 Km
• Category-5 twisted pairs: 100m
Port One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
Optical port • Multi-mode Dual-fiber: SC/LC/ST(SFP) (50, 62.5/125µm)
• Single mode Dual-fiber: SC/FC/ST/LC(SFP) (9/125µm)
Conversion means Media conversion
BER <10-9
MTBF 100,000 hours
LED indicator POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate 1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action)
Power supply • AC90V-260V (internal power)
• DC-48V, DC24V, DC12V, DC5V (external power)
Power consumption 5W
Operating temperature -10 ~ 55ºC
Operating humidity 5% ~ 90%
Maintaining temp -40 ~ 70ºC
Maintaining humidity 5% ~ 90% non-condensing
Dimensions 71mm (W) * 94mm (D) * 26mm (H) (external power supply)
Order Info
Model Introduction Function
RD-GS5601-M20A
RD-GS5601-M20B		 Mini Fiber Media Converter 10/100/1000Mbps 20km Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm
Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm
RD-GS5601-20A
RD-GS5601-20B		 Fiber Media Converter 10/100/1000Mbps 20km Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm
Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm
RD-GS5601-S20 Fiber Media Converter 10/100/1000Mbps 20km Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC - 1*LAN SM 20km SC DC5V power supply, TRx:1310nm
RD-GS5601-SFP 10/100/1000MB to SFP Media Converter 10/100/1000M media converter, 1*RJ45 + 1*SFP port, External DC5V power supply.
RD-GS5601-SFP MINI MINI 10/100/1000MB to SFP Media Converter 10/100/1000M media converter, 1*RJ45 + 1*SFP port, media converter only
RD-GS5601-SFP PCBA MINI 10/100/1000MB to SFP Media Converter PCBA 10/100/1000M media converter, 1*RJ45 + 1*SFP port, Board only.
Overview
Product Layout Diagram
Capabilities & Services
About Us
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team serving global clients.
Quality Guarantee
  • Pre-production samples before mass production
  • 100% final inspection before shipment
Product Range
FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
Why Choose Us
We are a top-tier optical communication supplier. Our core focus: PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.
Services Provided
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery
  • Payment Currencies: USD, EUR, CNY, etc.
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card
  • Languages Spoken: English, Chinese, Spanish, French, Russian
FAQ
What is the maximum transmission distance of this Fiber Media Converter?
The device supports up to 2km for multi-mode dual-fiber applications and up to 20/40/60/80/100/120 km for single-mode dual-fiber applications.
What Ethernet standards does this device comply with?
It complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, and IEEE802.3z 1000Base-SX/LX Ethernet standards.
What types of optical ports can be used?
It supports SC/LC/ST(SFP) interfaces for multi-mode dual-fiber (50, 62.5/125µm) and SC/FC/ST/LC(SFP) interfaces for single-mode dual-fiber (9/125µm).
What is the MTBF (Mean Time Between Failures) for this converter?
The MTBF of this media converter is rated at 100,000 hours, ensuring highly reliable, long-term operation.
How do the LED indicators help in monitoring the device?
The LED indicators provide real-time diagnostic feedback, including POWER (power status), FX LINK (optical link connection), TP LINK1000/100 (TP cable speeds), and TP ACT (packet forwarding activities).
What are the environment requirements for operating and storing the converter?
The converter operates efficiently in temperatures ranging from -10°C to 55°C (humidity 5%~90%). It can be safely stored in temperatures between -40°C and 70°C under non-condensing humidity up to 90%.
