New Dual Band PT939G XPON GPON ONU ONT 4Ge Dual Band Wifi Router 2.4G/5G XPON Gepon Ont Fiber OMCI Function Router for FTTH

Product Description

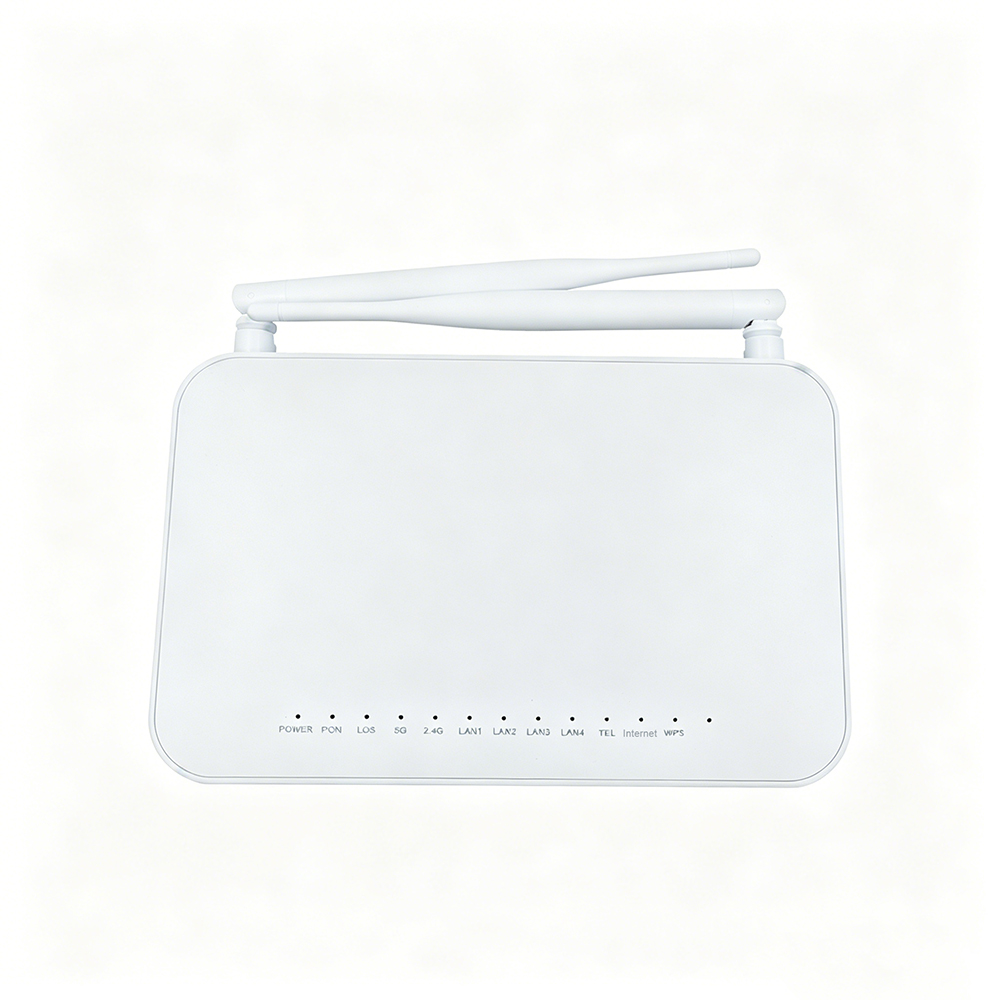

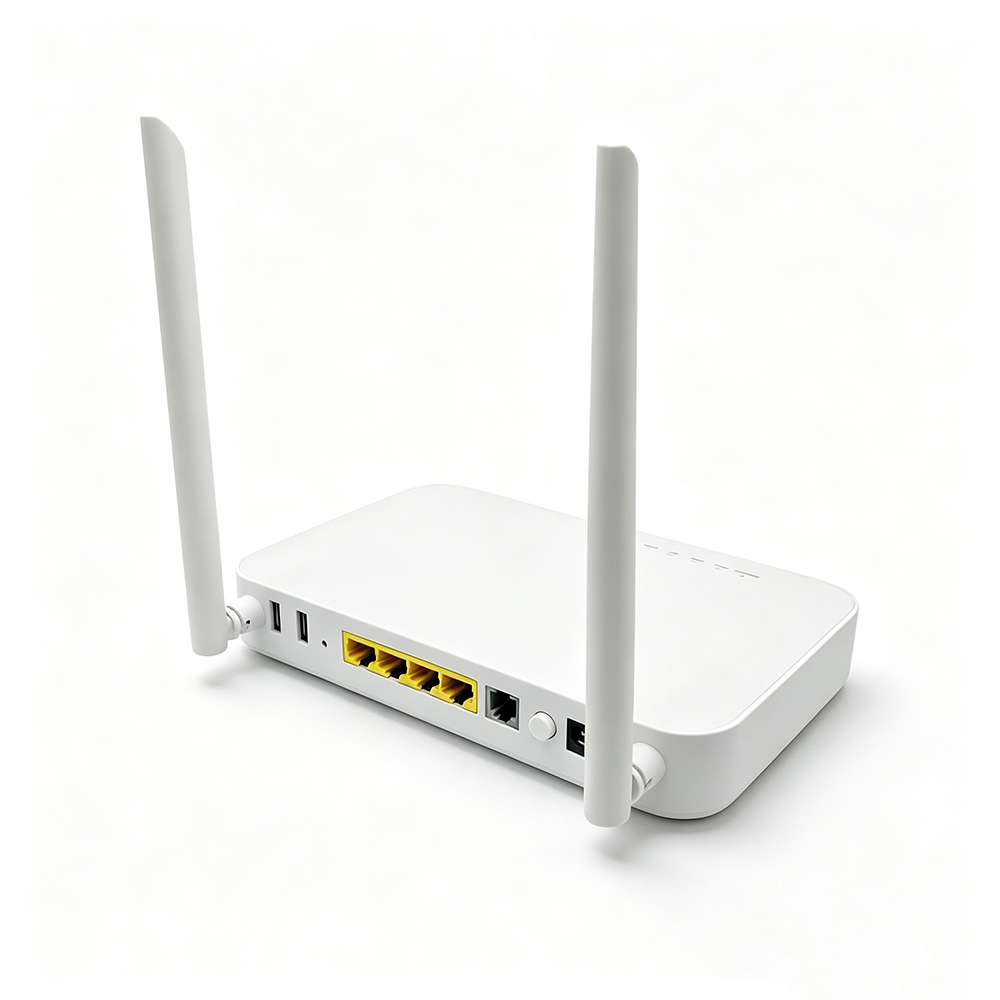

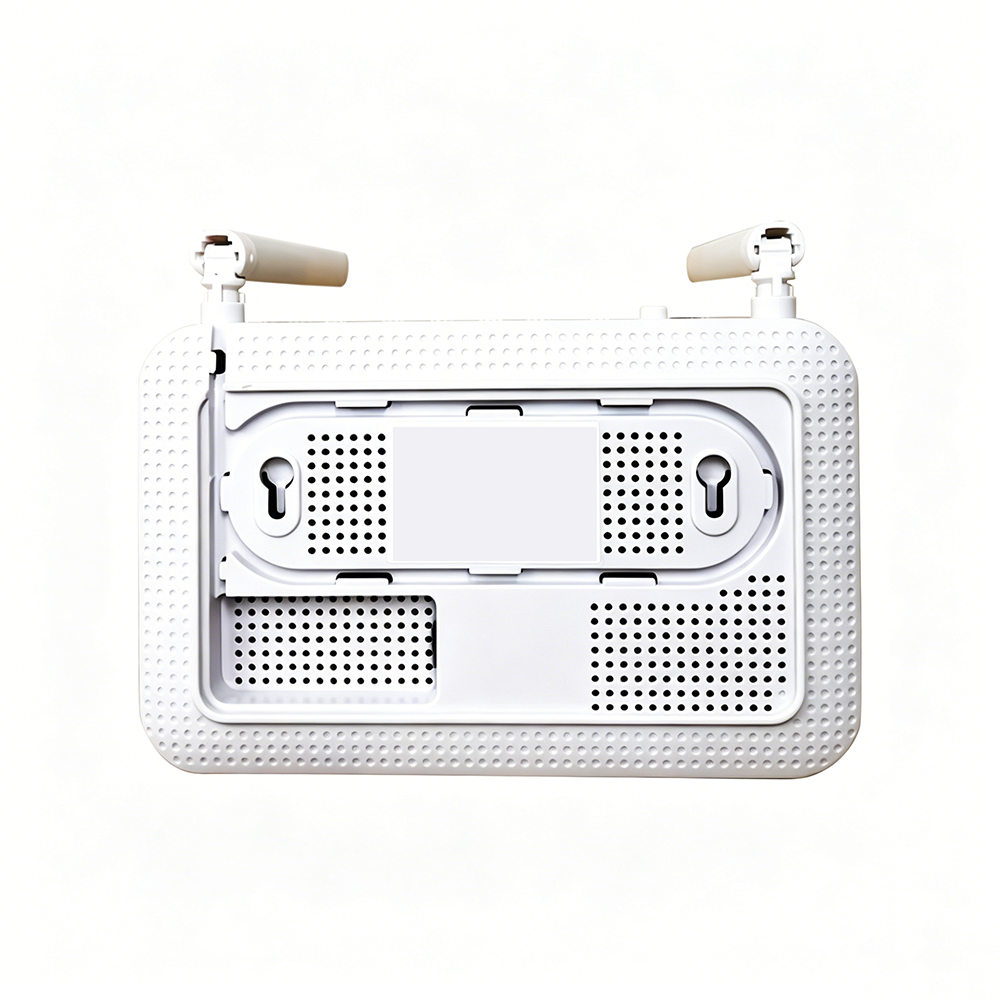

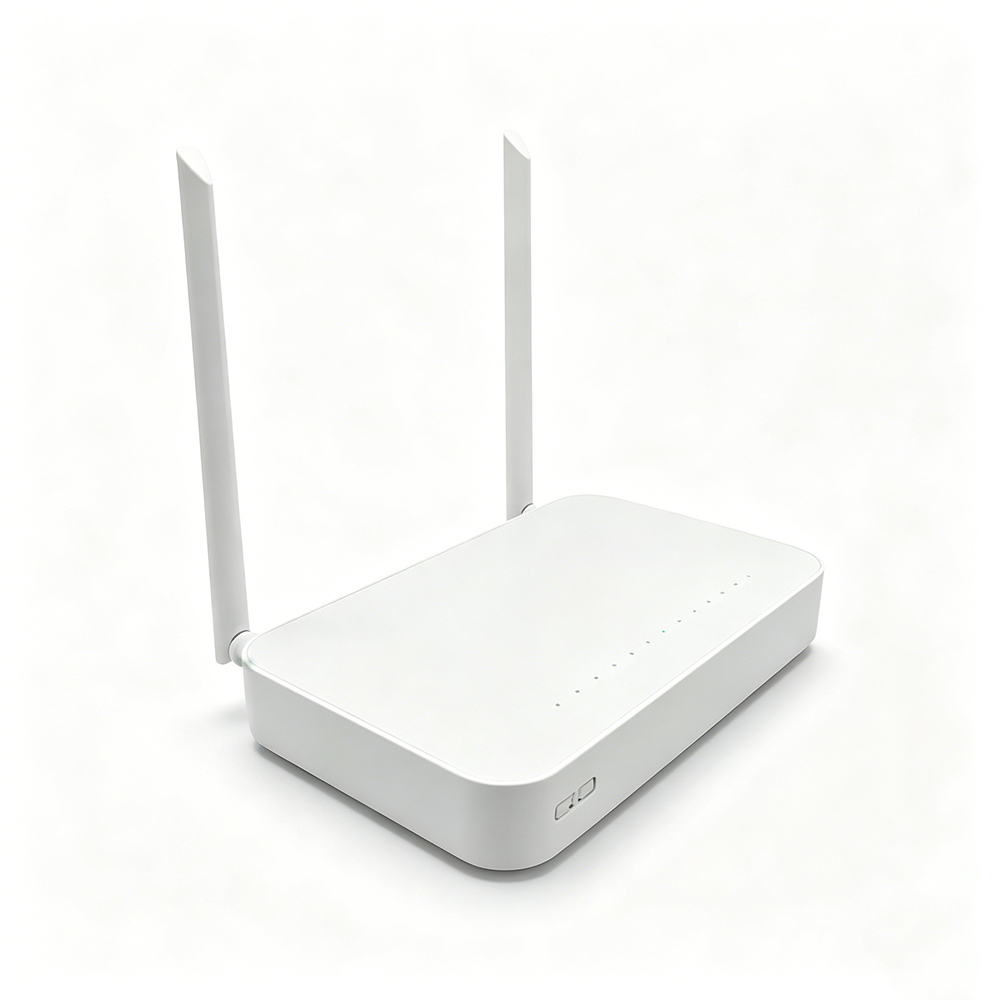

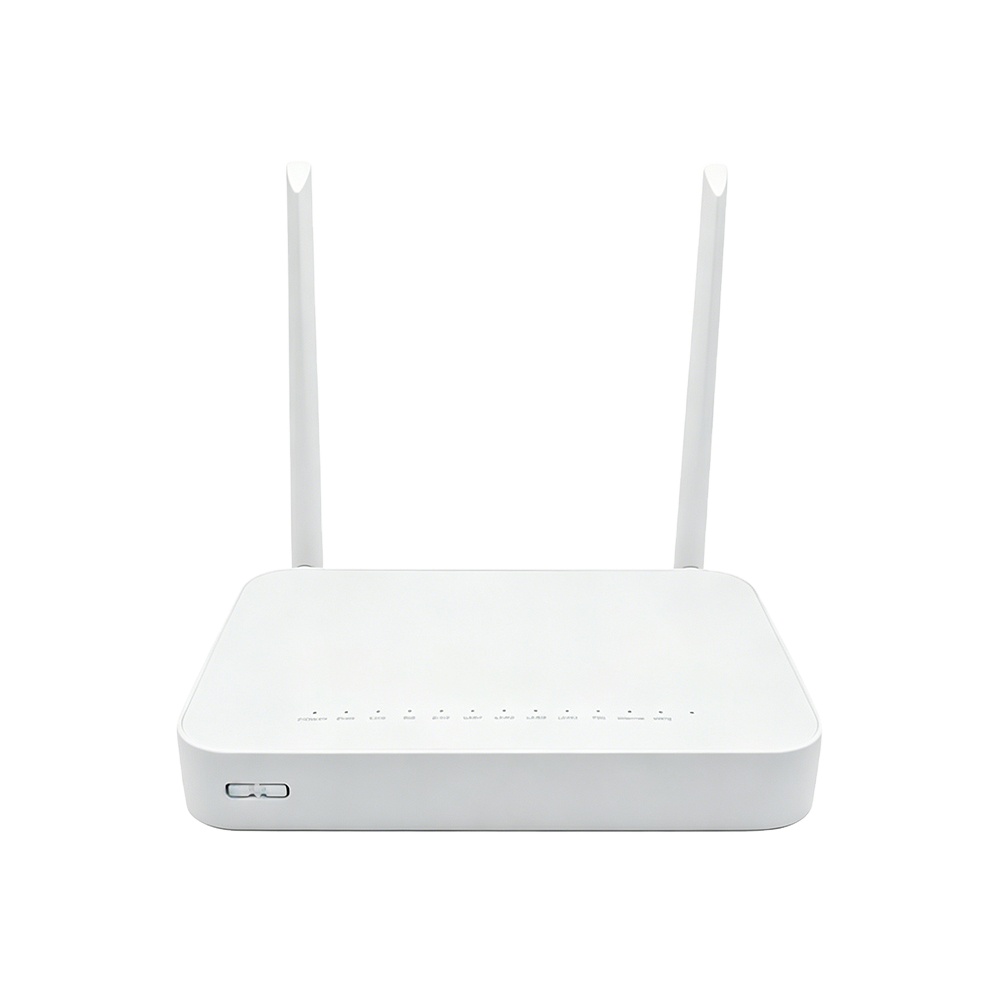

Product Main Image

Product Design

Specification

Model PT939G
Out Port contains 4LAN+1TEL+2USB+WiFi
WIFI signal 2.4G & 5G WiFi
2.4G & 5G WiFi 5dBi
Wireless gain 5db
USB USB2.0
LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
TEL H248/Sip Voice protocol
PPPOE support
Firmware English
Dimension/weight 220mm*160mm*40mm/333g
Fiber port 1 GPON interface, single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/FC-UPC/APC Dual mode/Singal mode
RX sensitivity >-28dBm (1490nm)
DC power 12V 1.5A, external AC-DC power adapter
Button Reset, power,WPS,Wireless
Operation Working temperature: -5- +55℃ working humidity:10-90%(non-condensation)
Storage Storage temperature: -30℃- +60℃ storage humidity: 10-90%(non-condensation)

Order Info

PT939G XPON ONU, 1*xPON + 1*GE RJ45 3*FE RJ45 + 1*RJ11 POTS + 2*USB + 2.4GHz&5GHz Dual-Band Wi-Fi5(2*External 5dBi antennas); External DC 12V/1.5A power adapter;

FAQ

Q1 What is your MOQ request?
A1 Depends on products, different products have different MOQ, pls contact us for more details.
Q2 Do you Support ODM/OEM service?
A2 Yes, we can offer the customization service to you.
Q3 Does your products support other brands?
A3 Yes, all of our products is without lock, support to another brands too.
Q4 Are you the manufacturer or trading company?
A4 We are the manufacturer, we support factory view tour.
Q5 Do you offer free samples?
A5 Yes, for some models we are able to provide the free samples for your testing purpose.
Q6 Are you able to provide the local certificates?
A6 Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
