| Basic Parameters | |
| Ports | 1 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 1 x USB SC/UPC XPON |
| Working environment | Operating temperature: 0ºC to 40ºC Environment humidity: 5% to 95% (noncondensing) |
| Static power consumption | 5.3 W |
| Max. power consumption | 18 W |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz System power supply: 11–14 V DC, 1.5 A |
| WLAN | 2.4GHZ: 802.11n 5GHZ: 802.11ax |
| Indicators | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| GPON Port |
• Class B+ • Receiver sensitivity: –27 dBm to –29 dB • Overload optical power: –8 dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength Blocking Filter (WBF) of G.984.5 • Flexible mapping between the GEM port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA • Type B (single-homing and dual-homing) |
| WLAN Specs |
• IEEE 802.11 b/g/n/ax (2.4G) • IEEE 802.11 a/n/ac/ax (5G) • 2 x 2 MIMO (2.4G) • 2 x 2 MIMO (5G) • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • 2.4G and 5G concurrency • Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G) • Beamforming • Band steering • DL OFDMA • DL MU-MIMO • 1024 QAM • 160 MHz frequency bandwidth • WPA3 |
| Dimensions | 195 mm x 125 mm x 35 mm (length x width x height) |
| Weight | About 400g |

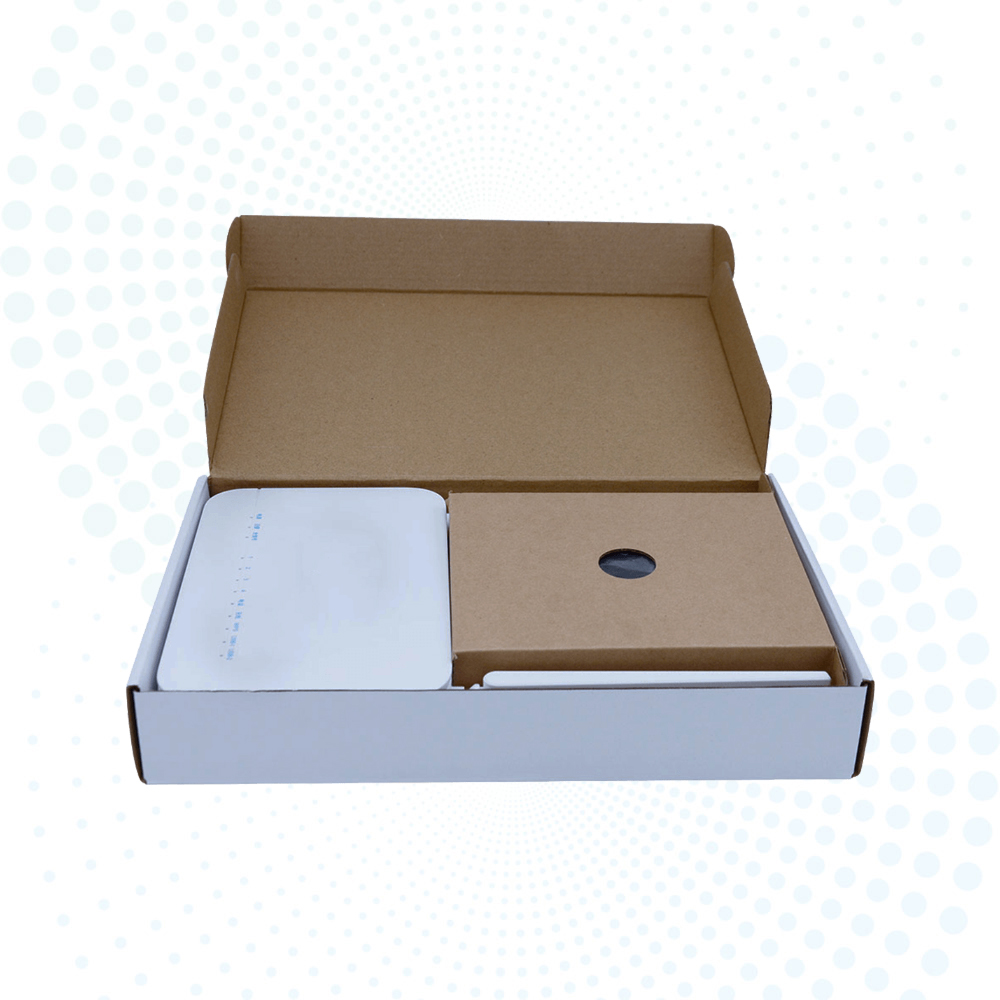

| Description | Accessories Pack |
| GPON ONU, 1*GPON + 4*GE RJ45 + 1*RJ11 POTS + 1*USB+ 2.4GHz & 5GHz Wi-Fi6 (2*External 5dBi antennas); | Power Adapter |
