| Parameter | Specifications Details |
|---|---|
| Ethernet Interface |
•Interface type：1* RJ45
•Interface parameters：10/100/1000BASE-T
|
| Buttons | Reset Button |
| LED Indicators | POWER/PON/LOS/LAN1/RF/OPT |
| PON Interface |
•Interface Type: SC/APC, CLASS B+
•Transmission distance: 0～20km
•Working wavelength: Up 1310nm / Down 1490nm / CATV 1550nm
•RX Optical power sensitivity: -27dBm
•Transmission rate: GPON (Up 1.244Gbps / Down 2.488Gbps), EPON (Up 1.244Gbps / Down 1.244Gbps)
|
| Power Supply | DC 12V/1A |
| Power Consumption | <18W |
| Working Temperature | -20℃ ～ +50℃ |
| Environment Humidity | 5% ~ 95% (non-condensing) |
| Dimension | 157mm x 86mm x 28mm (L×W×H) |
| Net Weight | 0.15Kg (without package) |
| Feature | Capabilities |
|---|---|
| PON Mode | XPON Dual Mode |
| Uplink Mode |
•Bridging and Routing Mode
•Highly compatible with mainstream OLTs
|
| CATV | Support CATV Remote management |
| Standard |
•Support CTC OAM 2.1 and 3.0
•Support ITU-T G.984.x OMCI
|
| Layer 2 Features |
•802.1D & 802.1ad bridging
•802.1p CoS
•802.1Q VLAN
|
| Layer 3 Features |
•IPv4
•DHCP Client/Server
•PPPoE, NAT, DMZ, DDNS
|
| Multicast | IGMP v2/v3, IGMP snooping |
| Security & Firewall |
•Prevent Rogue ONU
•DDOS protection, Filtering Based on ACL/MAC/URL
|
| O&M | Support EMS / WEB / Telnet / CLI |
| Part Number | Description | Accessories Pack |
|---|---|---|

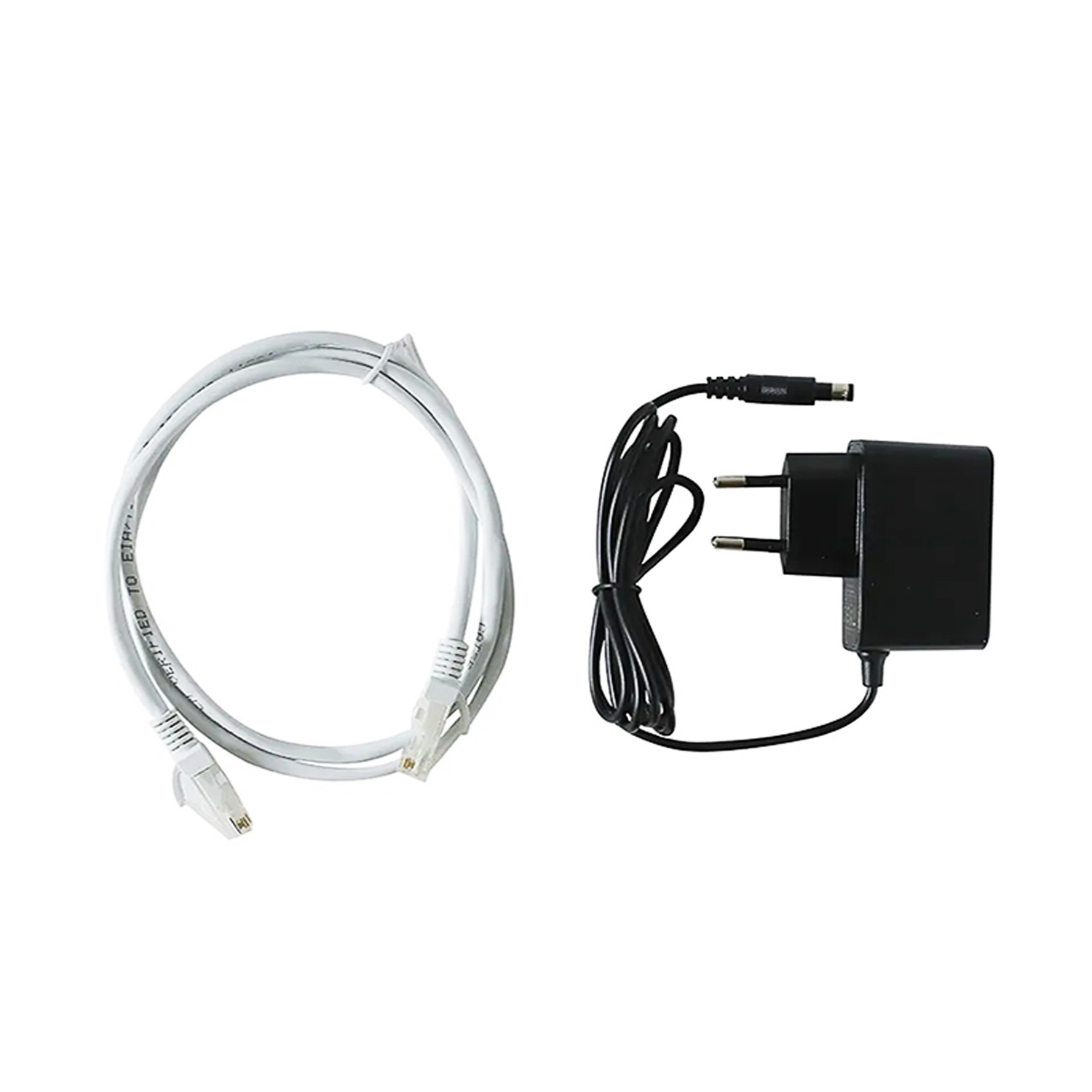

| HG1011 | 1*XPON + 1*GE + CATV | AC-DC Power Adapter DC12V/1A |
