6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V
6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V
6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V
6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V
6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V
1 / 5
6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V
6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V
6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V
6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V
6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V

6*100Base-Fx to 2*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter DC12V

Send Inquiry

Product Description

Product Design Banner
Product Design
Product Design Left Product Design Right
6 fiber port with 2*10/100Mbps RJ45 port

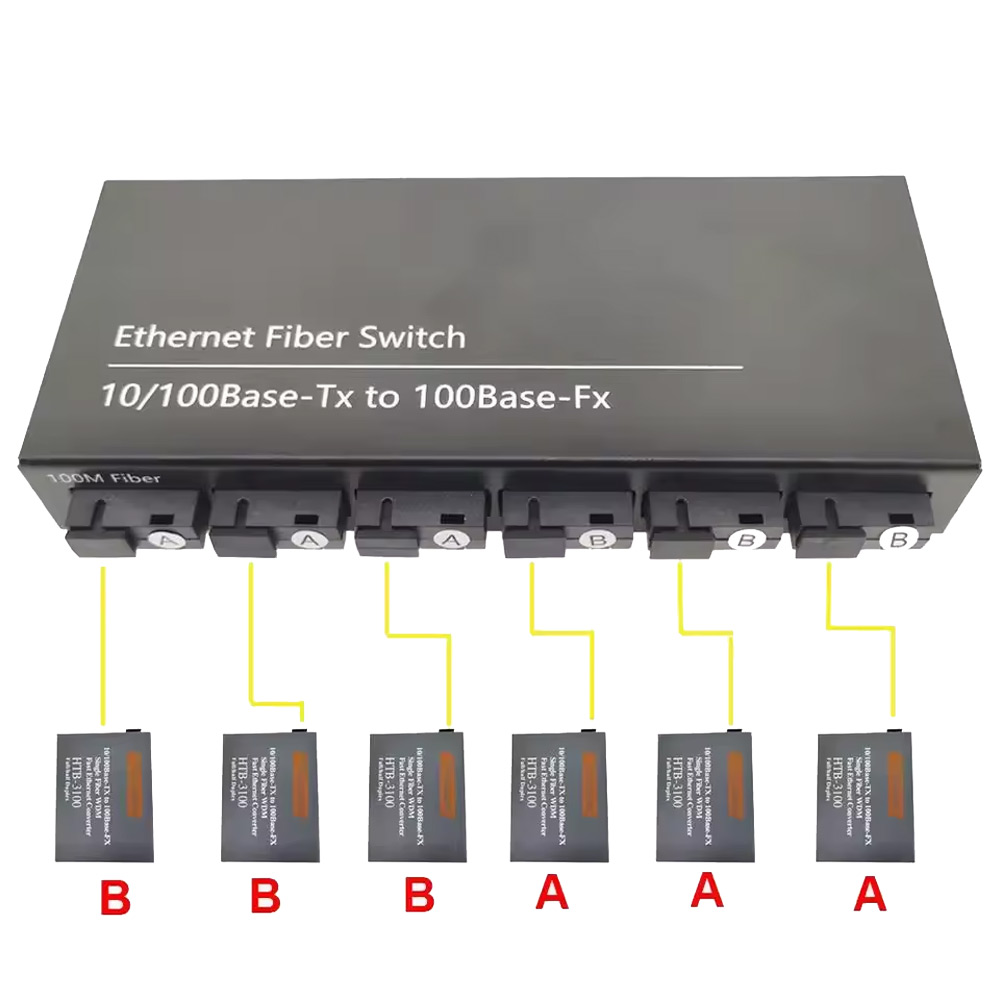

Point-to-multipoint high-speed forwarding

Feature Graphic
Plug-and-play, no need for any configuration
Dimensions Graphic
Product dimensions and interface definitions

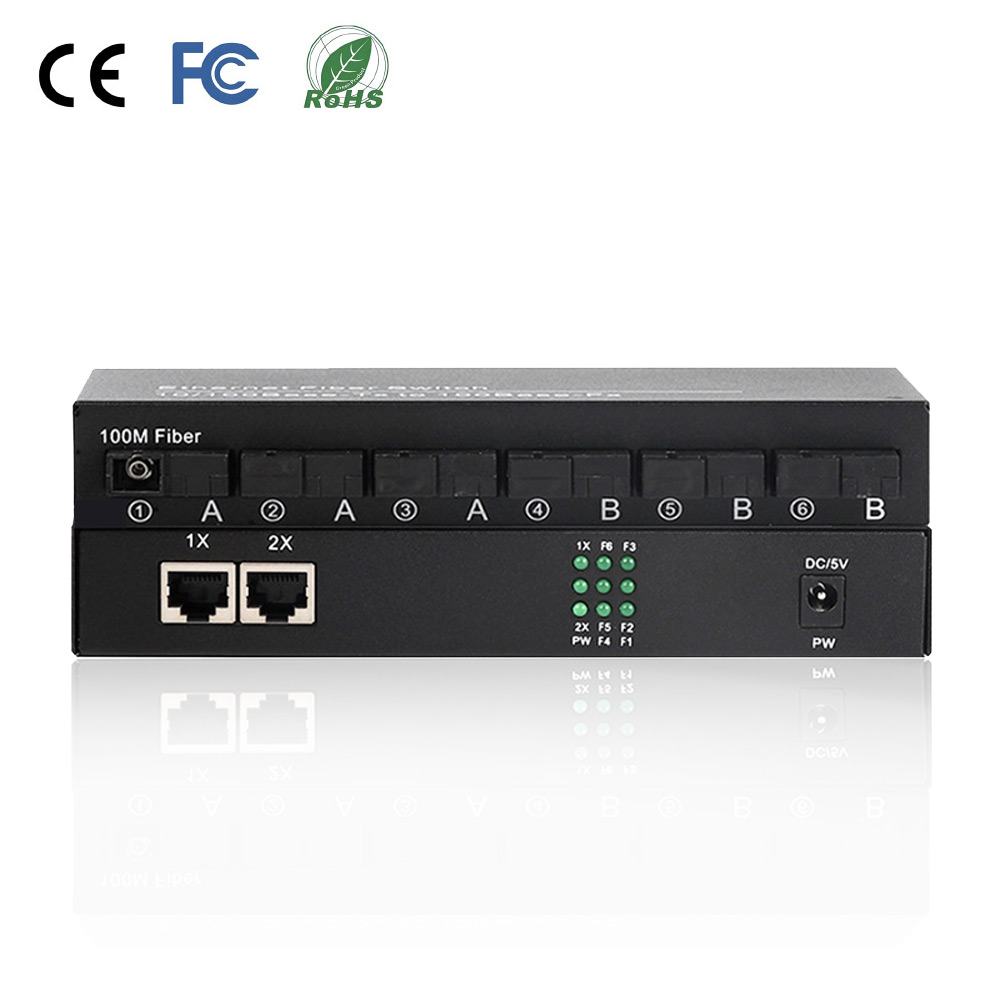

Interface Definitions
Specification
Hardware Specifications
Standard ● IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface ● 6*155Mbps SC optical fiber interface
● 2*RJ45 10/100Mbps
Distance ● 100m @CTE5
● 20km @SMF
Wavelength ● A: Tx1310nm / Rx1550nm
● B: Tx1550nm / Rx1310nm
Transmission Media ● Cable: CTE5 or higher UTP and STP
● Optical Fiber: 9/125um single-mode optical fiber
Optical Parameter ● Average emission power: -9 to -3 dBm
● Receiving sensitivity: -22 dBm
Power ● DC12V / 2A
Size ● 180mm * 75mm * 26mm
Environment ● Operating temperature: -5℃ to 60℃
● Operating humidity: 10% to 90% RH (non-condensing)
● Storage temperature: -40℃ to 70℃
● Storage humidity: 5% to 90% RH (non-condensing)
Order Info
RD-FE602 Fiber Switch 10/100MB 6*SC + 2*RJ45 AAABBB
Profile
Profile View
FAQ
Who Are We?
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team serving global clients.
How Do We Guarantee Quality?
  • Pre-production samples are prepared before mass production.
  • 100% final inspection is performed before shipment.
What Can You Buy From Us?
FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
Why Choose Us?
We are a top-tier optical communication supplier. Our core focus centers on PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added services for partners worldwide.
What Services Can We Provide?
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more.
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
  • Languages Spoken: English, Chinese, Spanish, French, Russian, and more.
What is the Transmission Range of the RD-FE602?
The transmission range reaches up to 100 meters over category 5 Ethernet cable (CTE5) and up to 20 kilometers using Single-Mode Fiber (SMF).
