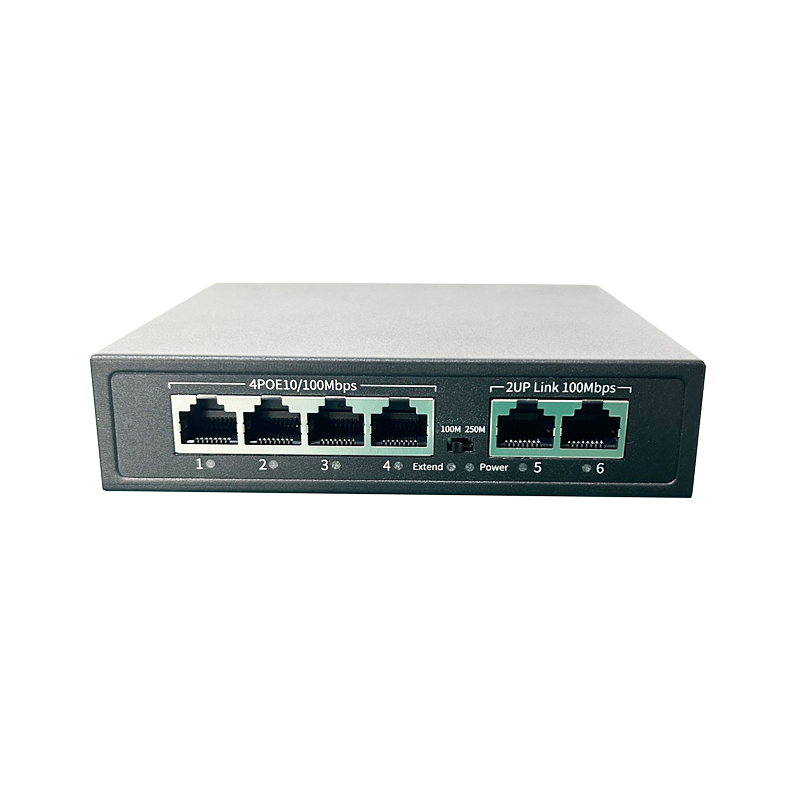

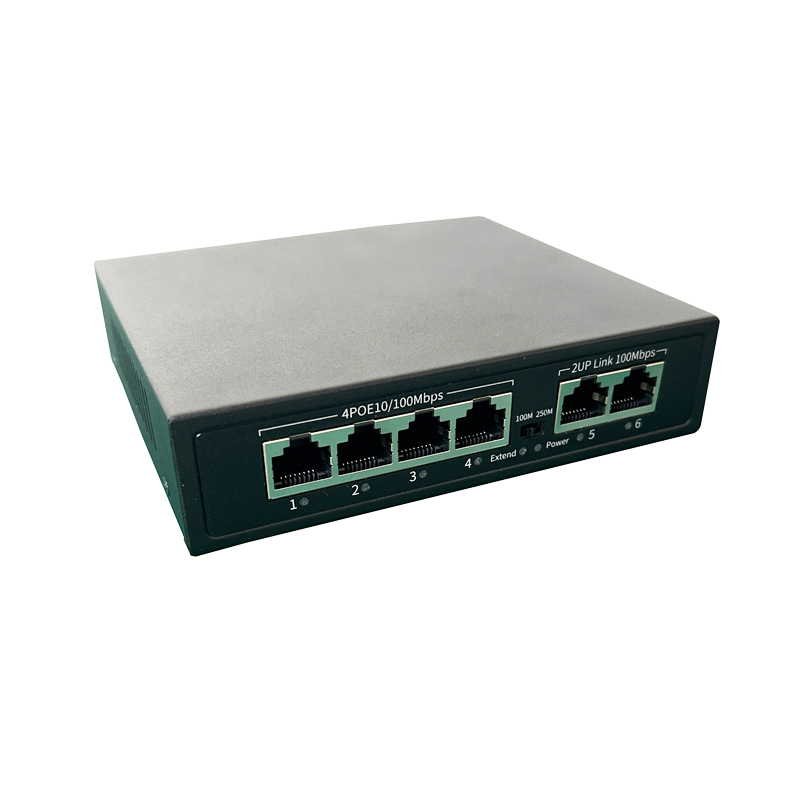

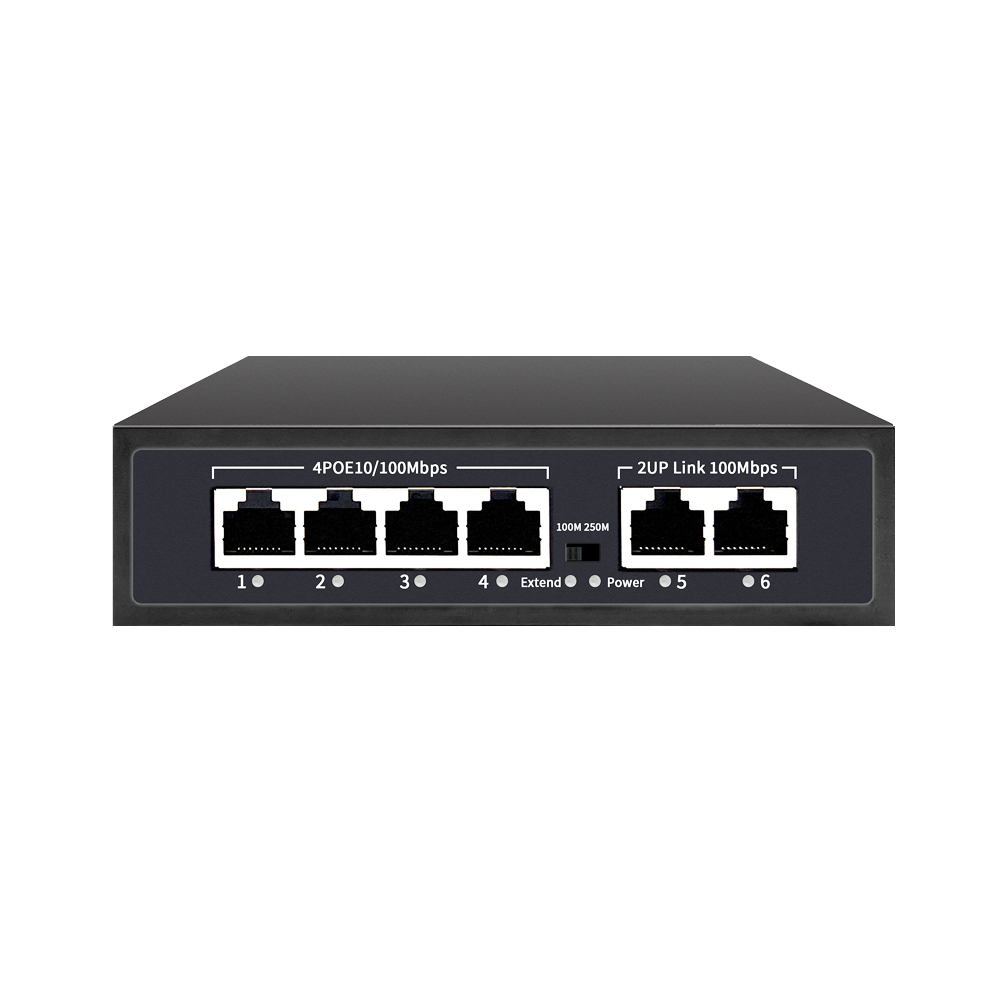

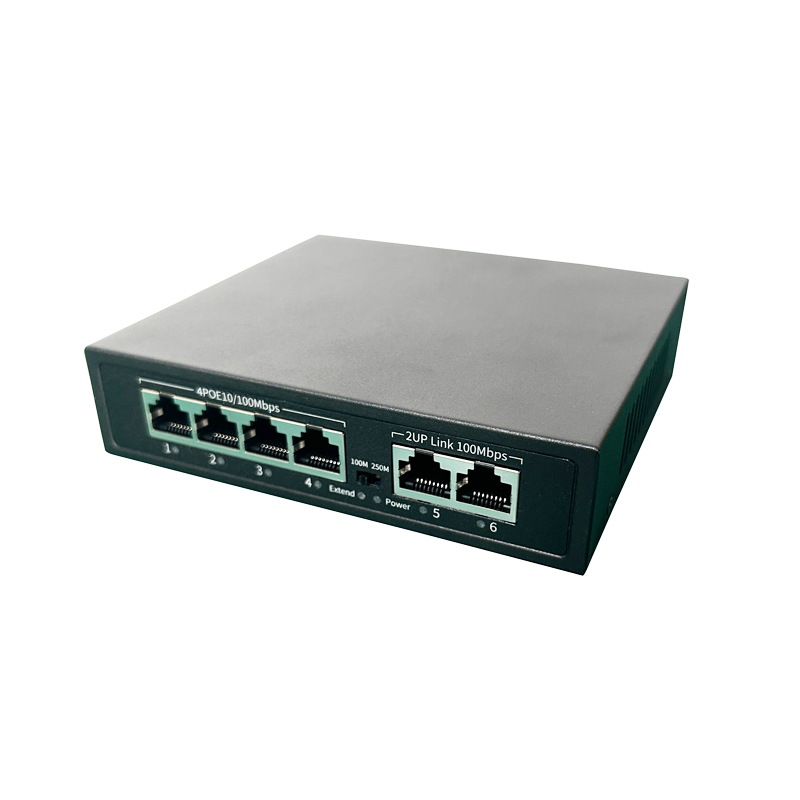

Factory 6 Port Unmanaged Mini POE Switch 4x100M PoE Ports 2x100Mbps Uplink Mini POE Switch for Cctv

Send Inquiry

Product Description

Specifications

Technical Specifications
Model	RD-M4P2U65
Chip Solutions	IP178G+EM1604
Standards/Protocols	IEEE 802.1q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3af/at
Network Media	10BASE-T: Unshielded Category 3, 4, 5 twisted pair (up to 100m) 100BASE-TX/100BASE-T: Unshielded Category 5, Ultra Category 5 or above twisted pair (max. 100m)
Interfaces	4 10/100M RJ45 ports (Auto Negotiation/Auto MDI/MDIX) 2 10/100M UP-LINK ports (Auto Negotiation/Auto MDI/MDIX)
Cascade	UP-LINK port only
Forwarding Mode	Store-and-forward
MAC Address Capacity	1K
Switching Capacity	1.2Gbps
Packet Forwarding Rate	0.89Mpps
Packet Cache	448Kbits
Jumbo frames	1552/1336 bytes
Power Supply	AC: 100-240V 50/60Hz Built-in DC: 52V, 65W
Power supply pins	Non-standard 2-pair wire POE power supply: 4/5 (+), 7/8 (-) (fuse direct power forced output)
Static power consumption	Maximum: 1.2W (220V/50Hz)
Operating Temperature	Operating Temperature: -10°C ~ 70°C (32°F ~ 127°F) Storage temperature: -40°C ~ 85°C (-97°F ~ 142°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing

Profile Overview

Frequently Asked Questions

Q1 What is your MOQ request?

Depends on products, different products have different MOQ, please contact our sales for more details.

Q2 Do you Support ODM/OEM service?

Yes, we can offer the customization service to you.

Q3 Does your products support other brands?

Yes, all of our products is without lock, support to another brands too.

Q4 Are you the manufacturer or trading company?

We are the manufacturer, we support factory view tour.

Q5 Do you offer free samples?

Yes, for some models we are able to provide the free samples for your testing purpose.

Q6 Are you able to provide the local certificates?

Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
