Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Part No.
SFP-GE-BX-D
Vendor Name
Compatible
Form Factor
SFP
Max. Data Rate
1.25Gbps
Wavelength
1550nm-TX/1310nm-RX
Max. Cable Distance
3km
Connector
Simplex LC
Optical Components
DFB BIDI
Media
SMF
DOM Support
Yes
TX Power
-9 ~ -3dBm
Receiver Sensitivity
< -20dBm
Commercial Temp Range
0 to 70°C (32 to 158°F)
Protocols
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Newly-Made, Quality Guaranteed
Tested in Host Devices for Proven Interoperability
Comprehensive Testing Increases Reliability
Order Info
Model
Introduction

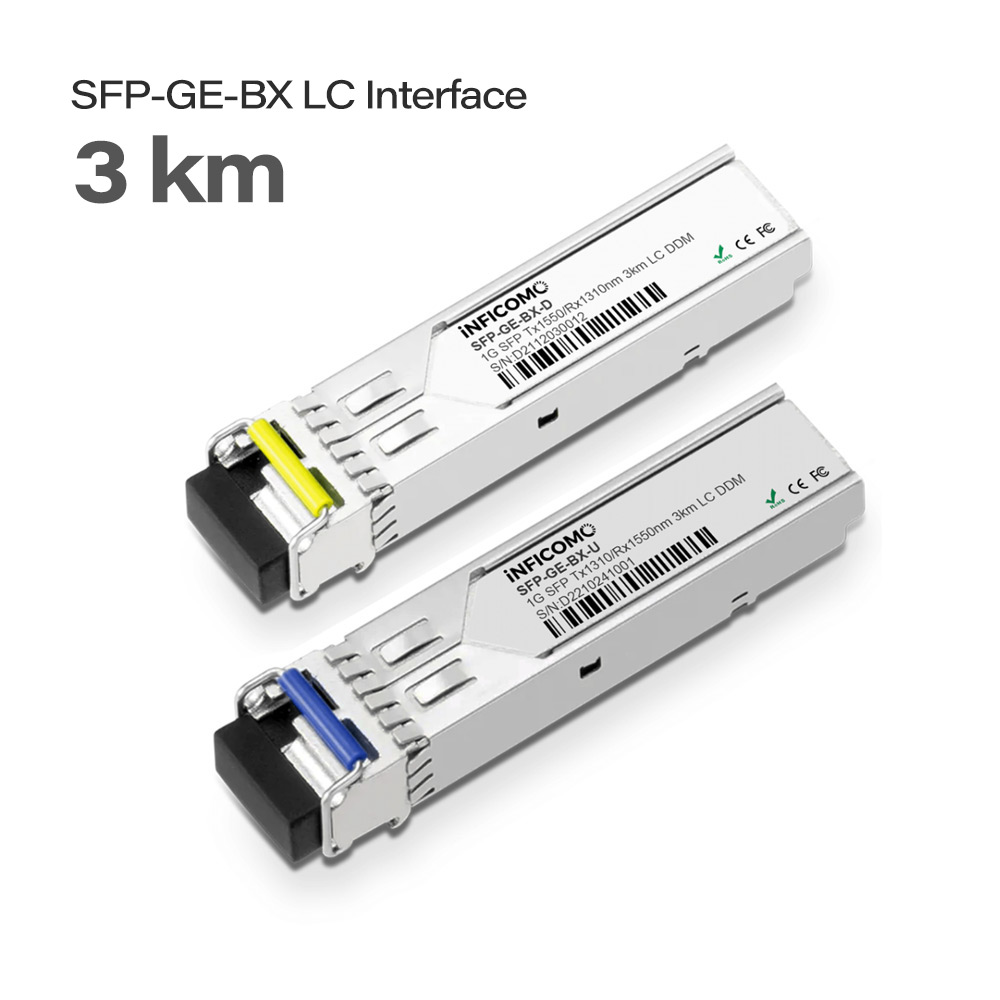

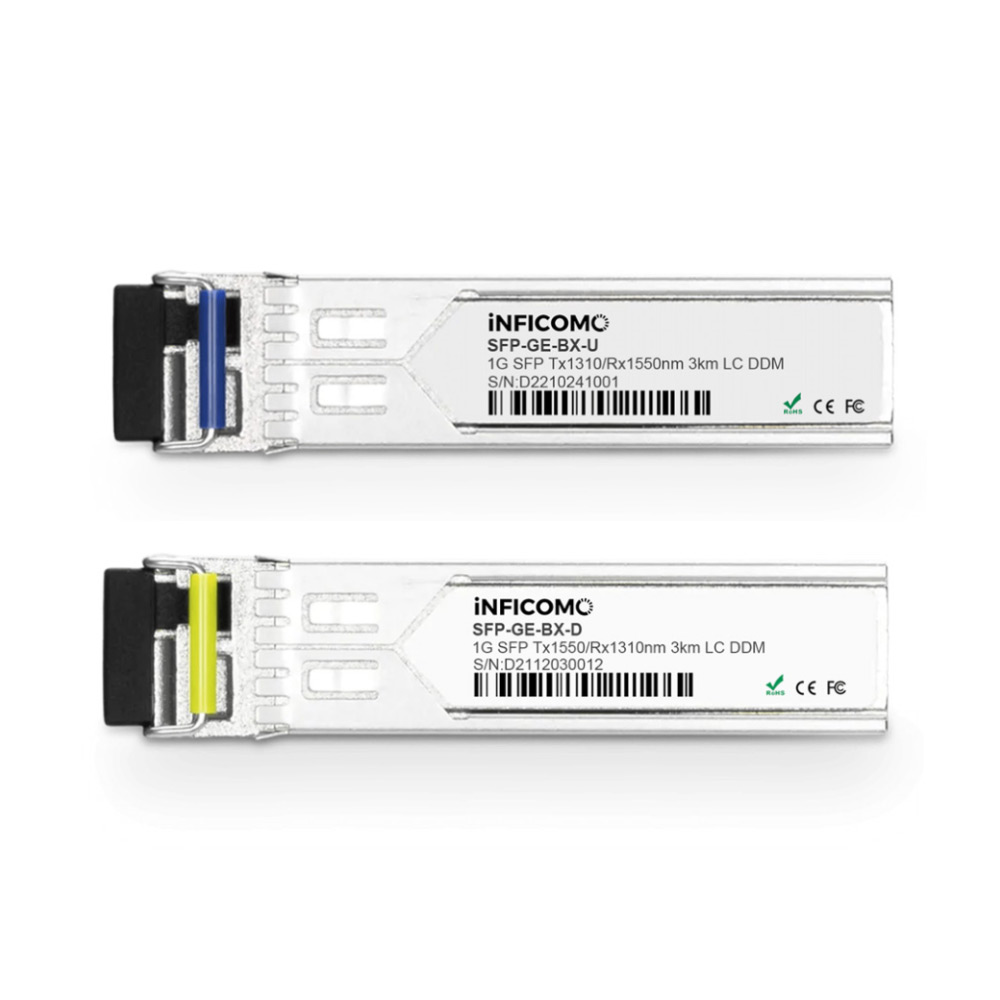

SFP-GE-BX-U
1G SFP BiDi TX1310/RX1550nm 3km LC DDM
SFP-GE-BX-D
1G SFP BiDi TX1550/RX1310nm 3km LC DDM
Frequently Asked Questions (FAQ)
1. What is the difference between SFP-GE-BX-U and SFP-GE-BX-D?
SFP-GE-BX-U transmits at 1310nm and receives at 1550nm, while SFP-GE-BX-D transmits at 1550nm and receives at 1310nm. They must be used together as a matching pair to establish a functional bidirectional single-fiber communication link.
2. How is the quality of these SFP modules guaranteed?
Quality is secured through strict pre-production sample inspections before mass manufacturing and a 100% final testing procedure in real host devices prior to shipment, ensuring reliable performance and compatibility.
3. Do these modules support DOM/DDM?
Yes, these transceivers feature Digital Diagnostics Monitoring (DOM/DDM) support, enabling real-time parameters monitoring such as TX/RX power, temperature, voltage, and bias current.
4. What protocols are compatible with these modules?
The transceivers are MSA compliant and support multiple standard protocols, including Fast Ethernet, Gigabit Ethernet, and Gigabit Fibre Channel.
5. What cable type and distance do they support?
These modules are designed for Single-Mode Fiber (SMF) and can support transmission distances up to 3km via Simplex LC connectors.
6. Why choose BiDi SFP over standard dual-fiber SFPs?
BiDi (Bidirectional) SFP modules transmit and receive data over a single fiber optical strand. This effectively doubles your fiber capacity and significantly reduces cabling system infrastructure costs.
