SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches
SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches
SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches
SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches
SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches
1 / 5
SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches
SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches
SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches
SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches
SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches

SFP 1.25G LC Single Mode BiDi Single Fiber 20KM Transceiver with DDM Compatible with Major Switches

Send Inquiry

Product Description

SFP Transceiver
📋 Specification

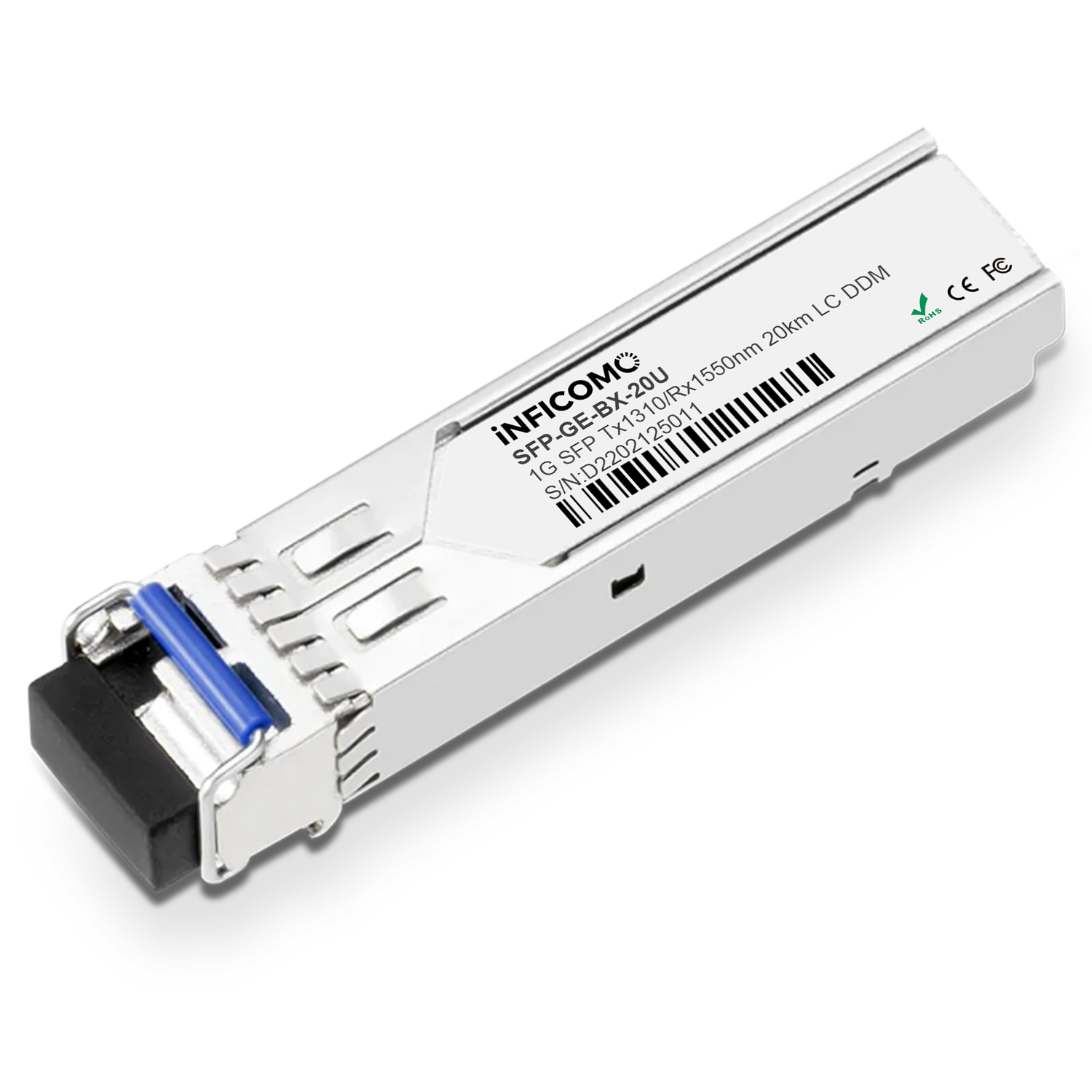

SFP-GE-BX-20U
Part No.SFP-GE-BX-20U
Form FactorSFP
Max. Data Rate1.25Gbps
Wavelength1310nm-TX/1550nm-RX
Max. Cable Distance20km
ConnectorSimplex LC
Optical ComponentsFP BIDI
MediaSMF
DOM SupportYes
TX Power-9~-3dBm
Receiver Sensitivity<-20dBm
Temperature Range0 to 70°C (32 to 158°F)
ProtocolsFast & Gigabit Ethernet, Fibre Channel, MSA Compliant

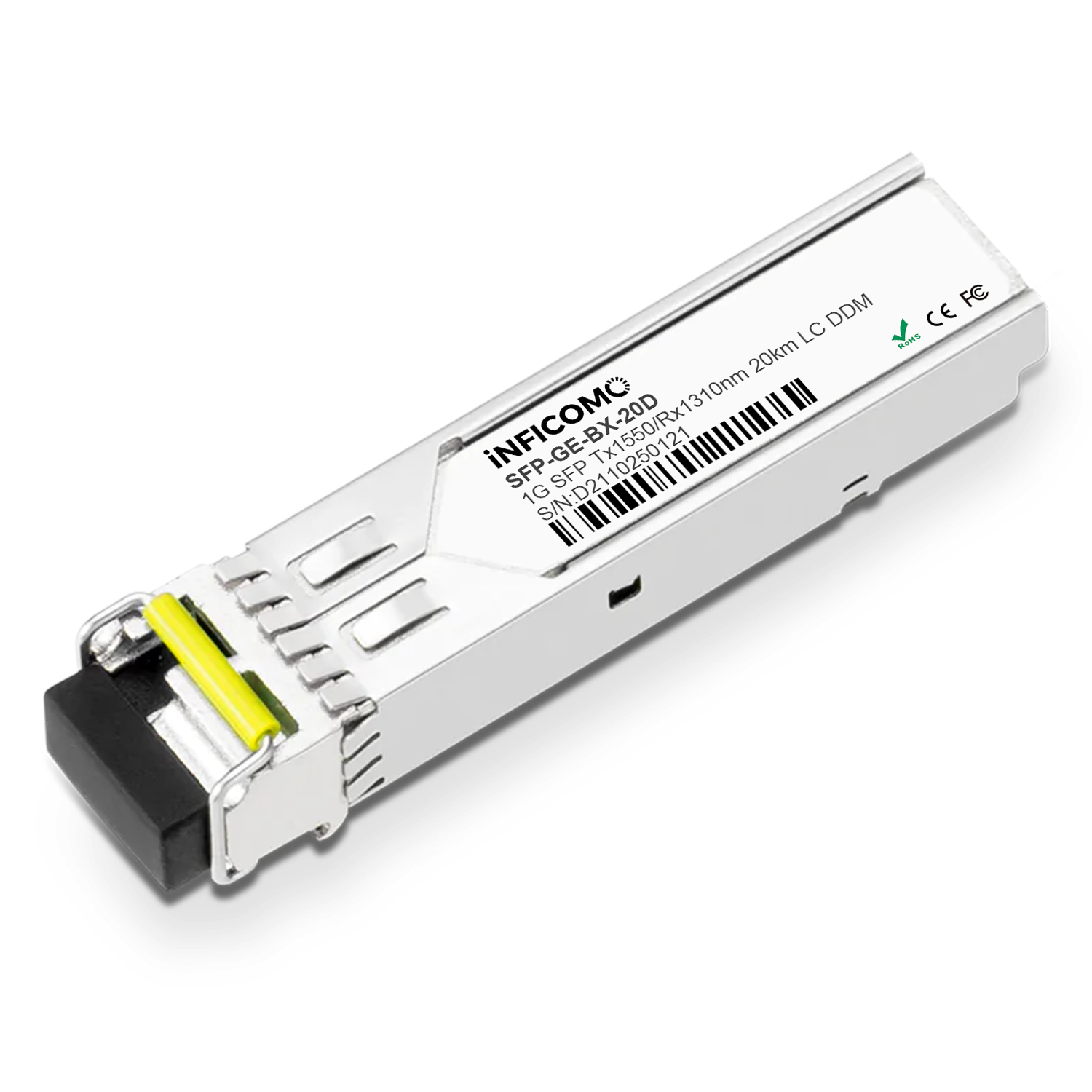

SFP-GE-BX-20D
Part No.SFP-GE-BX-20D
Form FactorSFP
Max. Data Rate1.25Gbps
Wavelength1550nm-TX/1310nm-RX
Max. Cable Distance20km
ConnectorSimplex LC
Optical ComponentsDFB BIDI
MediaSMF
DOM SupportYes
TX Power-9~-3dBm
Receiver Sensitivity<-20dBm
Temperature Range0 to 70°C (32 to 158°F)
ProtocolsFast & Gigabit Ethernet, Fibre Channel, MSA Compliant
✨ Quality & Reliability
Newly-Made, Quality Guaranteed
Newly-Made, Quality Guaranteed
Tested in Host Devices for Proven Interoperability
Tested in Host Devices for Proven Interoperability
Comprehensive Testing Increases Reliability
Comprehensive Testing Increases Reliability
📦 Order Info
Model Introduction
SFP-GE-BX-20U 1G SFP BiDi TX1310/RX1550nm 20km LC DDM
SFP-GE-BX-20D 1G SFP BiDi TX1550/RX1310nm 20km LC DDM
❓ FAQ
QCan you do OEM?
Yes, we can do OEM products. It's no problem.
QHow is quality control managed?
Every single optic module is individually tested in our test center, and also tested for compatibility on a variety of different network equipments.
QCan I get a sample first?
Yes, we can provide samples for you to check the quality.
QWhat are the payment terms?
We accept T/T, Western Union, and online trade orders.
QWhat is the lead time?
For standard orders, we maintain stock and can ship within approximately 3 days after receiving payment. For large quantities and special products, please verify the lead time with our sales team.
QHow are the goods shipped and how long does delivery take?
We usually ship by DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive.
