High transmission rate, long distance, strong anti-interference capability

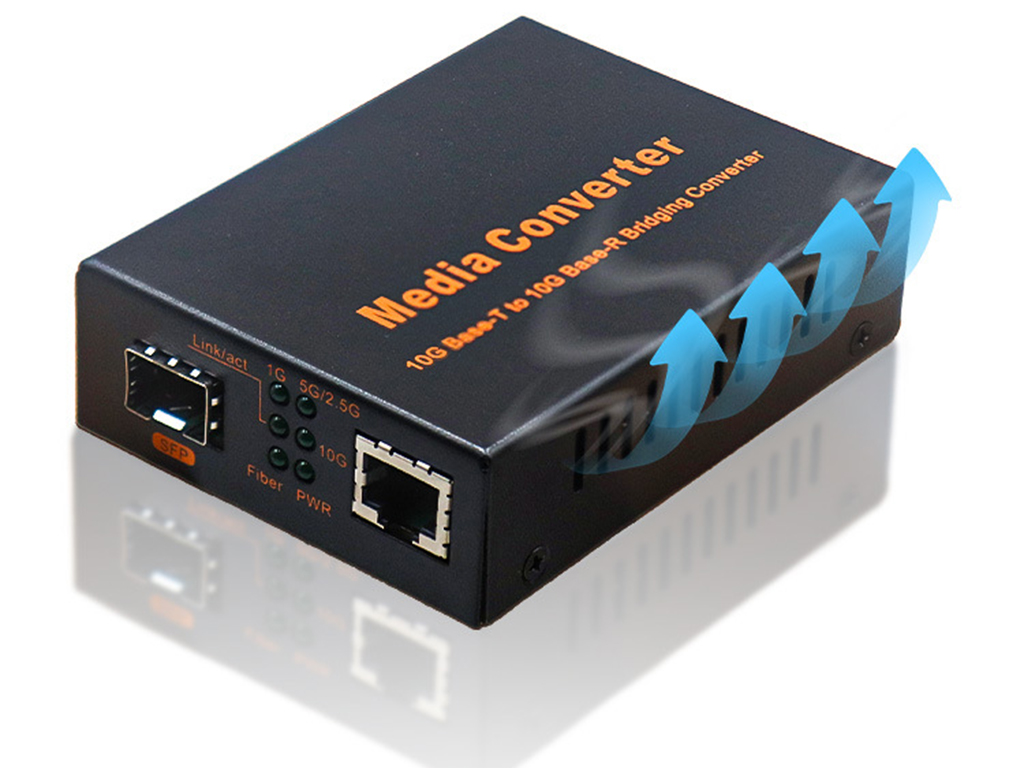

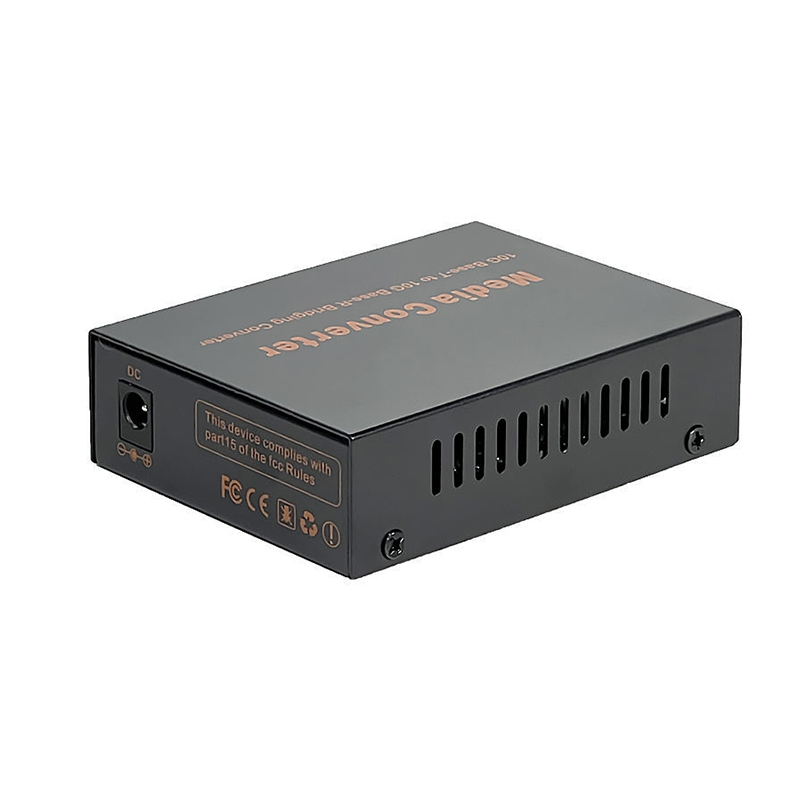

Using thickened metal plates and convection design
Distributed ventilation, heat-resistant and with strong heat dissipation capability

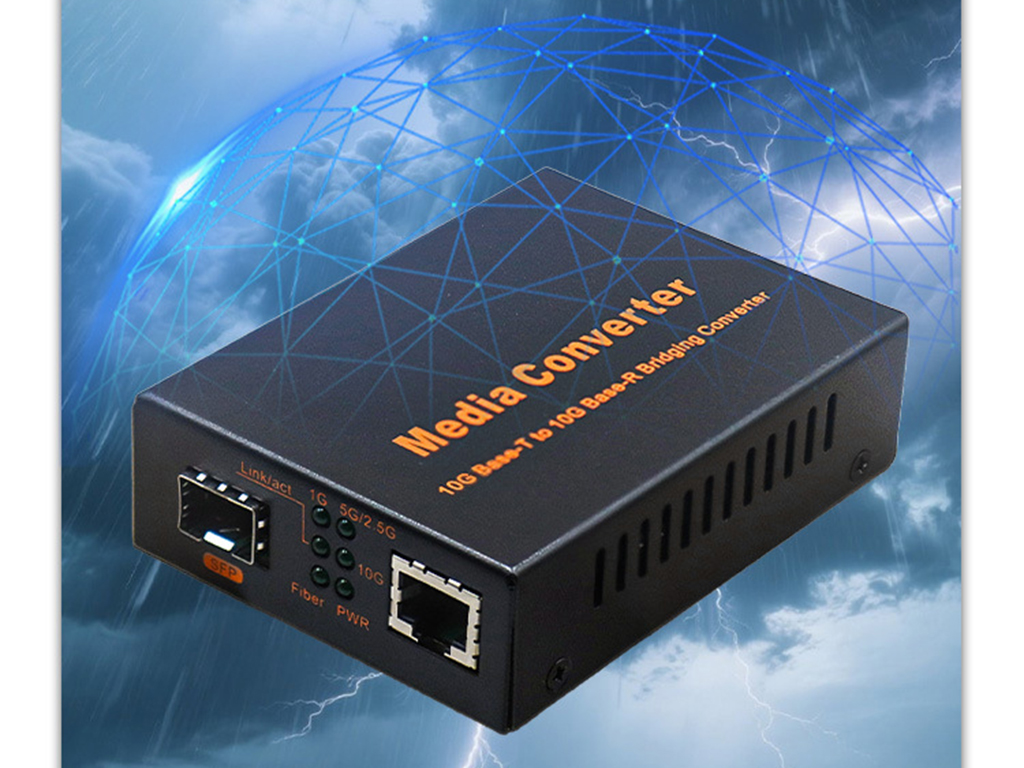

All-metal ventilation housing, distributed convection cooling, resistant to cold and heat, capable of stable operation in harsh environments ranging from -20°C to +60°C.
Stable transmission, safe and reliable, meeting the requirements for long-distance transmission.

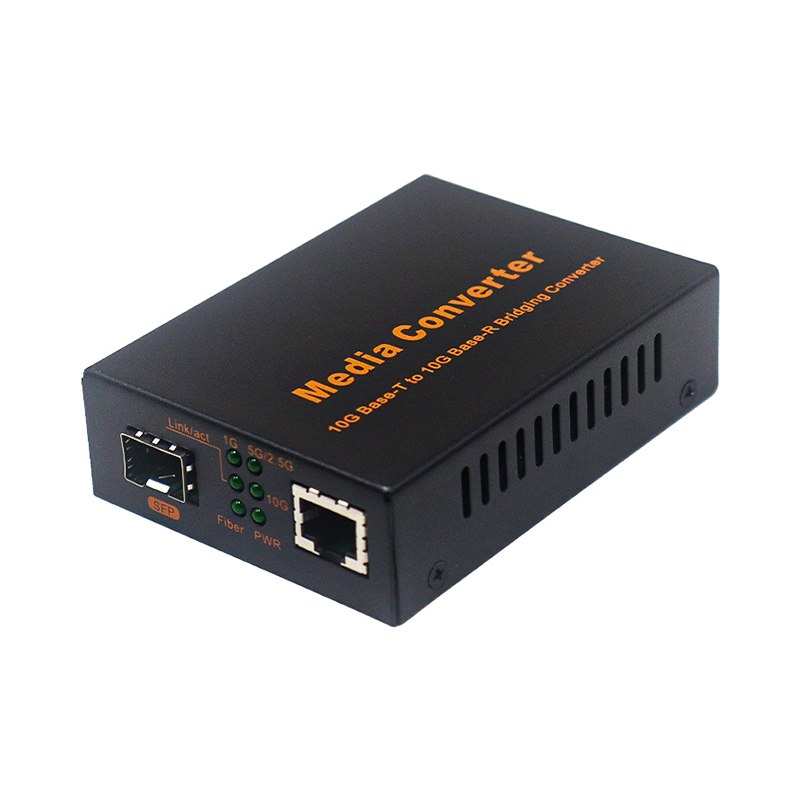

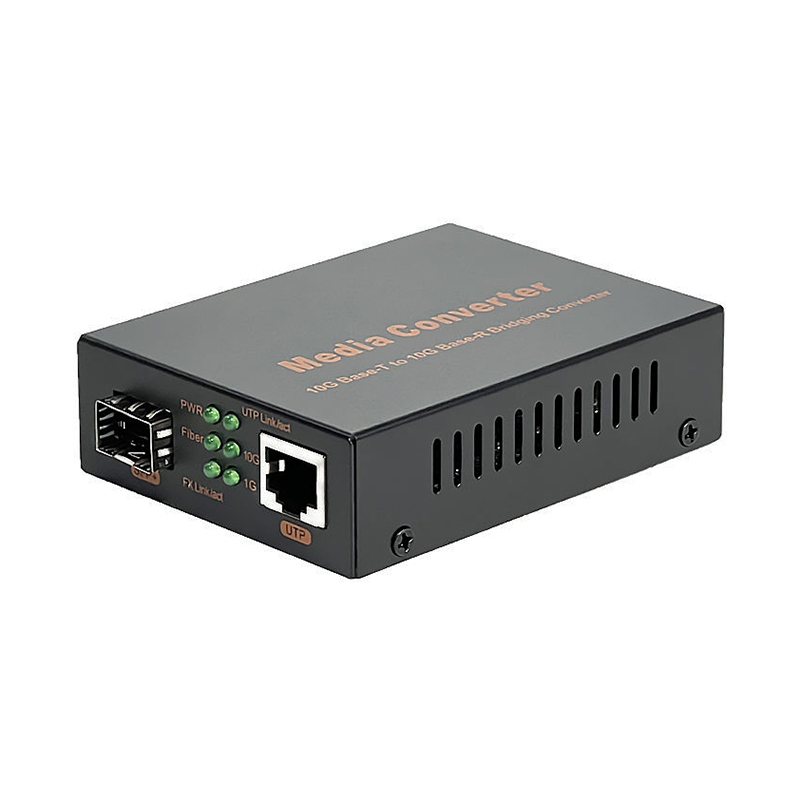

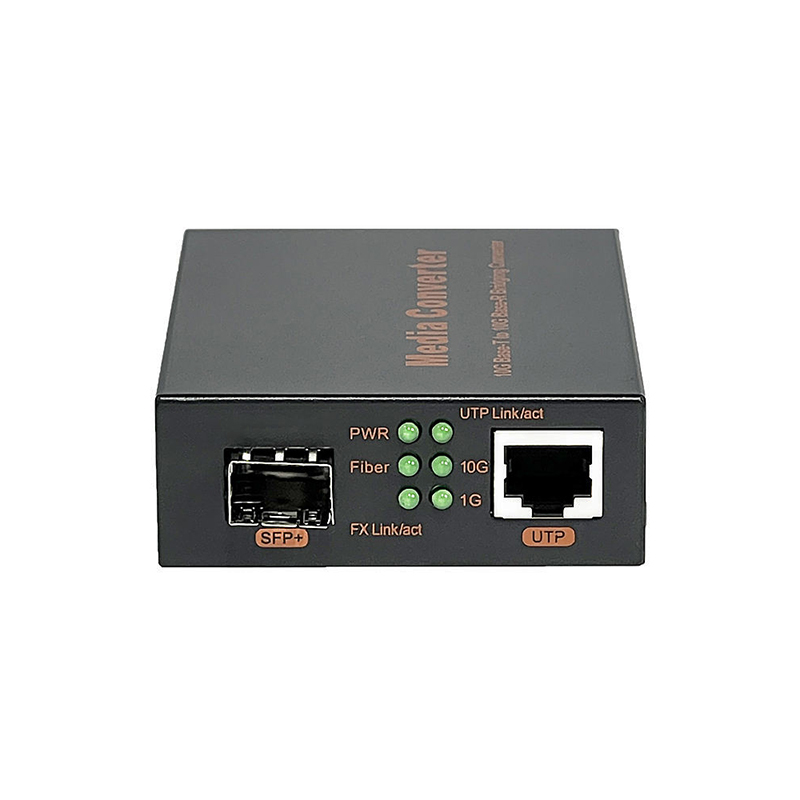

| 10G Base-T to 10G Base-R Bridging Fiber Media Converter | ||
|---|---|---|
| Protocols | IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR) | |
| Access Type | 10G LAN | |

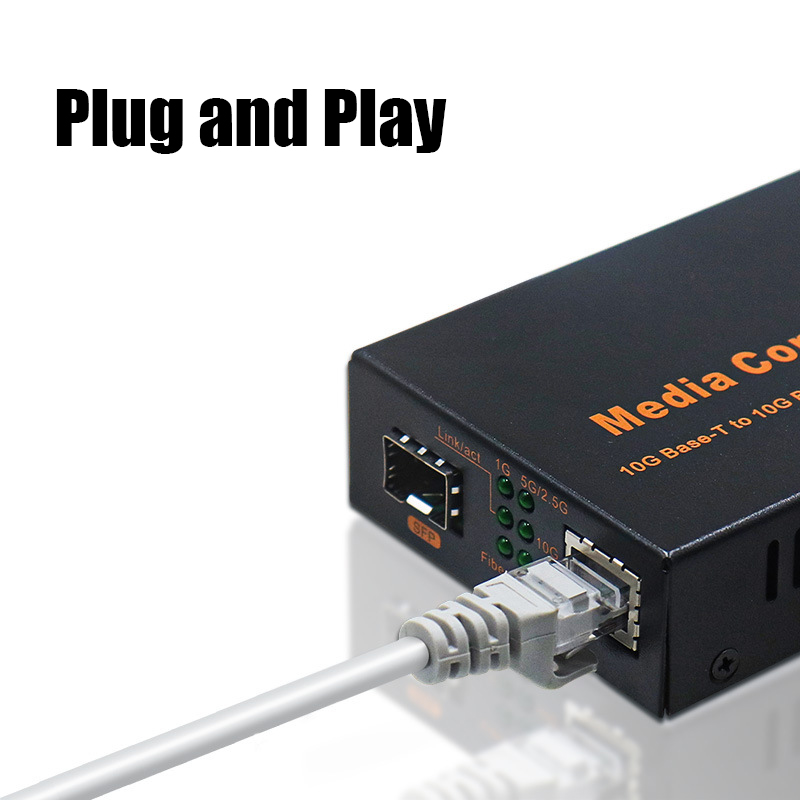

| Interface Type | RJ45 To/From SFP+ | |
| Transmission Distance | XFP/SFP+ module | Up to 80Km |
| 10Gbase-T | 100meters Cat .6a cable | |
| Maximum Packet Forwarding Rate | 14,880,950/S | |
| Network Management Information | Card type information | |
| XFP/SFP+ fiber module detection | ||
| XFP/SFP+ fiber module DMI function(Temperature, Voltage, Optical power) | ||
| Link status detector | ||
| Enable/Disabled Loopback test function | ||
| UTP cable length detection ( only RJ45 interface ) | ||
| Remote card's status monitor ( only in pairs ) | ||
| Power Requirement | Rack-mountable | AC 85 ~ 220V OR DC -48V |
| Standalone | AC 220V OR DC -48V | |
| Power consumption | ≤9W | |
| Work Environment | Operating Temp | 0~ 50 °C |
| Storage Temp | -10~ 70 °C | |
| Humidity | 5%~90% ( non-condensing ) | |
| Dimension | Card | 11.5mm (W) × 78mm ( D) |
| Standalone | 156mm ( W ) × 128mm ( D ) × 32mm ( H) | |
| Model | Introduction | Function |
|---|---|---|

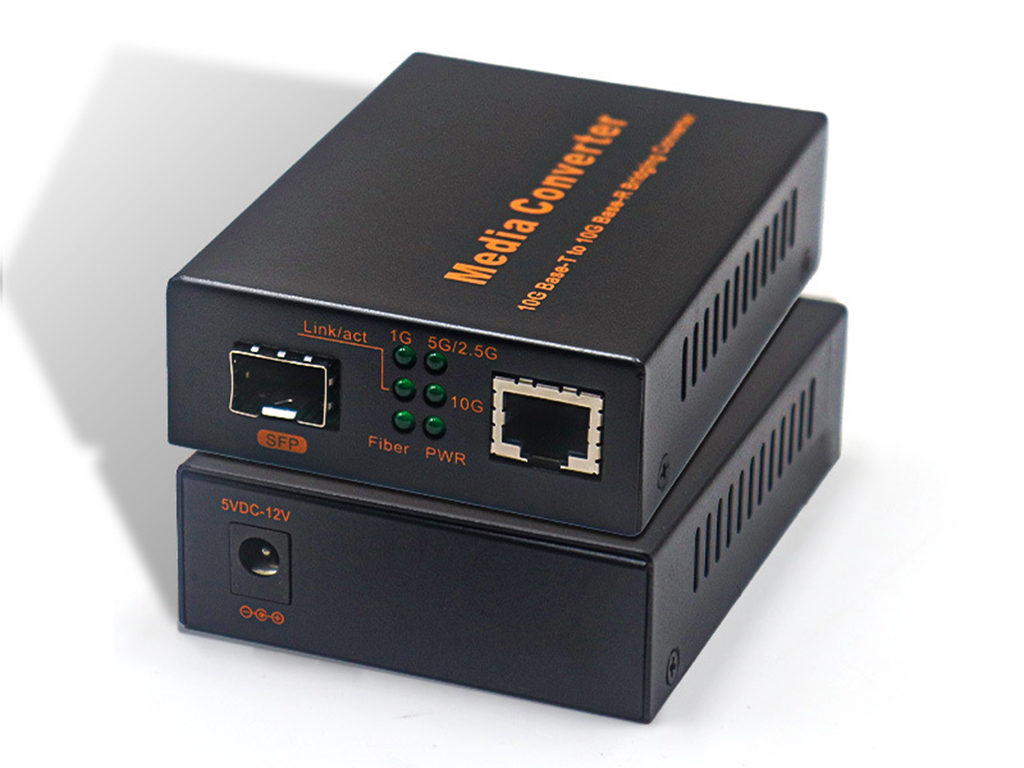

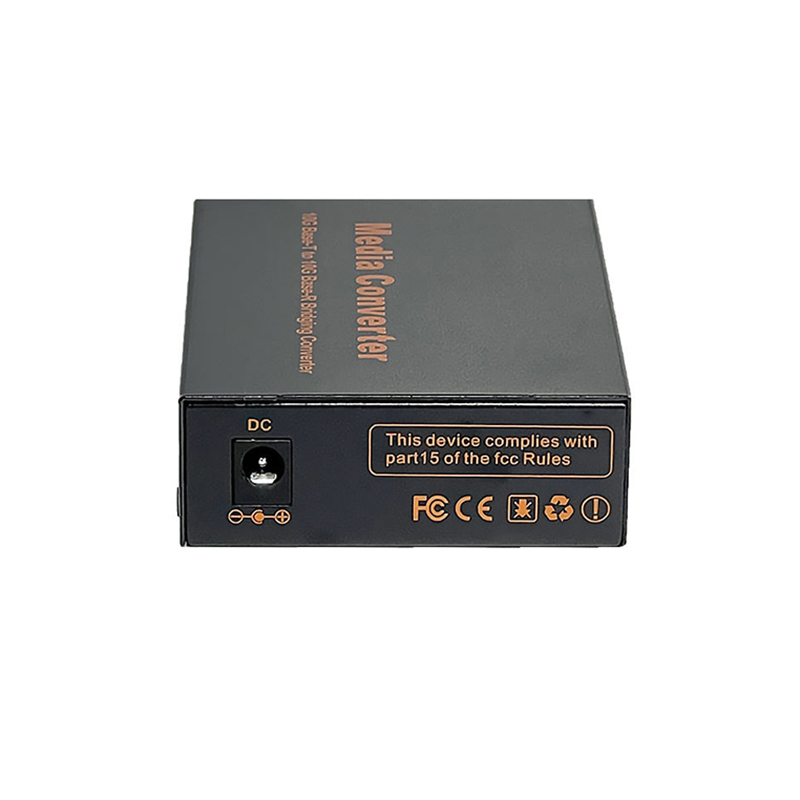

| RD-GS5801-SFP+ | 1/2.5/10GB to SFP+ Media Converter | 10G media converter, 1*RJ45+1*SFP port, External DC12V power supply |
A1: Depends on products, different products have different MOQ, pls contact our sales for more details.
A2: Yes, we can offer the customization service to you.
A3: Yes, all of our products is without lock, support to another brands too.
A4: We are the manufacturer, we support factory view tour.
A5: Yes, for some models we are able to provide the free samples for your testing purpose.
A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
