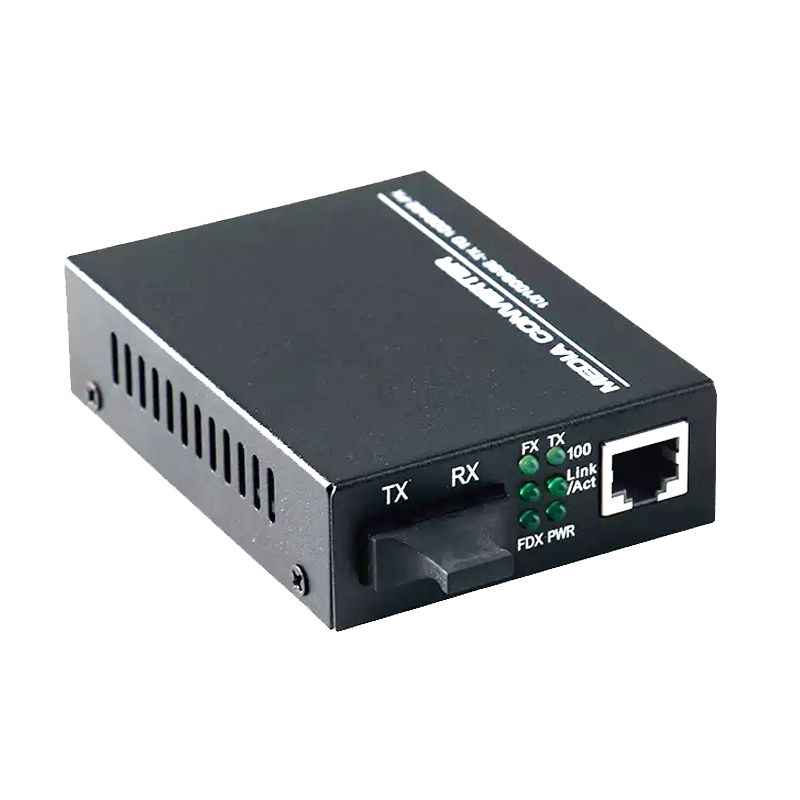

Plug-and-play 100Mbps SM Duplex SC 20km Single Mode Dual Fiber Media Converter Inficomo RD-GS2401-LX CE RoHS Certified 1 Year

Product Description

100M Multimode Dual-Fiber Media Converter
Media Converter Main
✨ Powerful Chips, Stable Transmission
Brand-new complete circuit board, equipped with high-quality chips, ensuring more stable transmission.
Powerful Chips

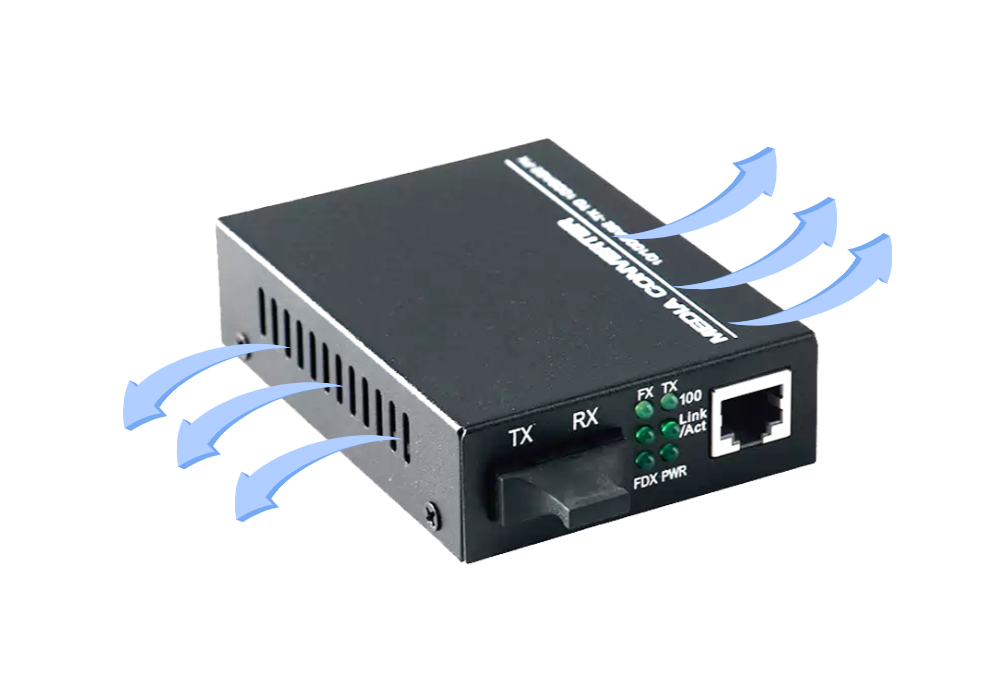

❄️ Efficient Heat Dissipation
Two sets of cooling holes are designed on both sides, effectively reducing the heat generated during operation, enabling the equipment to work for a longer period of time.
Heat Dissipation
📏 Size of Device
Device Dimensions

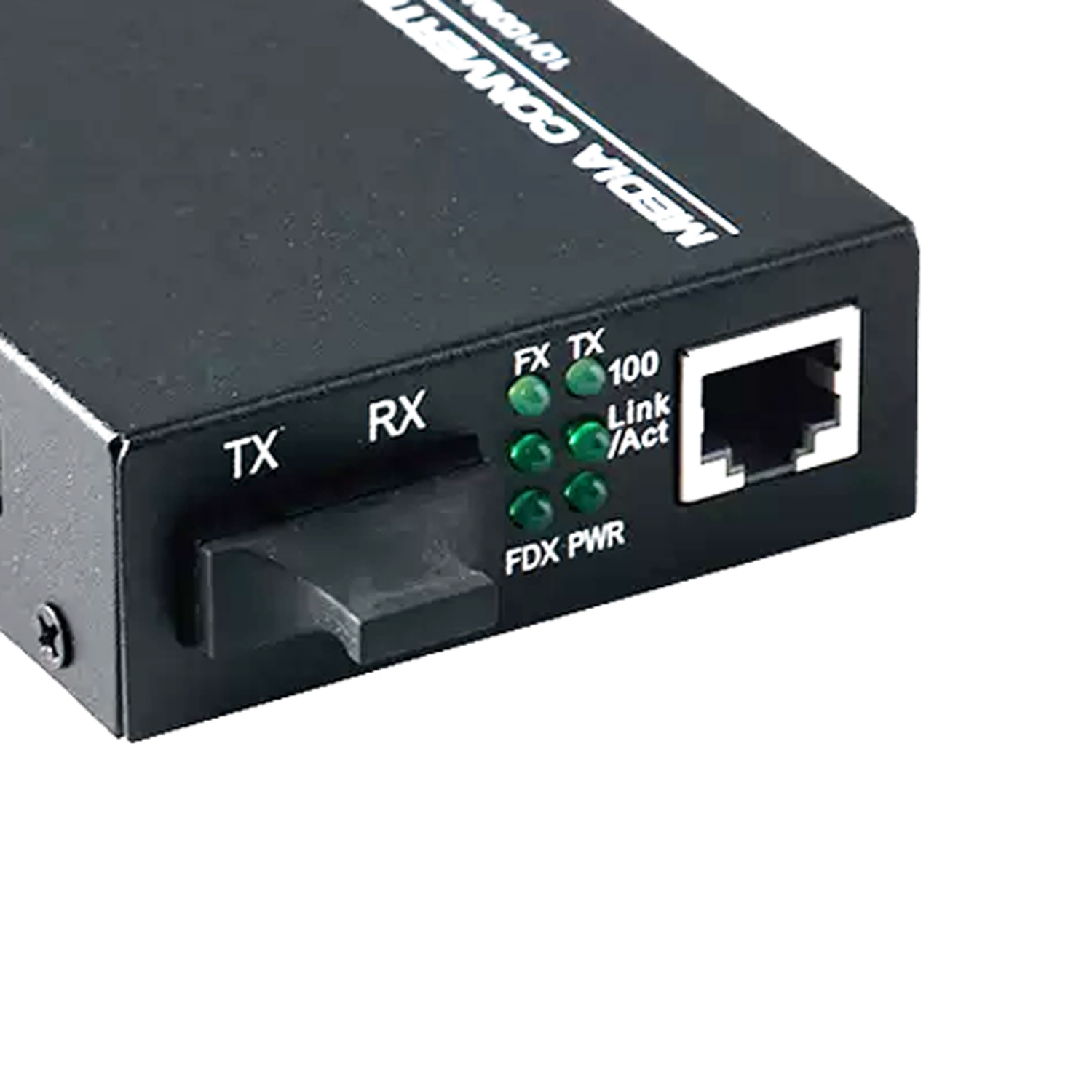

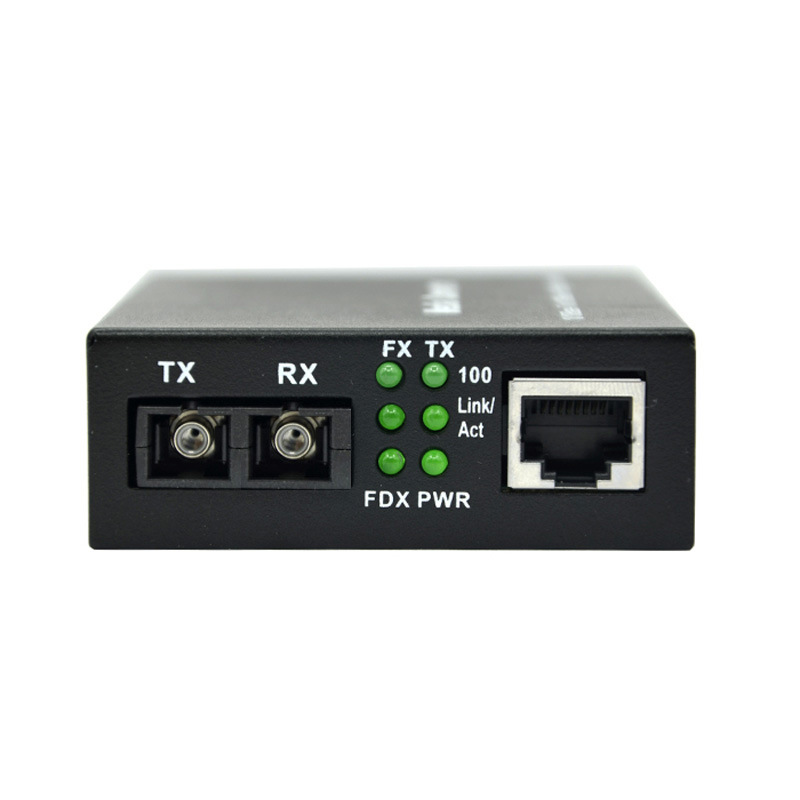

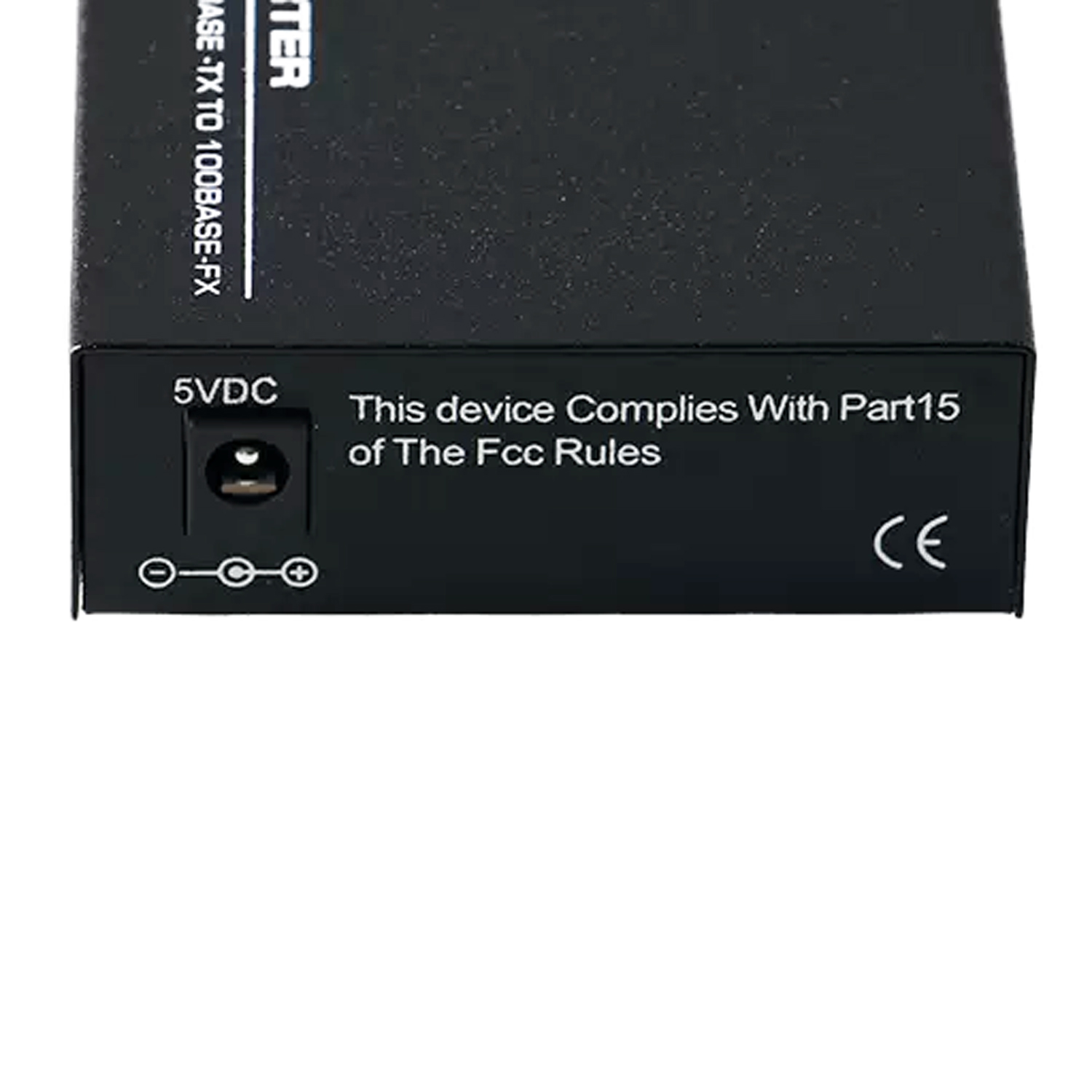

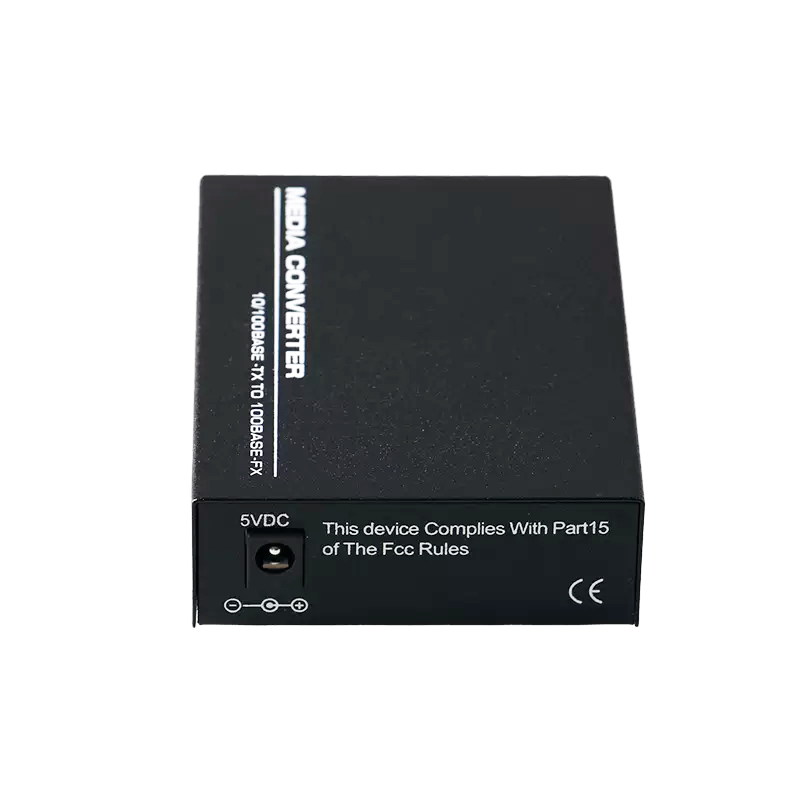

🔍 Equipment Details and Indicator Definitions
Detail 1
Detail 2
🌐 Product Application
Application
📊 TECHNICAL SPECIFICATIONS
Interface Characteristics
Interface 1* 10/100Base-TX RJ45 port (Data); 1*155M uplink SC fiber port (Data)
Ethernet Port 10/100Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤100 meter); 100BASE-TX: Cat5 or later UTP(≤100 meter)
Optical Fiber Port 155Mbps, single-mode dual fiber SC interface
Optical Distance Single mode: 1310nm / 0 ~ 40km, 1550nm 0 ~ 120km.
Chip Parameters
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i, IEEE802.3u 100Base-TX/FX, IEEE802.3x
Switching Capacity 1.0Gbps
MAC / Buffer 1K / 768K
LED Indicator Power: PWR; Data: L/A; FDX; FX; Rate: 10/100
Physical & Environmental
Power Consumption Total PWR 3W (5VDC); Standby <1W
Dimension 94*71*26mm
Temp / Humidity -20~+55°C; 5%~90% RH Non-condensing
🛒 ORDER INFORMATION
Model Introduction Function Details
RD-FE101-20A/B 10/100Mbps 20Km Simplex SC, SM 20km, A:Tx1310/Rx1550; B:Tx1550/Rx1310
RD-GS2401-SX 10/100Mbps 550m Duplex SC, MM 550m, TRx: 1310nm or 850nm
RD-GS2401-LX 10/100Mbps 20Km Duplex SC, SM 20km, TRx: 1310nm
Production Facility
❓ Frequently Asked Questions
What is your MOQ request?
Depends on products, different products have different MOQ. Please contact our sales team for more specific details regarding your requirements.
Do you support ODM/OEM service?
Yes, we offer comprehensive customization services to meet your specific branding and technical requirements.
Does your products support other brands?
Yes, all of our products are without locks, ensuring compatibility and support for other brands in your network.
Are you the manufacturer or a trading company?
We are the manufacturer. We welcome and support factory view tours to verify our production capabilities.
Do you offer free samples?
Yes, for certain models, we are able to provide free samples for your testing and evaluation purposes.
Are you able to provide local certificates?
Yes, according to the contract agreement, we can apply for local certificates such as CE, RoHS, FCC, etc., for your market.
