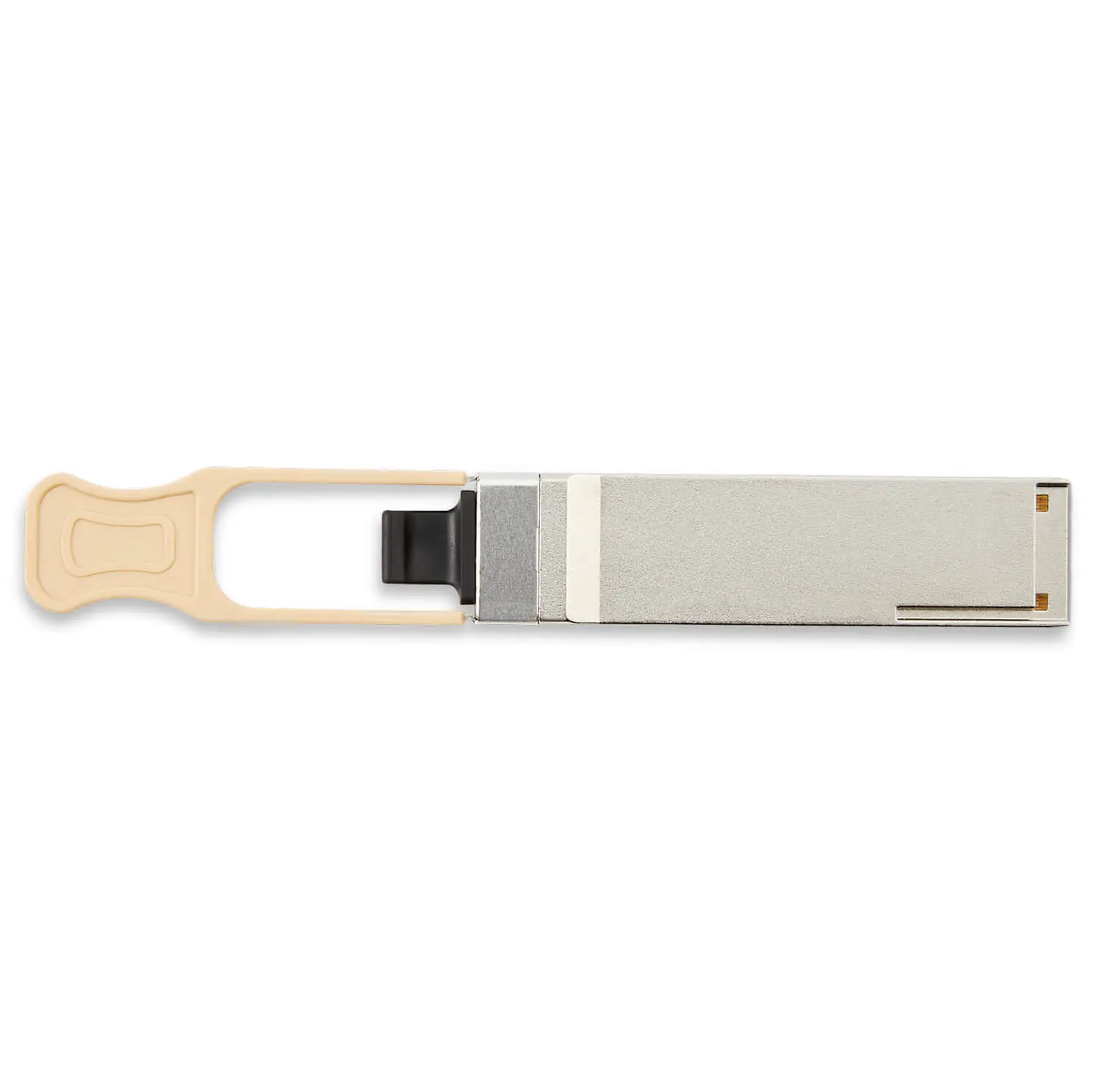

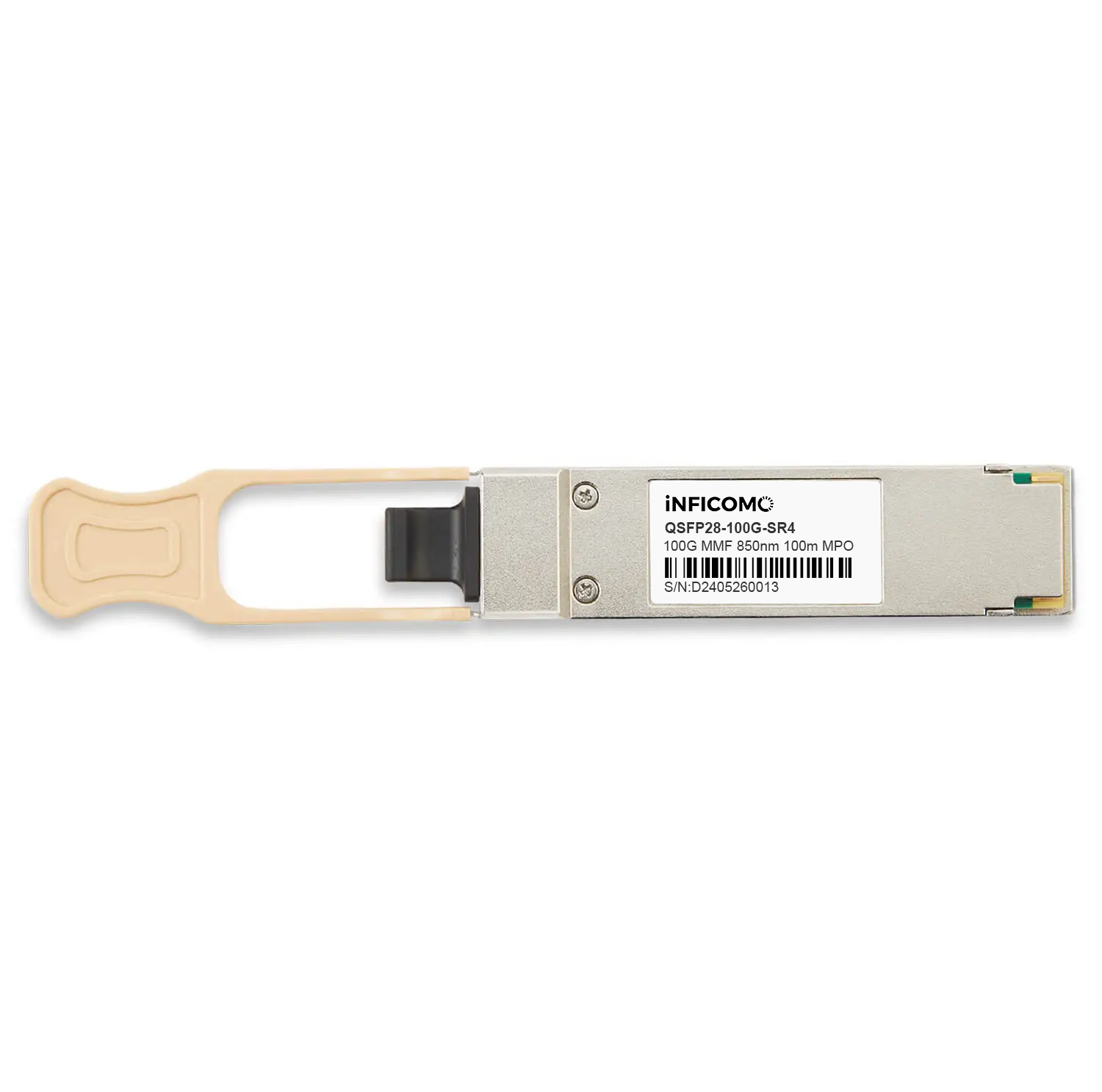

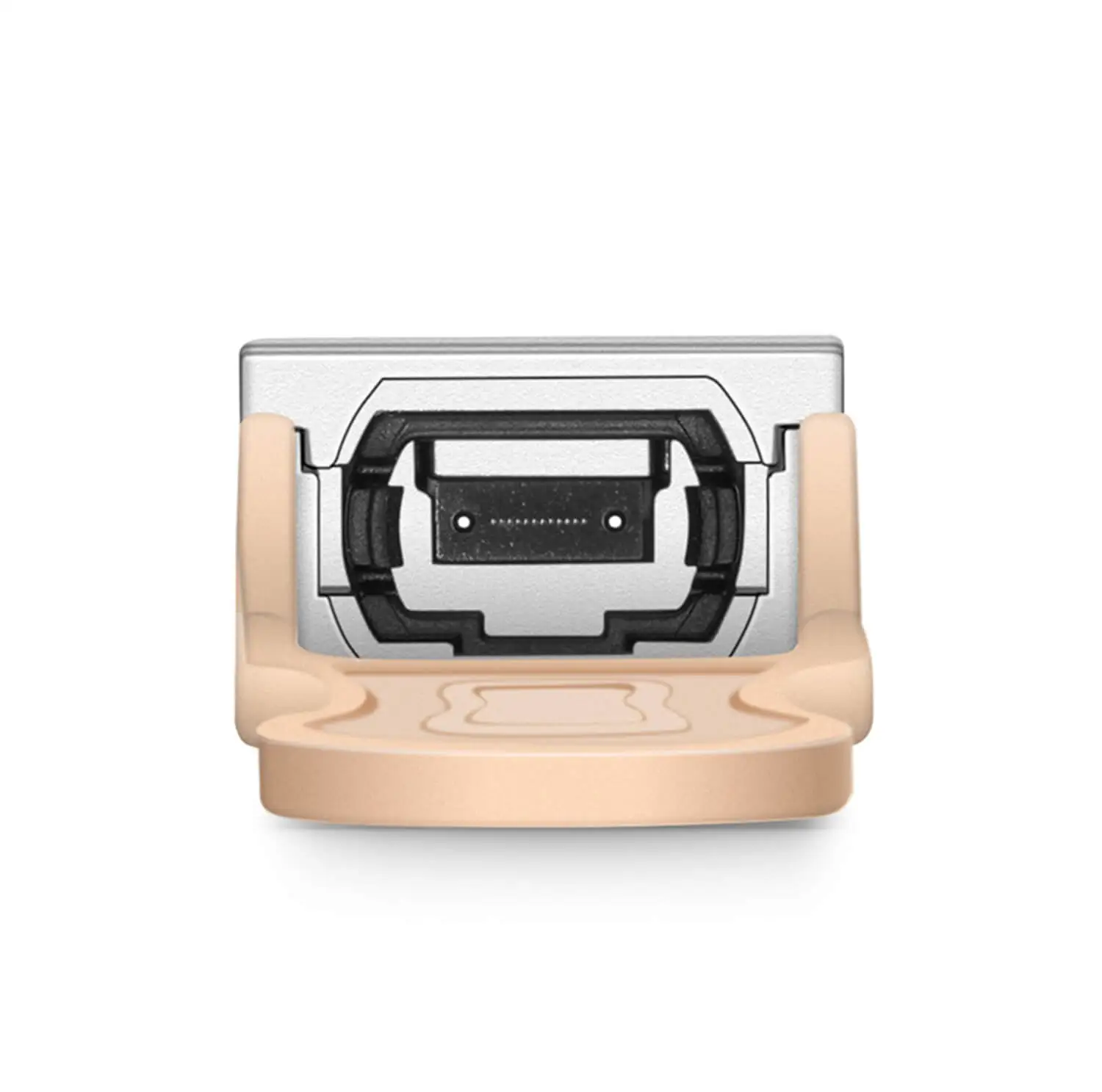

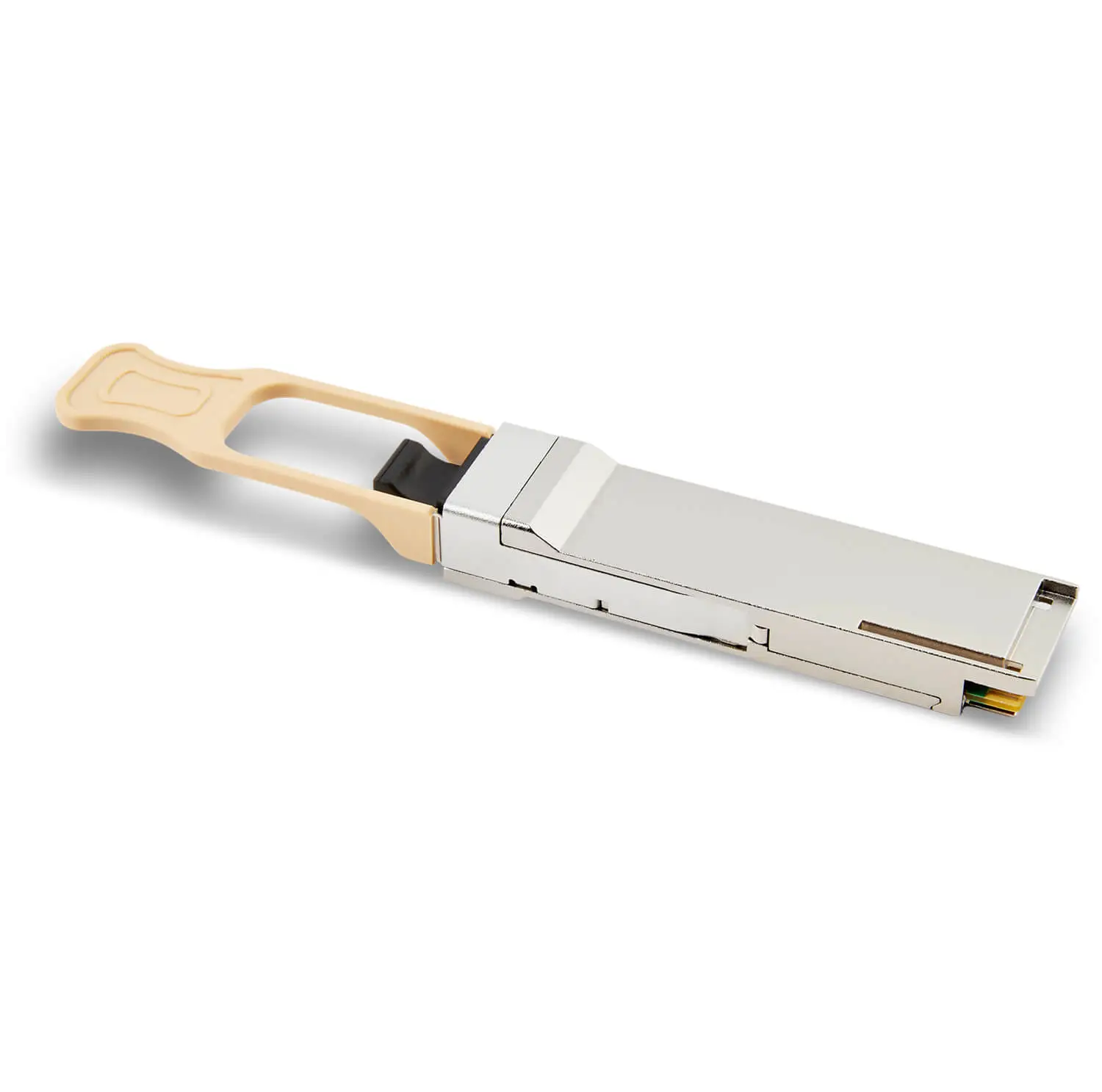

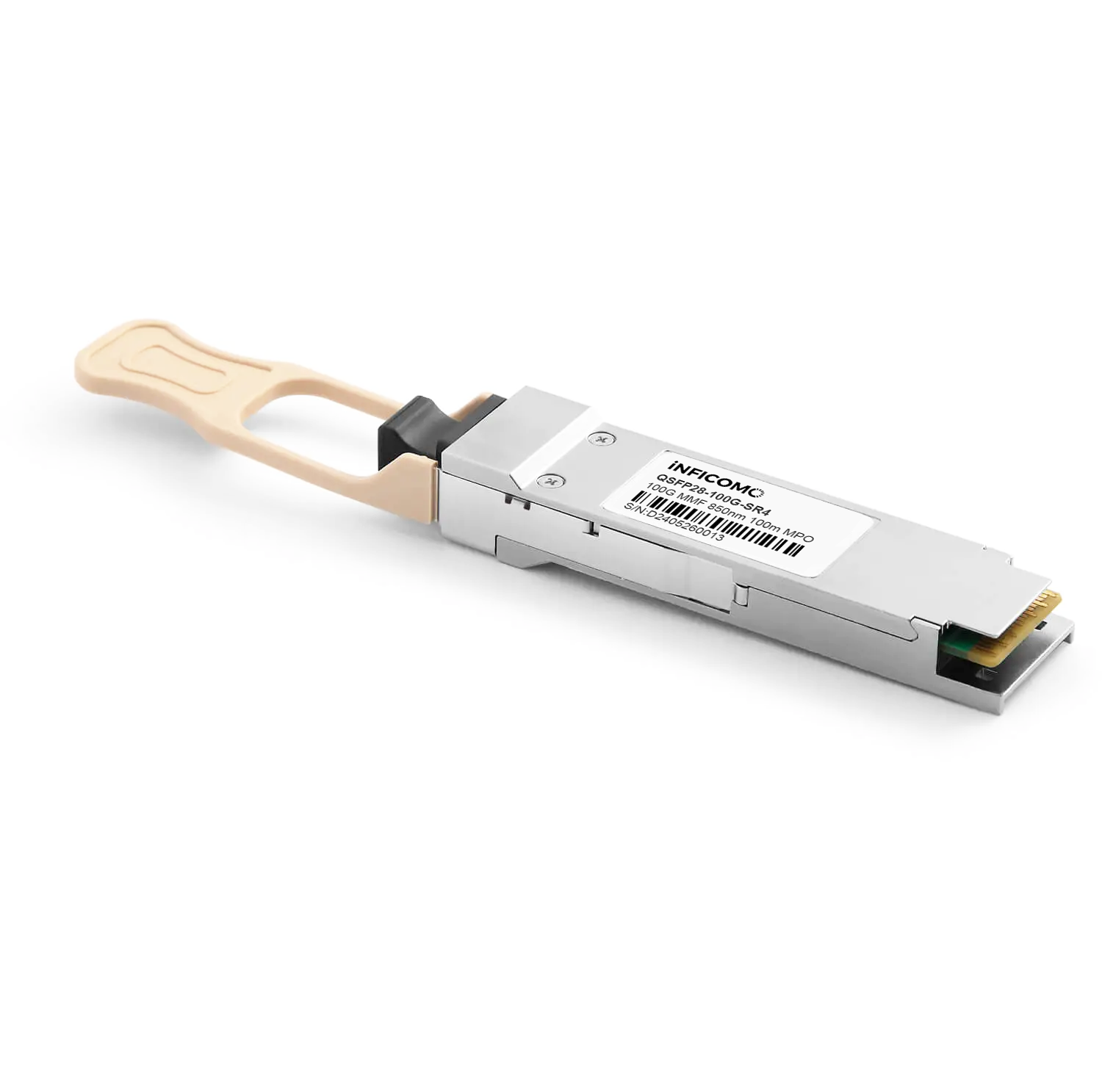

100GBASE-SR4 OM4 Multimode MPO-12 MMF Fiber Optic Transceivers 100G QSFP28 850nm 100m

Product Description

Product Banner
Specification
Part No. QSFP-100G-SR4
Form Factor QSFP28 Max. Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 850nm Max. Cable Distance 70m@OM3 / 100m@OM4
Connector MTP/MPO-12 Media MMF
Transmitter Type VCSEL 850nm Receiver Type PIN
TX Power -8.4 ~ 2.4dBm Receiver Sensitivity -10.3dBm
Power Budget 1.9dB Receiver Overload 2.4dBm
Power Consumption ≤2.5W Extinction Ratio >3dB
DDM/DOM Supported Warranty 2 Years
Commercial Temp Range 0 to 70°C (32 to 158°F) Protocols IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI
Quality Guaranteed
Newly-Made, Quality Guaranteed
Interoperability Testing
Tested in Host Devices for Proven Interoperability
Reliability Testing
Comprehensive Testing Increases Reliability
Order Info
Model Introduction
QSFP28-100G-SR4 100G QSFP28 MMF 850nm 100m MPO DOM
QSFP28-100G-PSM4 100G QSFP28 SMF 1310nm 500m MPO DOM
QSFP28-100G-CWDM4 100G QSFP28 SMF 1310nm CWDM4 2km LC DOM
QSFP28-100G-LR4 100G QSFP28 SMF 1310nm 10km LC DOM
QSFP28-100G-ER4 100G QSFP28 SMF 1310nm 40km LC DOM
QSFP28-100G-ZR4 100G QSFP28 SMF 1310nm 80km LC DOM
FAQ
QCan you do OEM?
Yes, we can do OEM products. It's no problem.
QHow is quality control managed?
Every single optic module is individually tested in our test center, and also tested for compatibility on a variety of different network equipments.
QCan I get a sample first?
Yes, we can provide samples for you to check the quality.
QHow about the payment terms?
We accept T/T, western union, Alibaba order...
QWhat is the lead time?
For usual order, we keep stock, could ship about 3 days after receiving the payment. For big quantity & special products, please check lead time with our sales.
QHow do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
