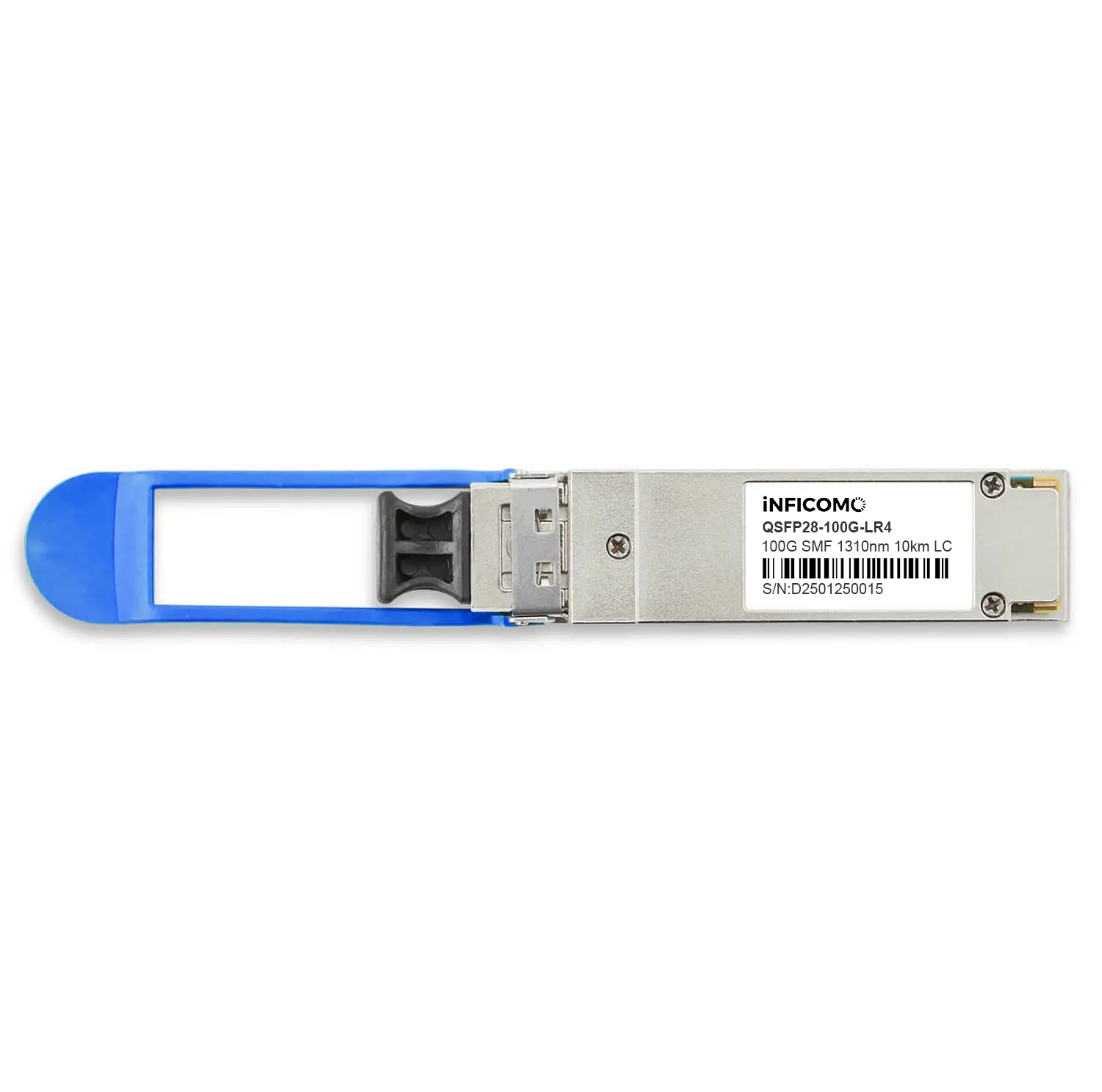

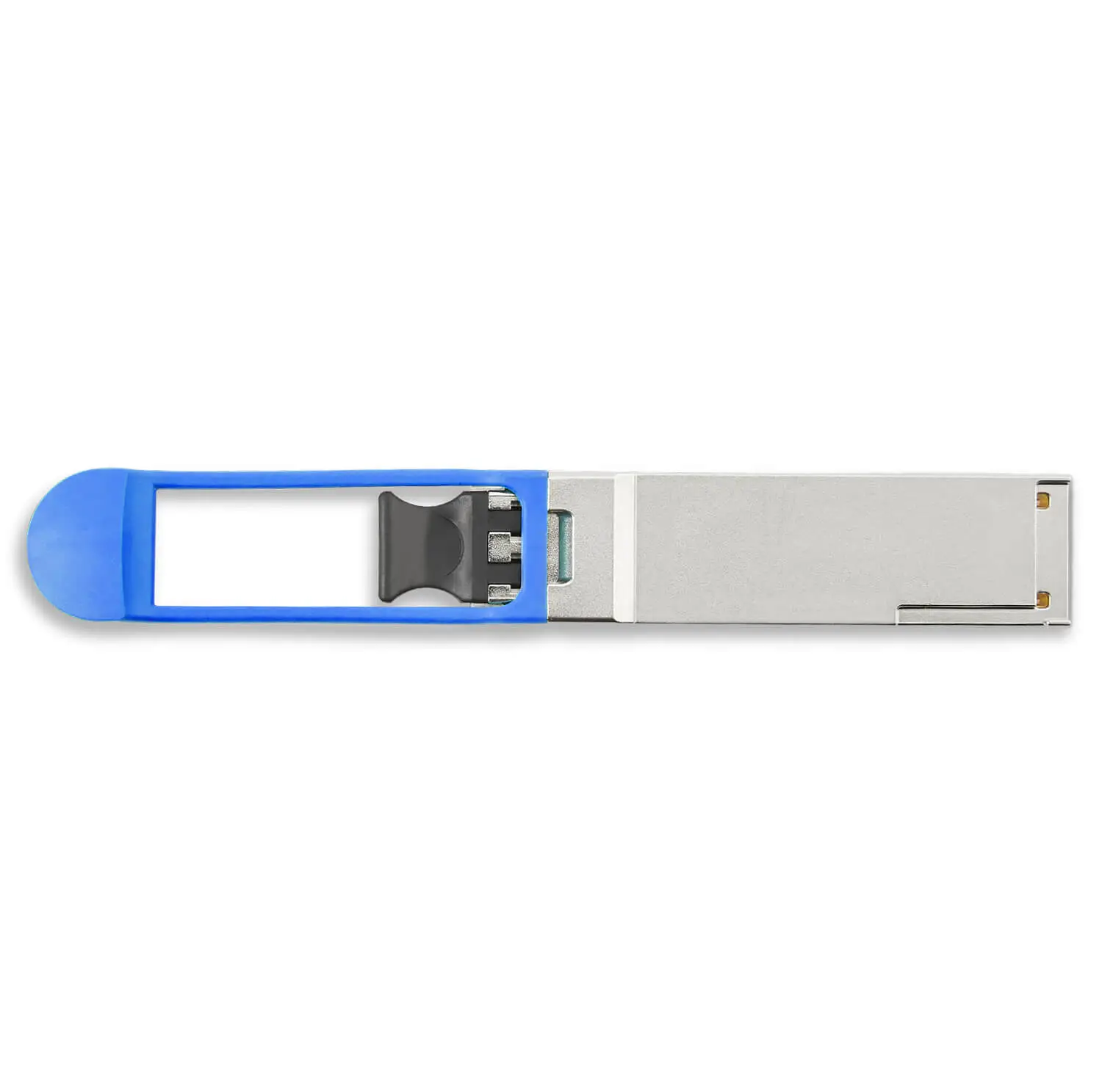

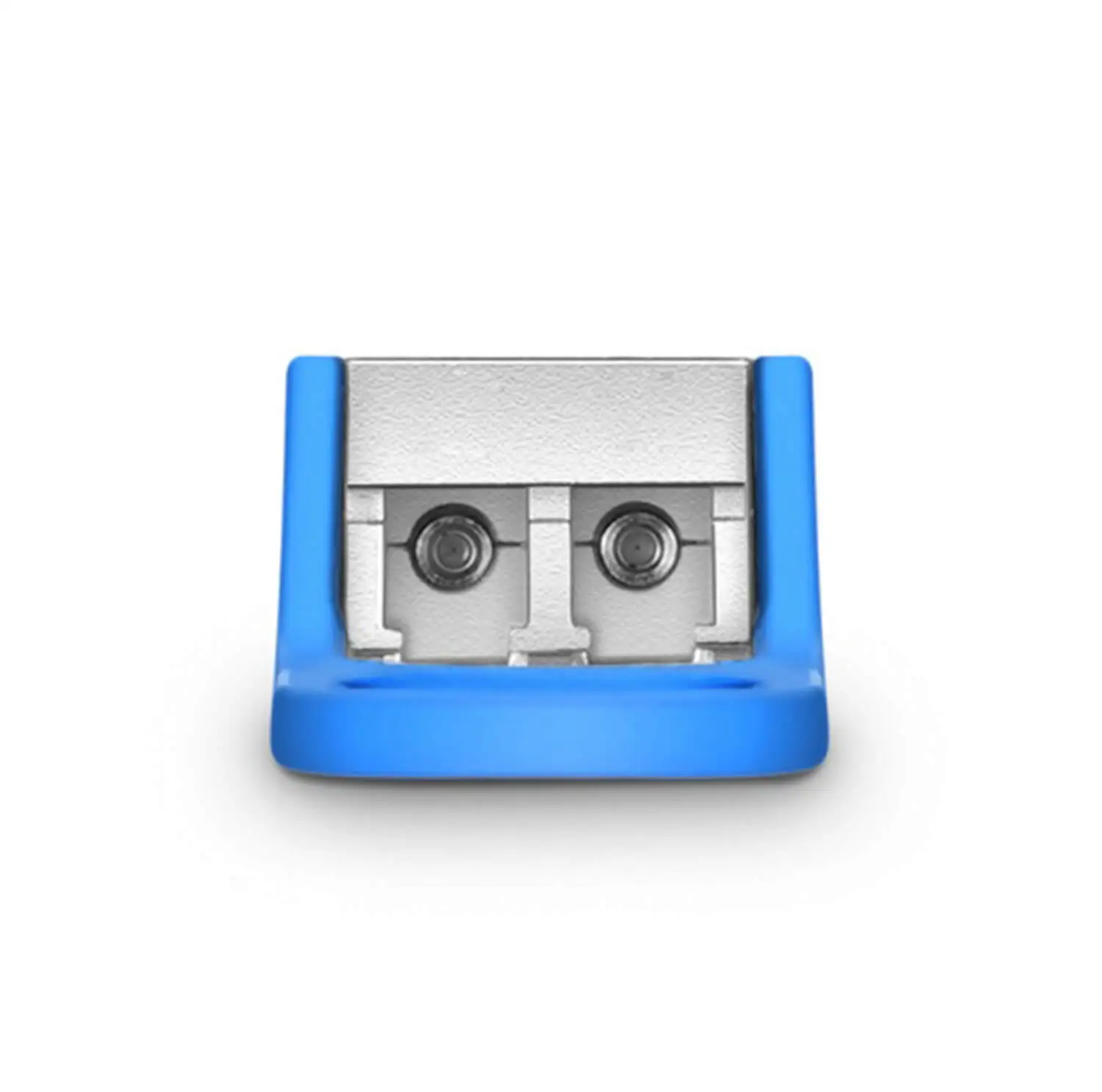

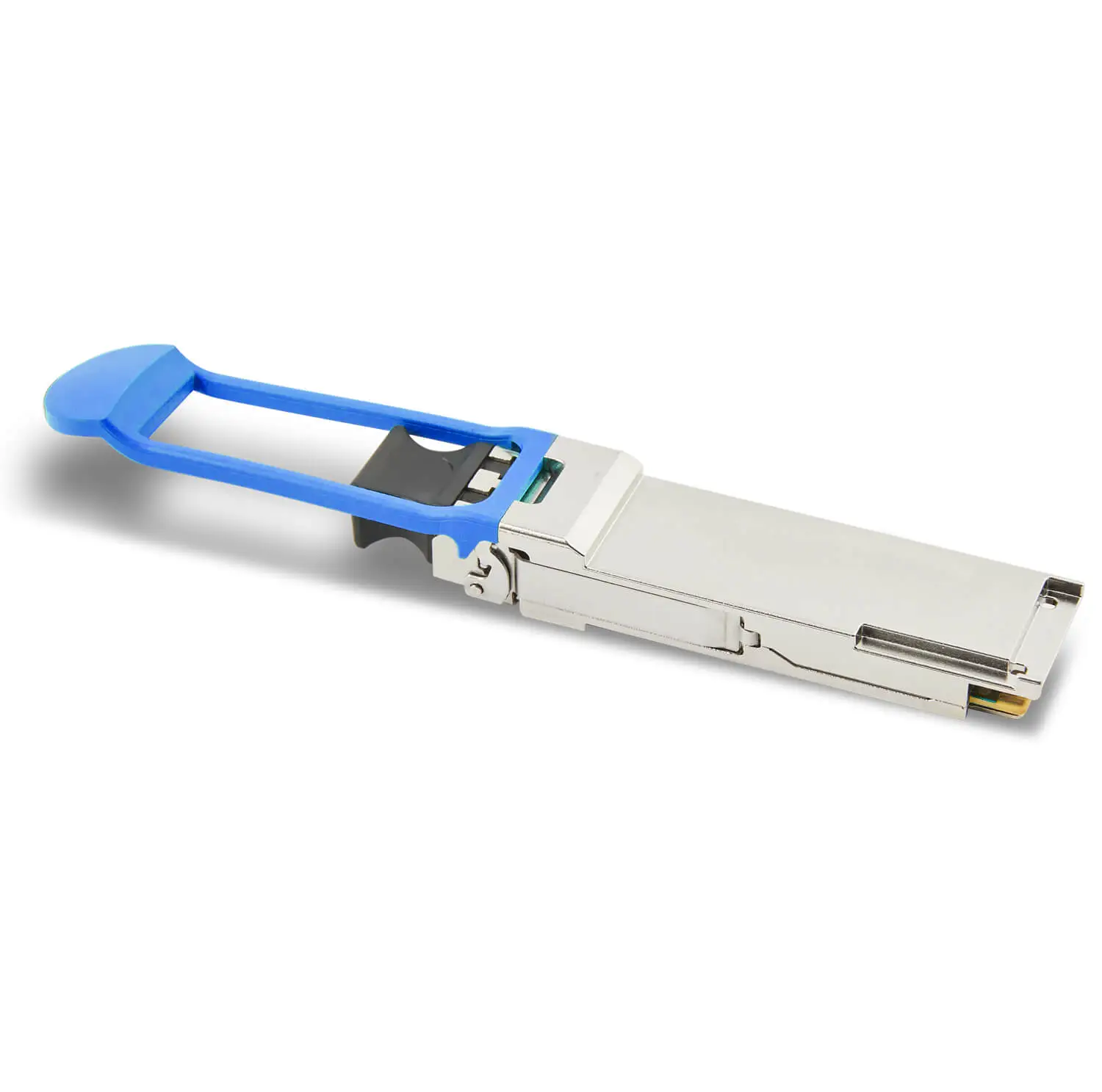

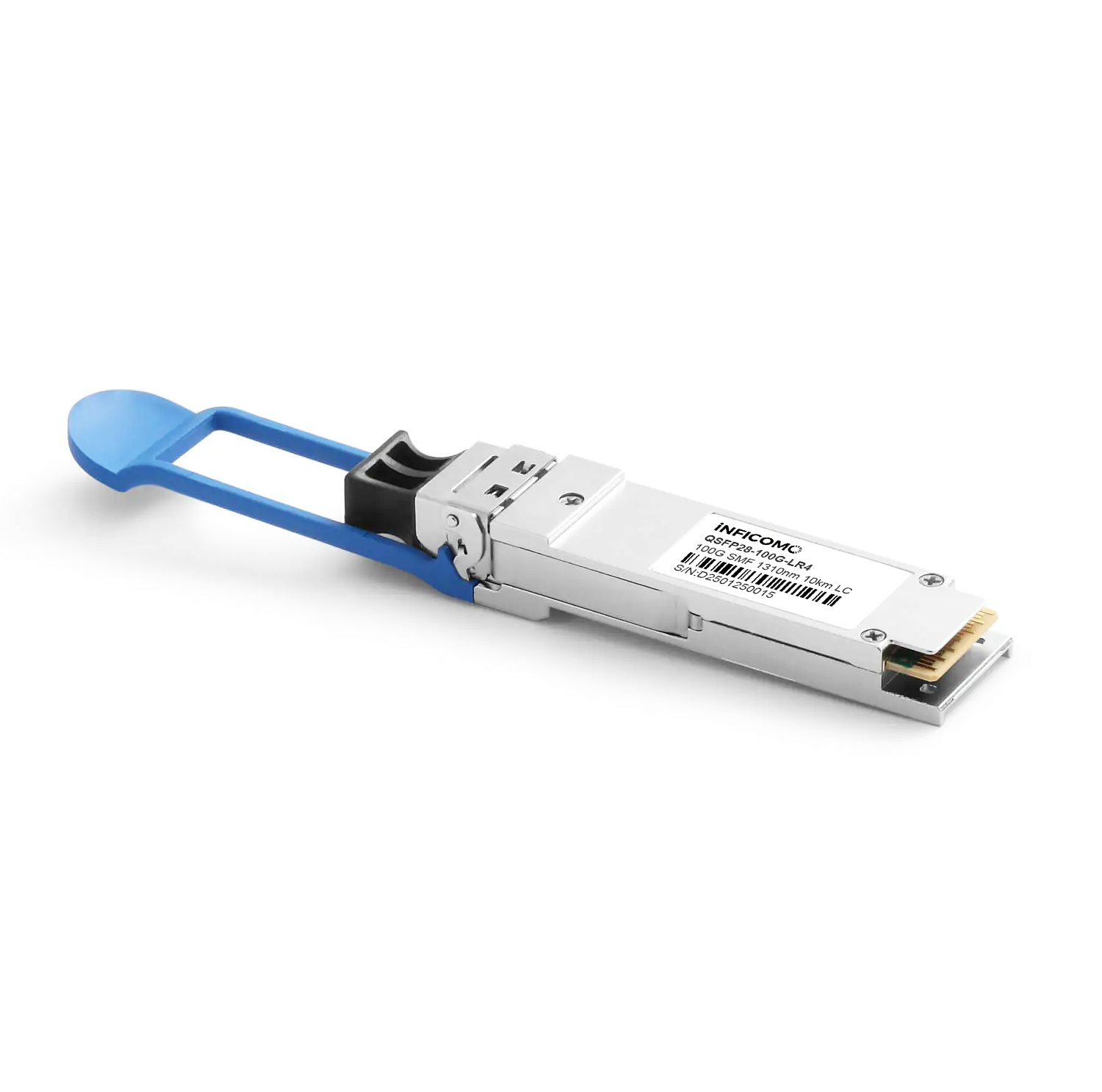

| Part No. | QSFP-100G-LR4 |
| Form Factor | QSFP28 |
| Max. Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm |
| Max. Cable Distance | 10km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | 4 x LAN WDM EML |
| Receiver Type | PIN |
| TX Power | -4.3~4.5dBm |
| Receiver Sensitivity | -10.6dBm |
| Power Budget | 6.3dB |
| Receiver Overload | 4.5dBm |
| Power Consumption | ≤3.5W |
| Extinction Ratio | >4dB |
| DDM/DOM | Supported |
| Warranty | 2 Years |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3 100GBASE-LR4, QSFP28 MSA, SFF-8665, SFF-8636 |
| Model | Introduction |
|---|---|
| QSFP28-100G-SR4 | 100G QSFP28 MMF 850nm 100m MPO DOM |
| QSFP28-100G-PSM4 | 100G QSFP28 SMF 1310nm 500m MPO DOM |
| QSFP28-100G-CWDM4 | 100G QSFP28 SMF 1310nm CWDM4 2km LC DOM |
| QSFP28-100G-LR4 | 100G QSFP28 SMF 1310nm 10km LC DOM |
| QSFP28-100G-ER4 | 100G QSFP28 SMF 1310nm 40km LC DOM |
| QSFP28-100G-ZR4 | 100G QSFP28 SMF 1310nm 80km LC DOM |
Q. Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
Q. How is quality control handled?
A: Every single optic module is individually tested in the testing center, and also tested for compatibility on a variety of different network equipment.
Q. Can I get a sample first?
A: Yes, we can provide samples for you to check the quality.
Q. How about the payment terms?
A: We accept T/T, Western Union, Alibaba order...
Q. What is the lead time?
A: For standard orders, we keep stock and can ship about 3 days after receiving payment. For large quantities and customized products, please check the lead time with the sales team.
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
