| Items | Specifications |
|---|---|
| PON standard | EPON IEEE802.3ah GPON ITU-T G.984.x |
| Optical interface | SC/PC connector, 1 GPON/EPON interface (EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| Speed | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
| Wavelength | Tx1310, Rx 1490 |

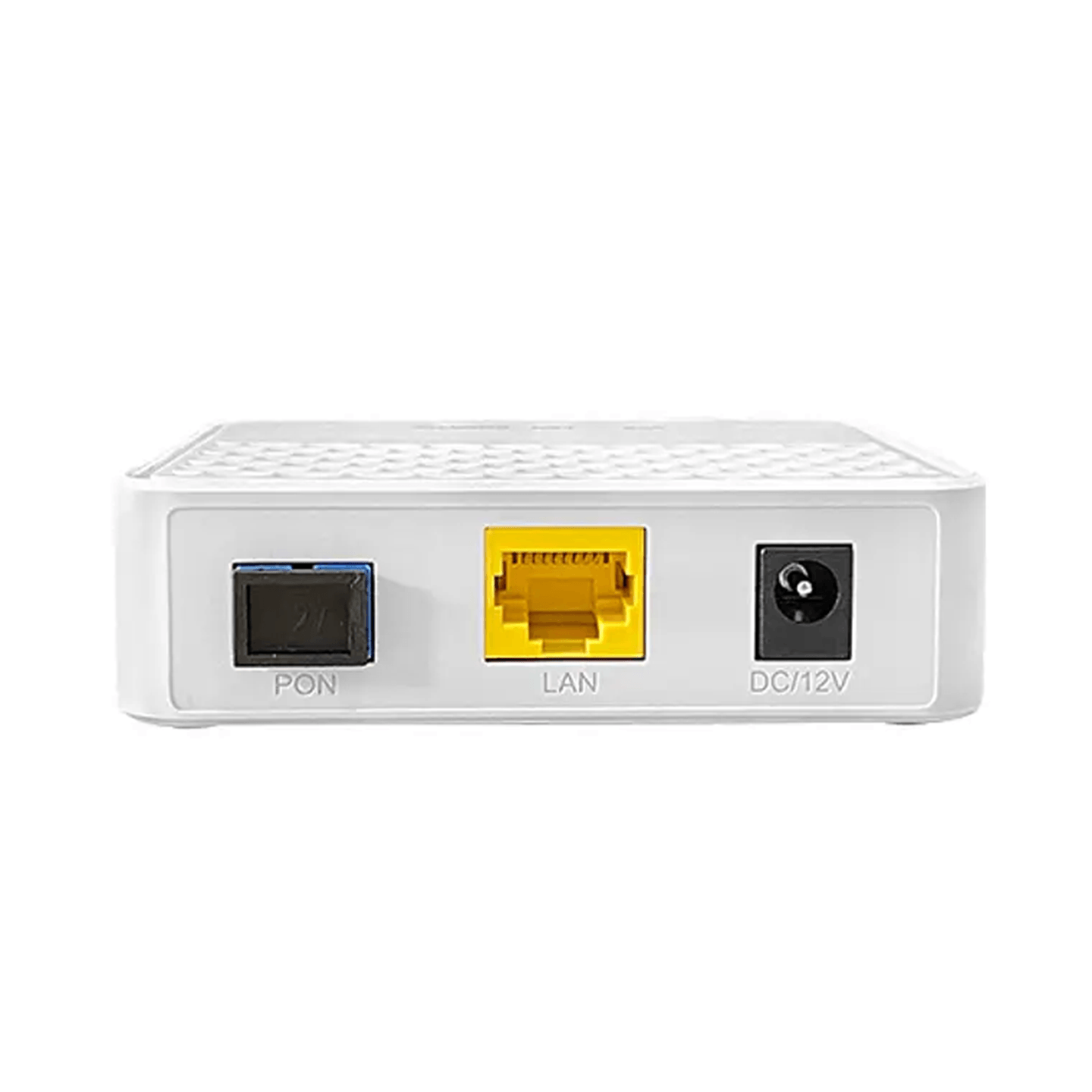

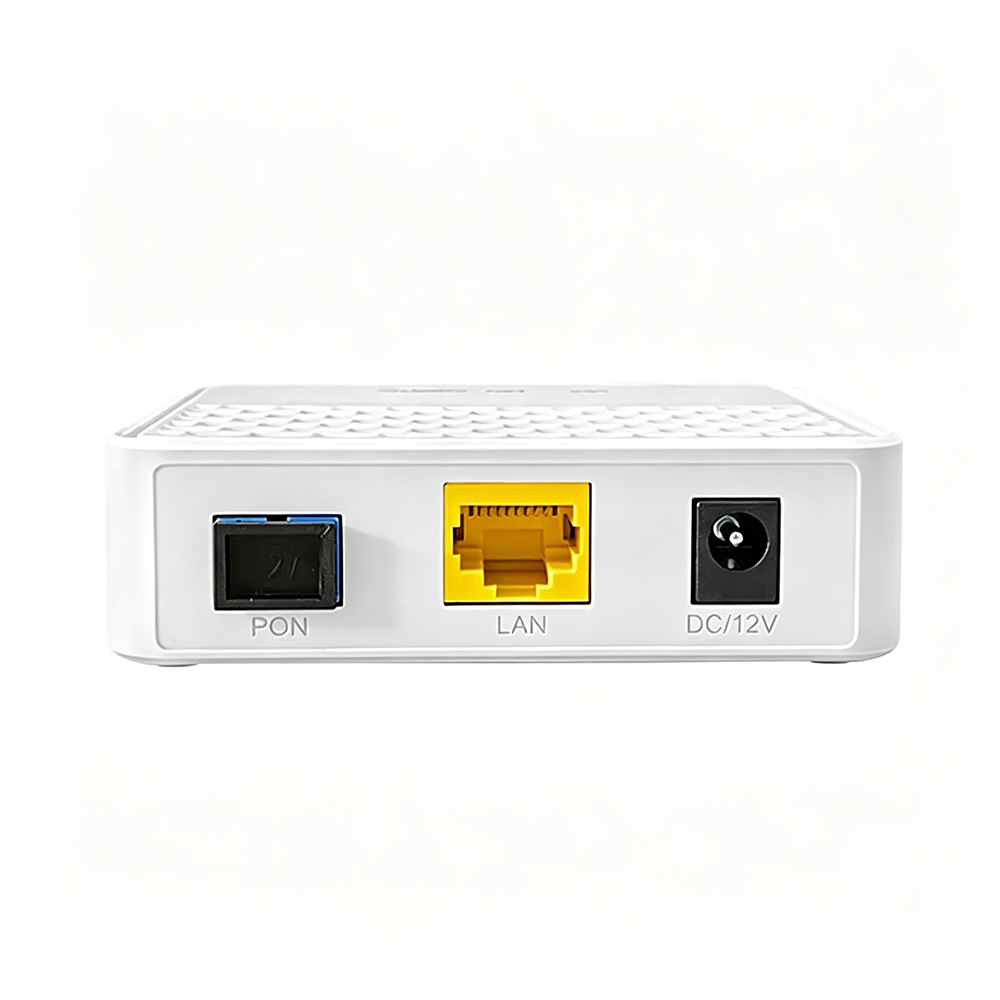

| Interface | 1* 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |

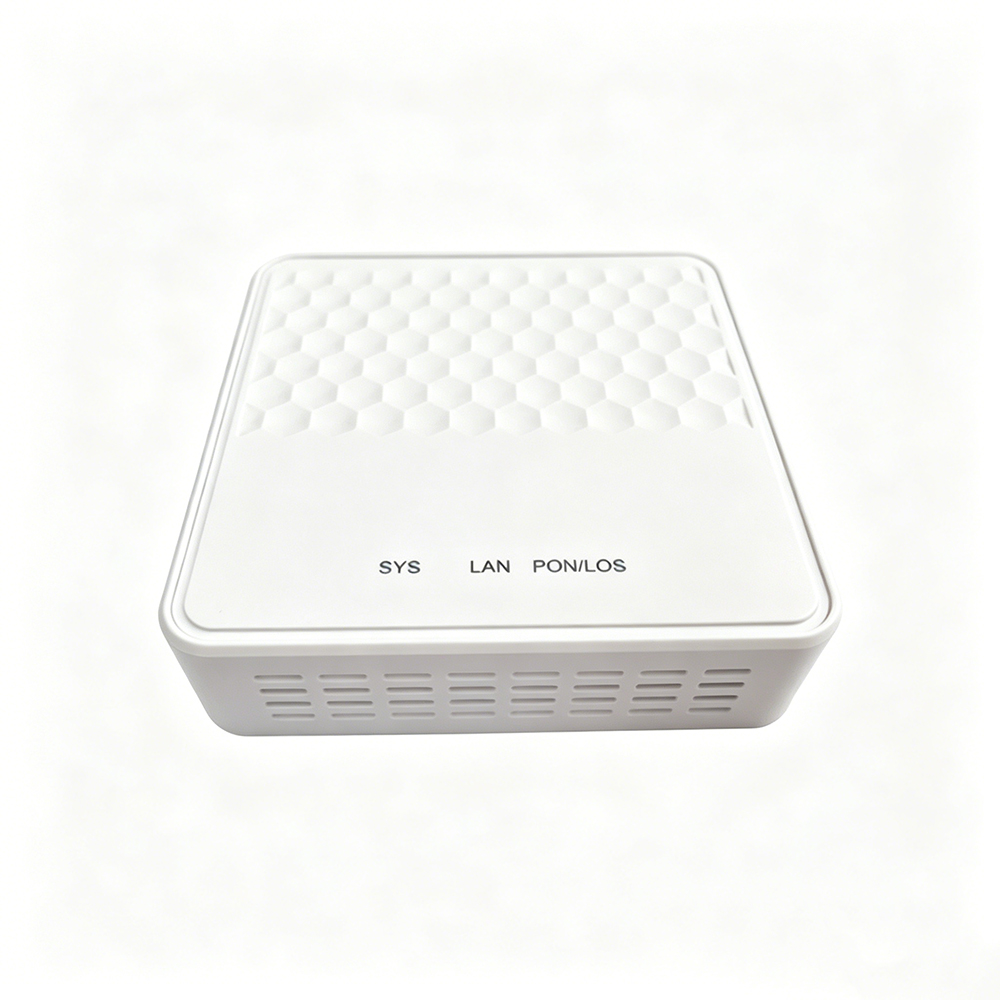

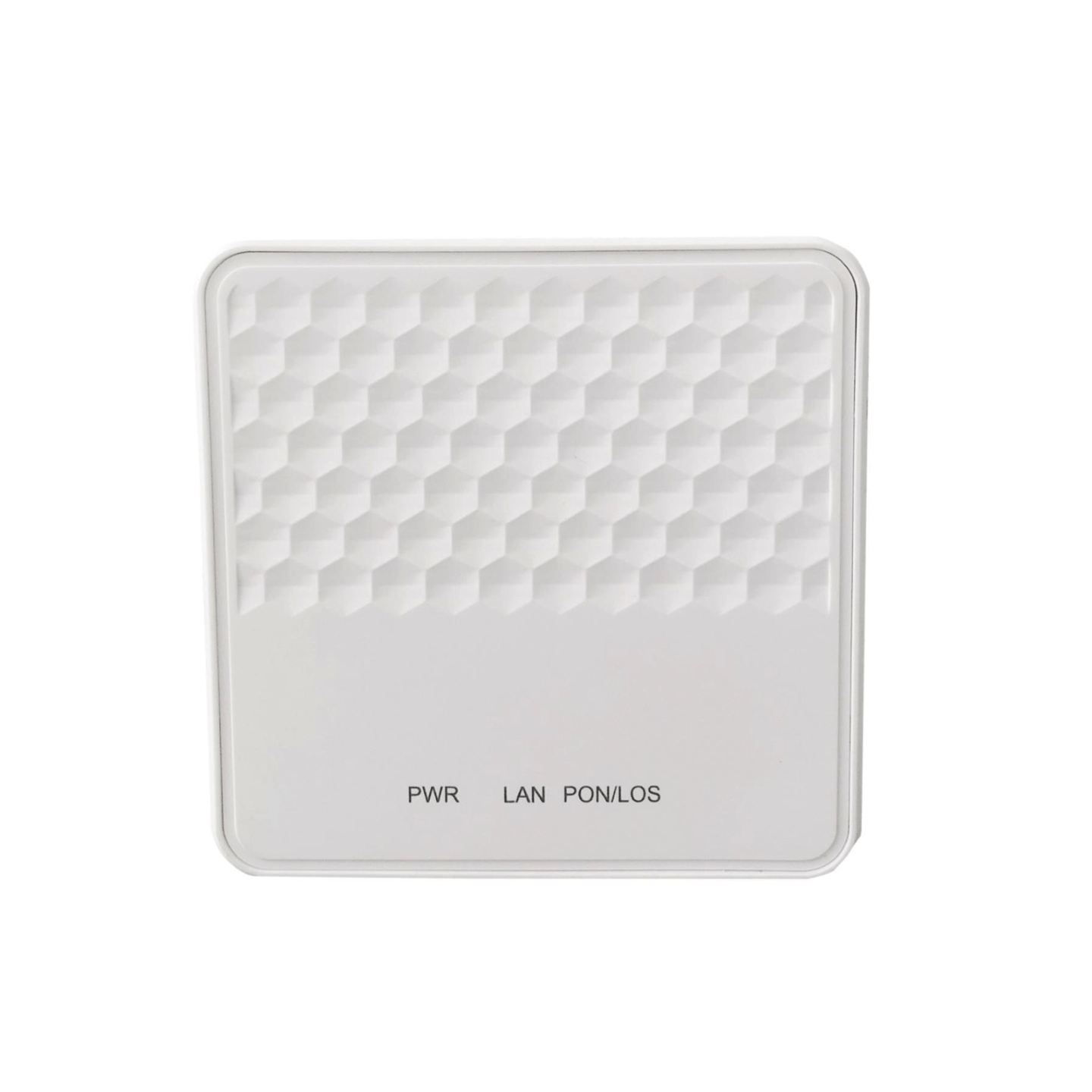

| Indicator | Sys, REG, LINK/ACT |
| Operating condition | Operating temp: -5 ~ +55 |
| Storing condition | Storing temp: -30 ~ +60 |
| Humidity | 10~90% (non-condensing) |
| Power supply | DC 12V, 1A adapter |
| Power consumption | ≤4W |
| Dimension | 86mm×85mm×25mm (L×W×H) |
| Net weight | 0.08KG |
| Part Number | Description | Accessories Pack |
|---|---|---|

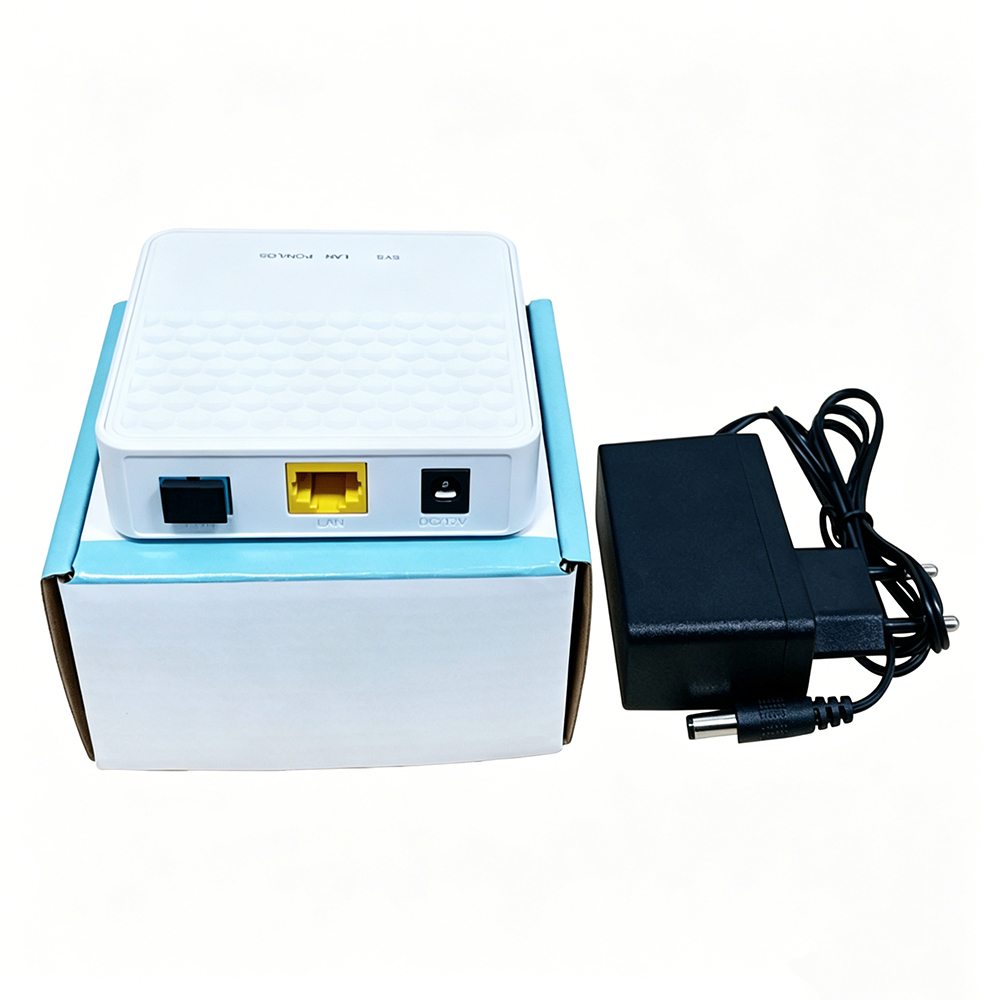

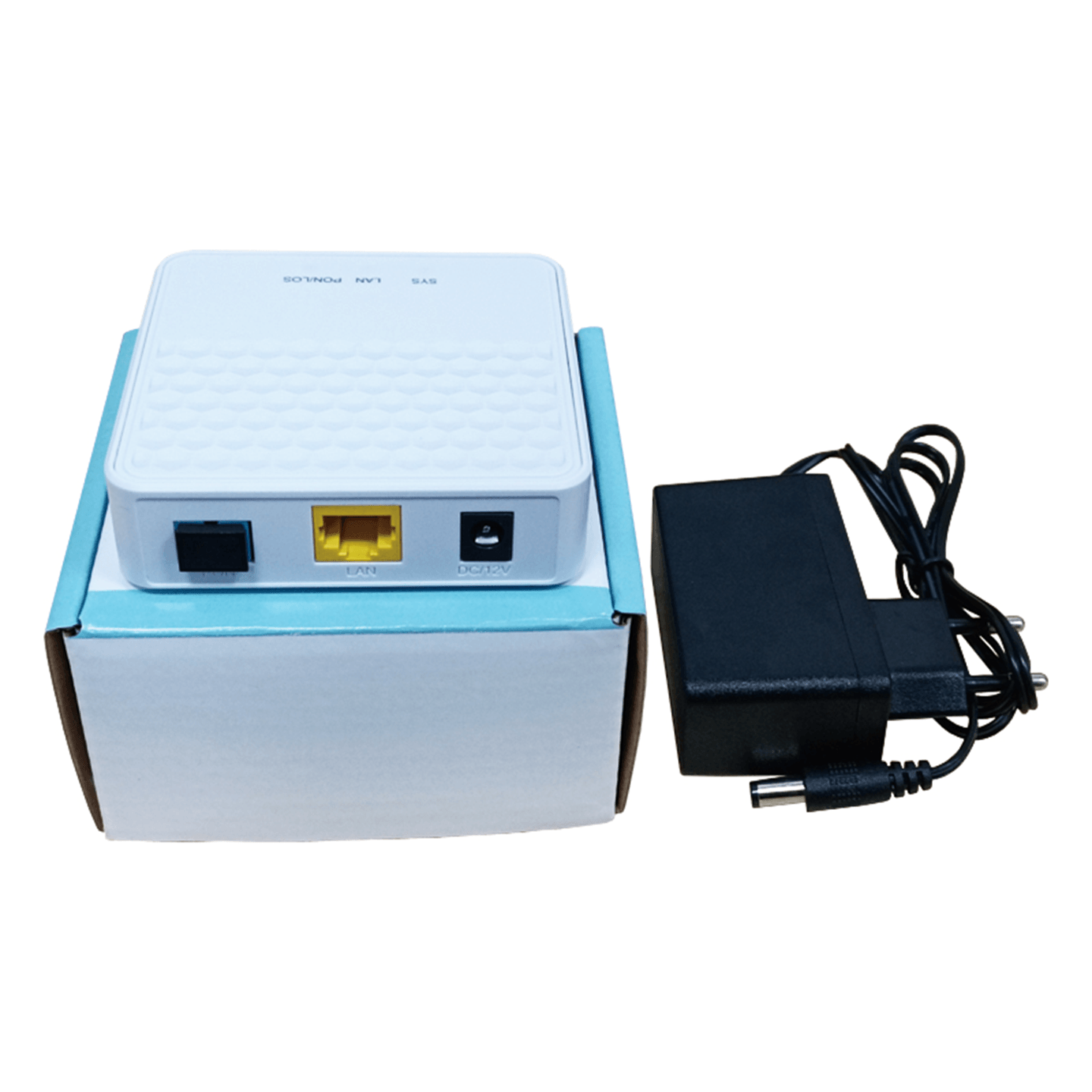

| PTF2251L | 1*XPON+1*GE | AC-DC Power Adapter DC12V/1A |
