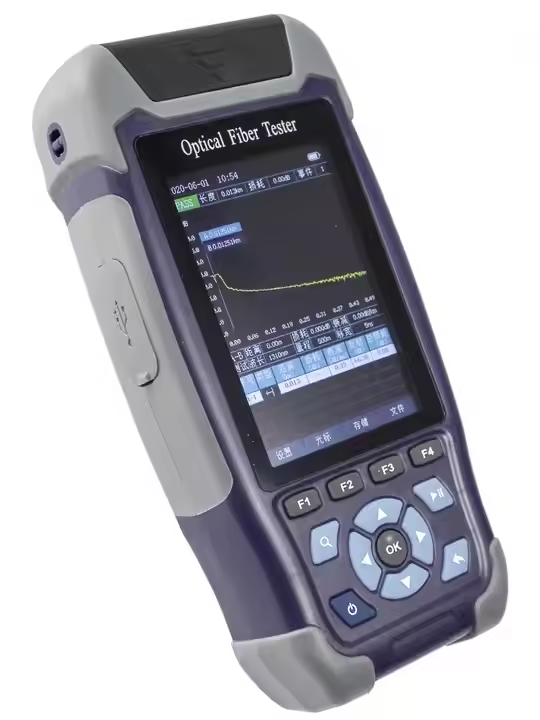

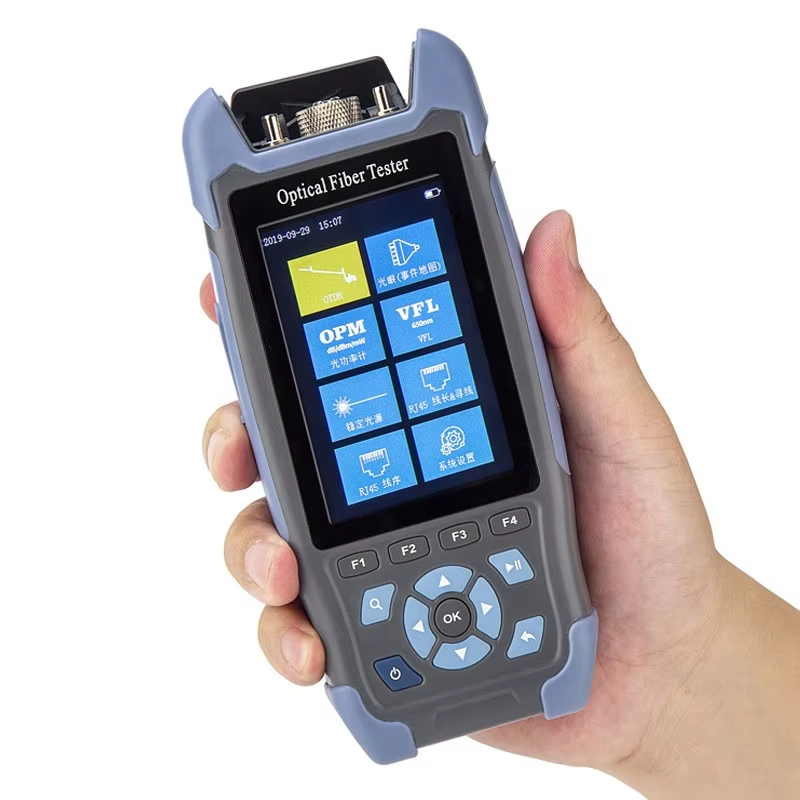

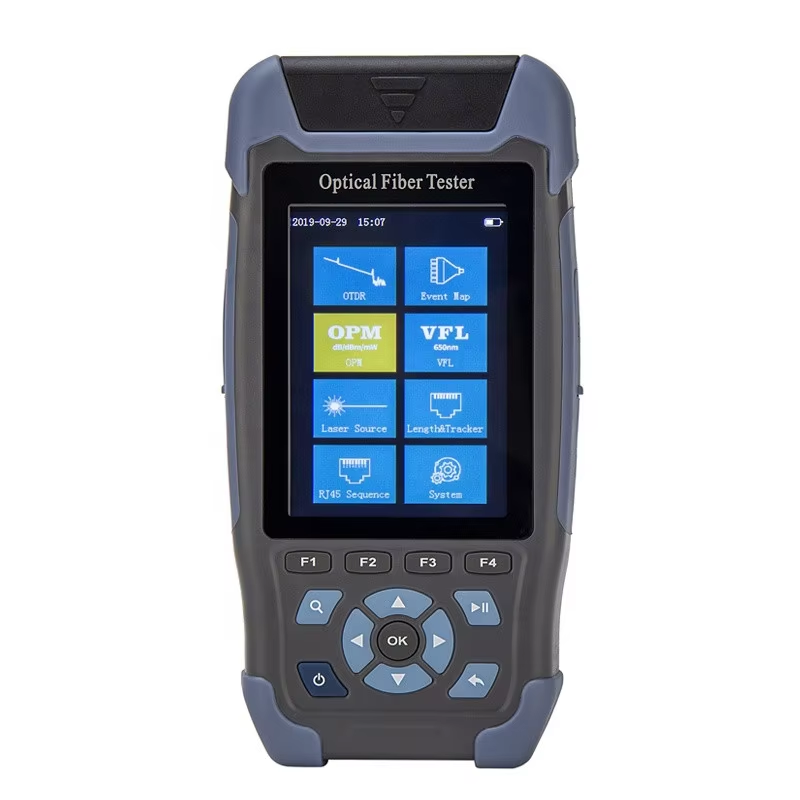

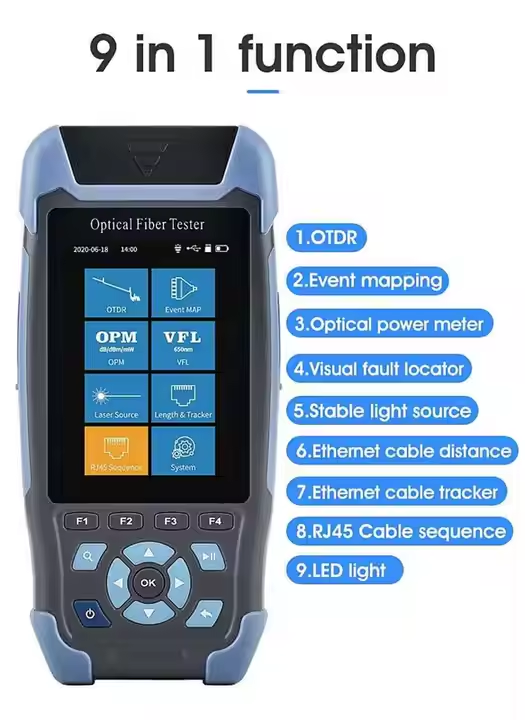

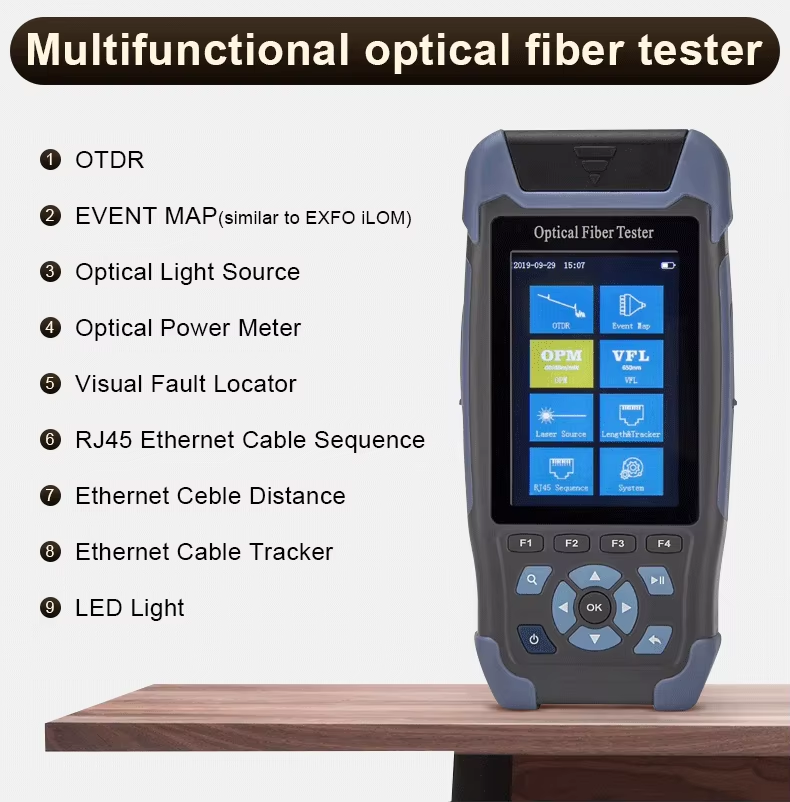

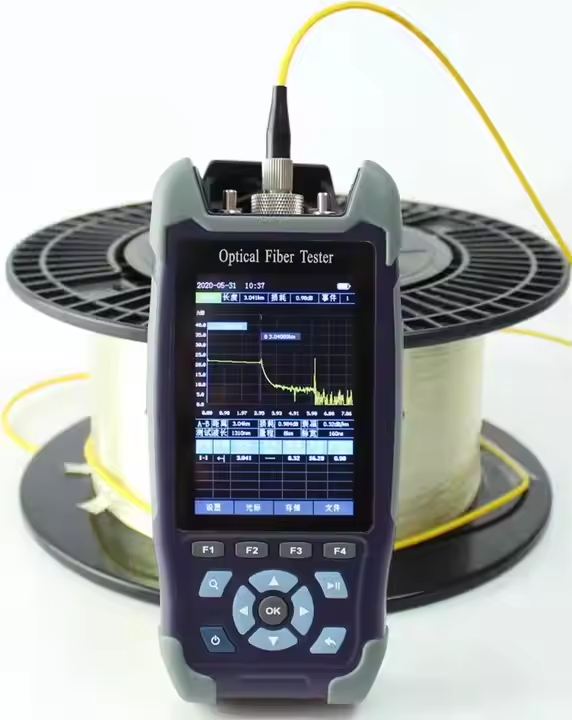

| Mini-Pro OTDR | |
| Model | 3200D |
| Wavelength | 1310nm/1550nm±20nm |
| Fiber Type | G.652 |
| Dynamic Range | 24dB/22dB |
| Event Blind Zone | 3m |
| ATT Blind Zone | 8m |
| Test Range | 500m~60km |
| Pulse Width | 3ns~10us |
| Ranging accuracy | ±(1m+ Sampling interval +0.005%×Test distance) |
| Loss accuracy | ±0.05dB/dB |
| Sampling Points | 16k~128k |
| Sampling resolution | 0.05m~8m |
| Reflection accuracy | ±3dB |
| Data Storage | Internal: ≥600; External: TF Card |
| Laser Safety Level | Class II |
| File format | SOR Standard file format |

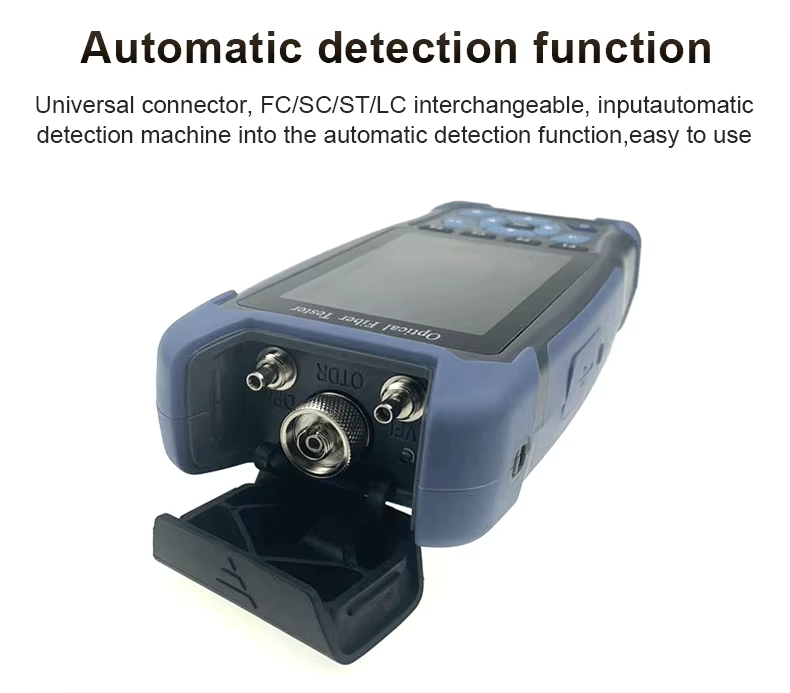

| Connector | FC/UPC(Interchangeable SC,ST) |
| OPM (Optical Power Meter) | |
| Wave Range | 800nm~1700nm |
| Interface Type | Universal Joint FC/SC/ST |
| Test Range | -50dBm~+26dBm |
| Uncertainty | ±5% |
| Frequency Identification | CW/270/330/1k/2kHz |
| Calibration wavelength | 850/980/1300/1310/1490/1550/1625/1650nm |

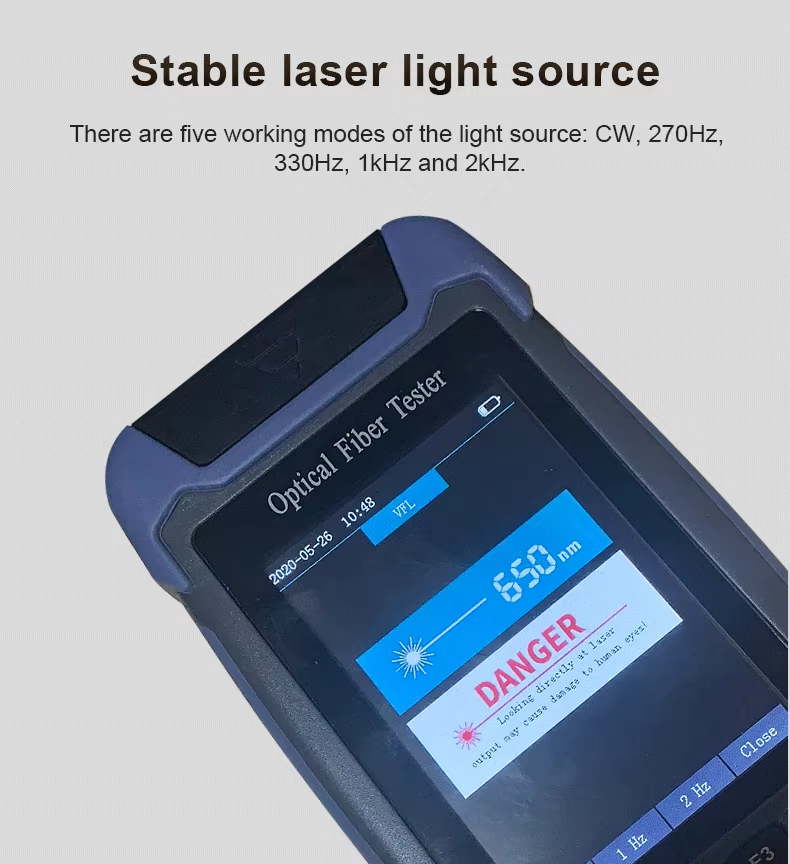

| LS (Laser Source) | |
| LD Type | FP-LD |
| Wavelength | 1310nm/1550nm±20nm |
| Output Power | ≥-5dBm |
| Modulation Frequency | 270/330/1k/2kHz |
| Stability | CW, ±0.5dB/15min (Test after 15 minutes of preheating) |
| Connector | FC/UPC(Interchangeable SC,ST) |
| VFL (Visual Fault Locator) | |
| Wavelength | 650nm±20nm |
| Output Power | ≥10mW |
| Mode | CW/1Hz/2Hz |
| Connector | FC/SC/ST |

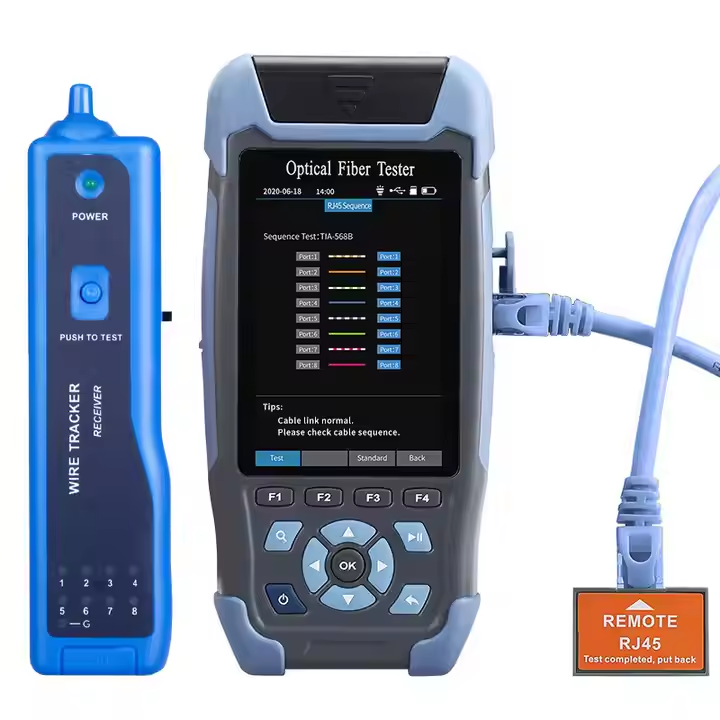

| RJ45 Cable Length Measurement | |
| Test Range | 300m |
| Other Parameters | |

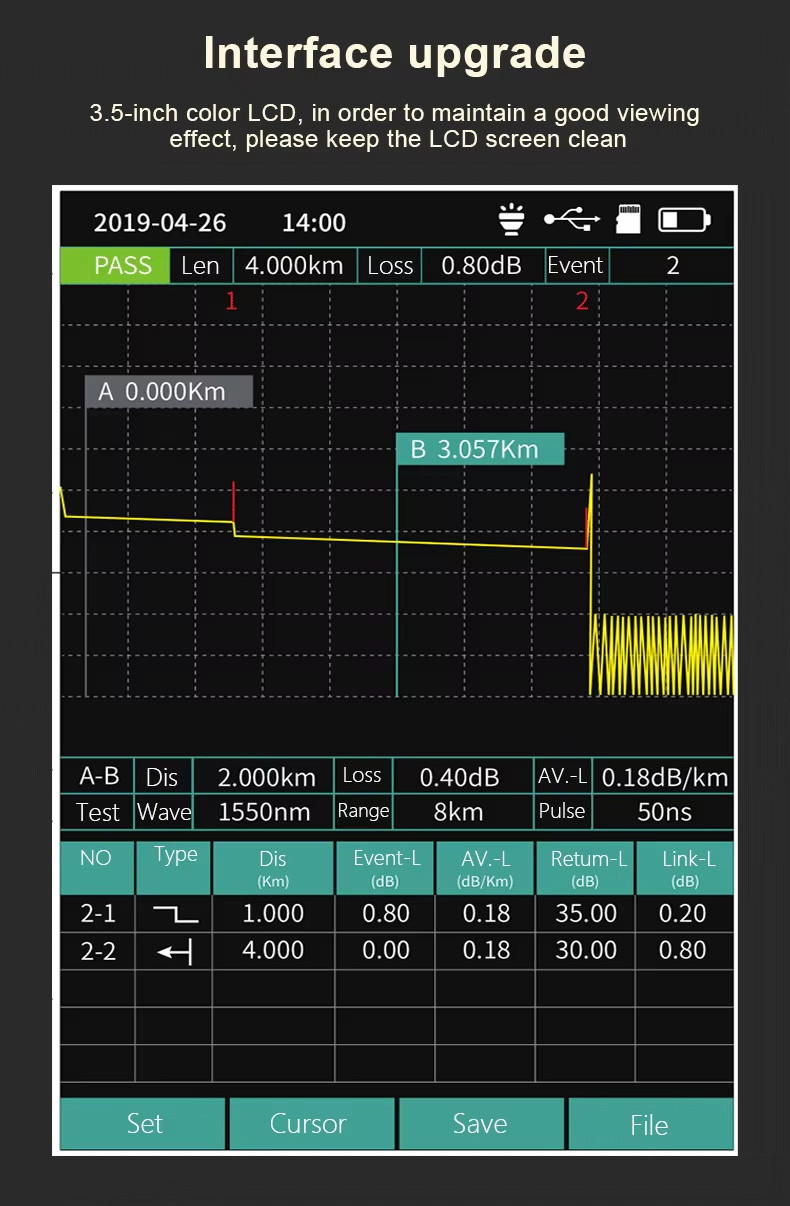

| Display | 3.5 inch Color LCD |
| Data Interface | Micro USB |
| External storage | TF Card |

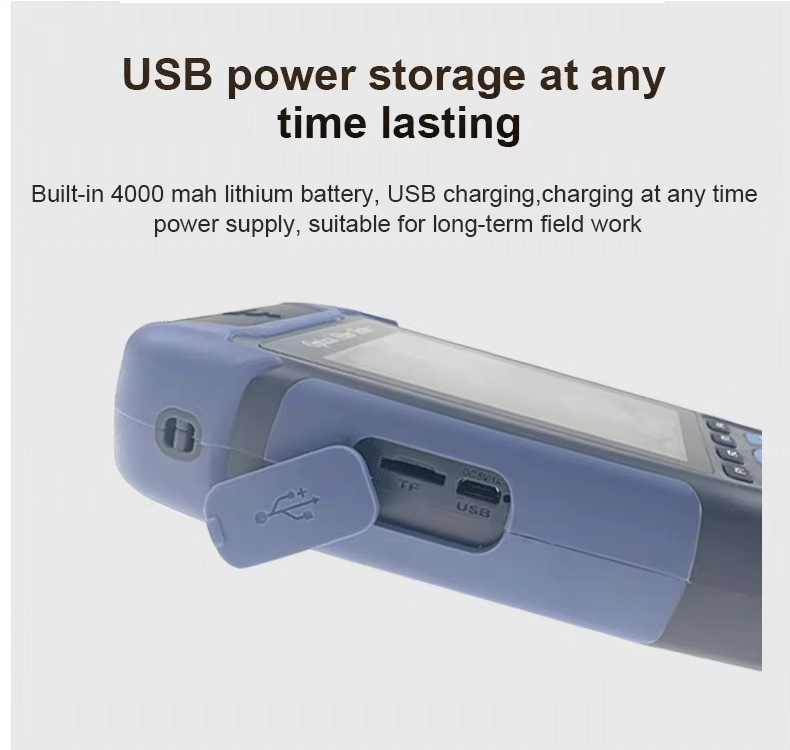

| Power Supply | Polymer Li-Battery: 3.7V, 4000mAh Adapter: 5VDC, 2A |
| Battery Life | Standby > 20h; Measuring time > 12h |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Relative Humidity | 0 ~ 95% Non Condensing |
| Size | 173mm × 82mm × 37mm |
| Weight | ≤ 350g |
