1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter
1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter
1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter
1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter
1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter
1 / 5
1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter
1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter
1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter
1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter
1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter

1*100Base-Fx to 4*RJ45 Fiber Media Converter Single Mode 20km SC 10/100Mbps Ethernet Converter

Send Inquiry

Product Description

Product Banner
Product Design

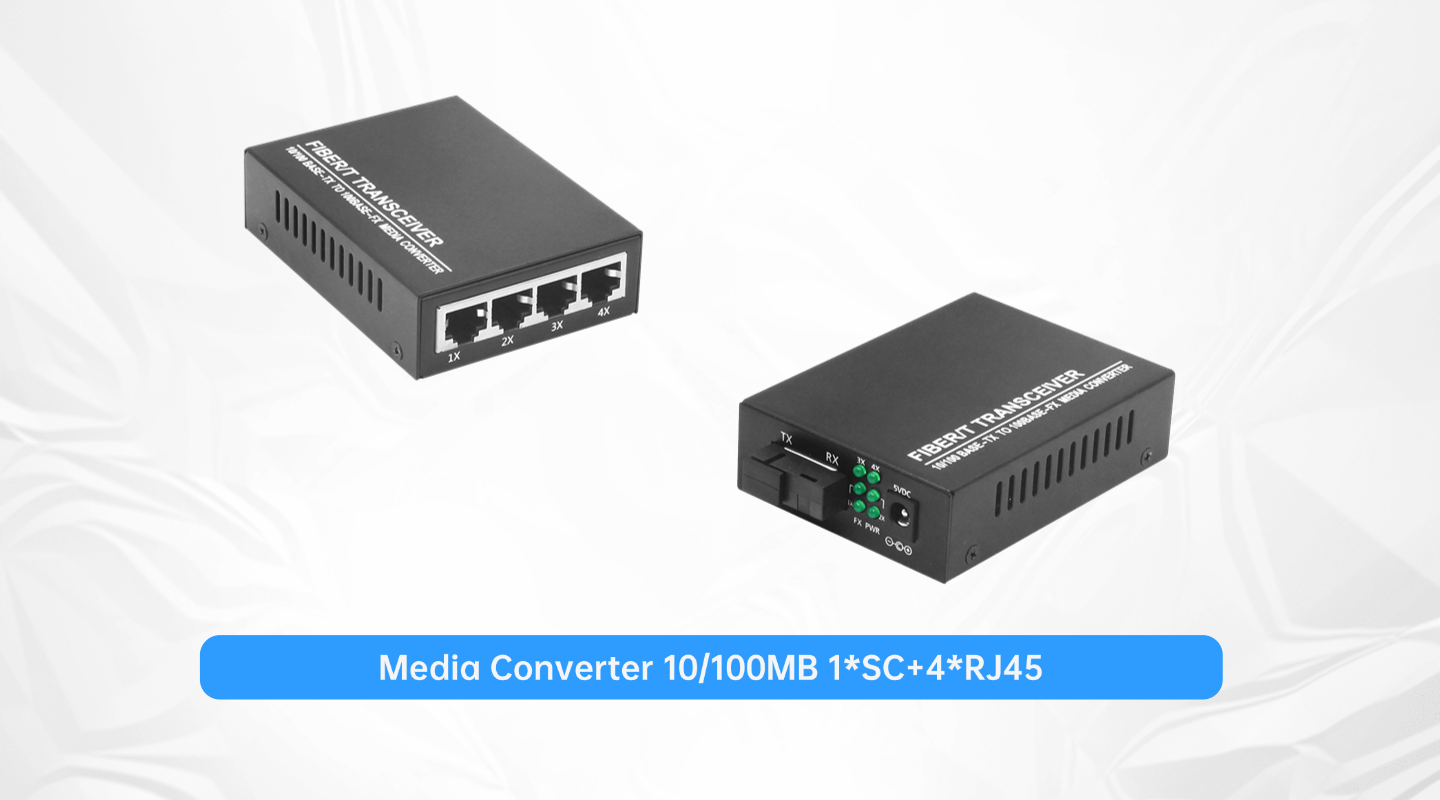

Product Design View 1
Product Design View 2
1 fiber port with 4*10/100Mbps RJ45 port
Point-to-multipoint high-speed forwarding

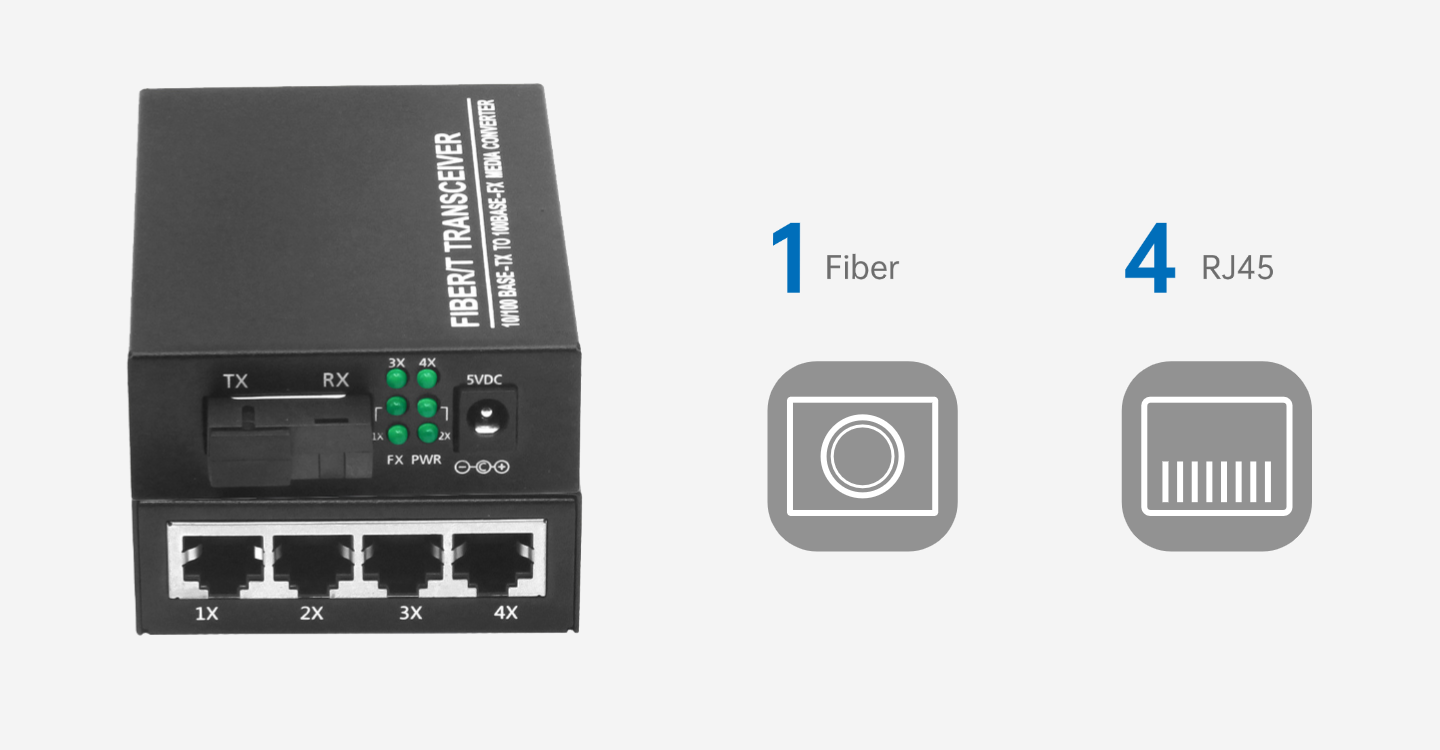

Fiber Port Architecture
Plug-and-play, no need for any configuration

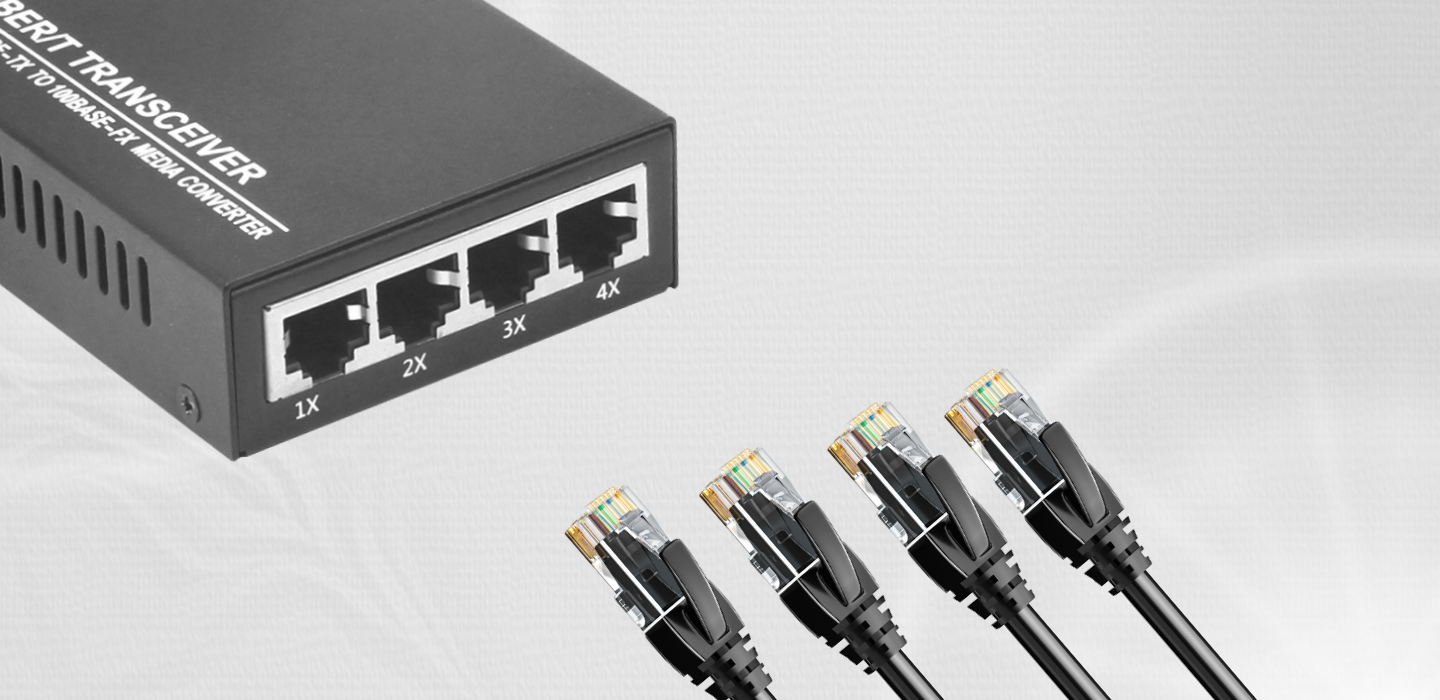

Plug and Play Setup

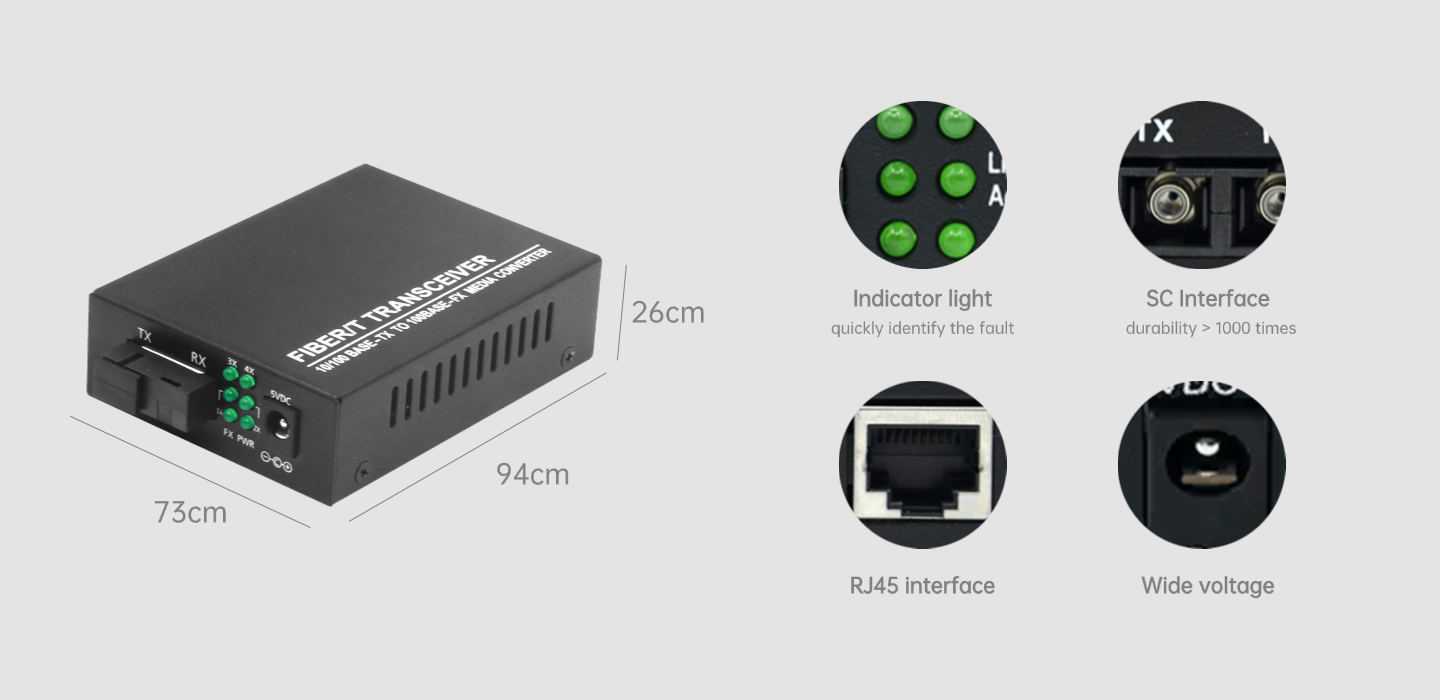

Product dimensions and interface definitions
Interface and Dimensions Diagram
Application

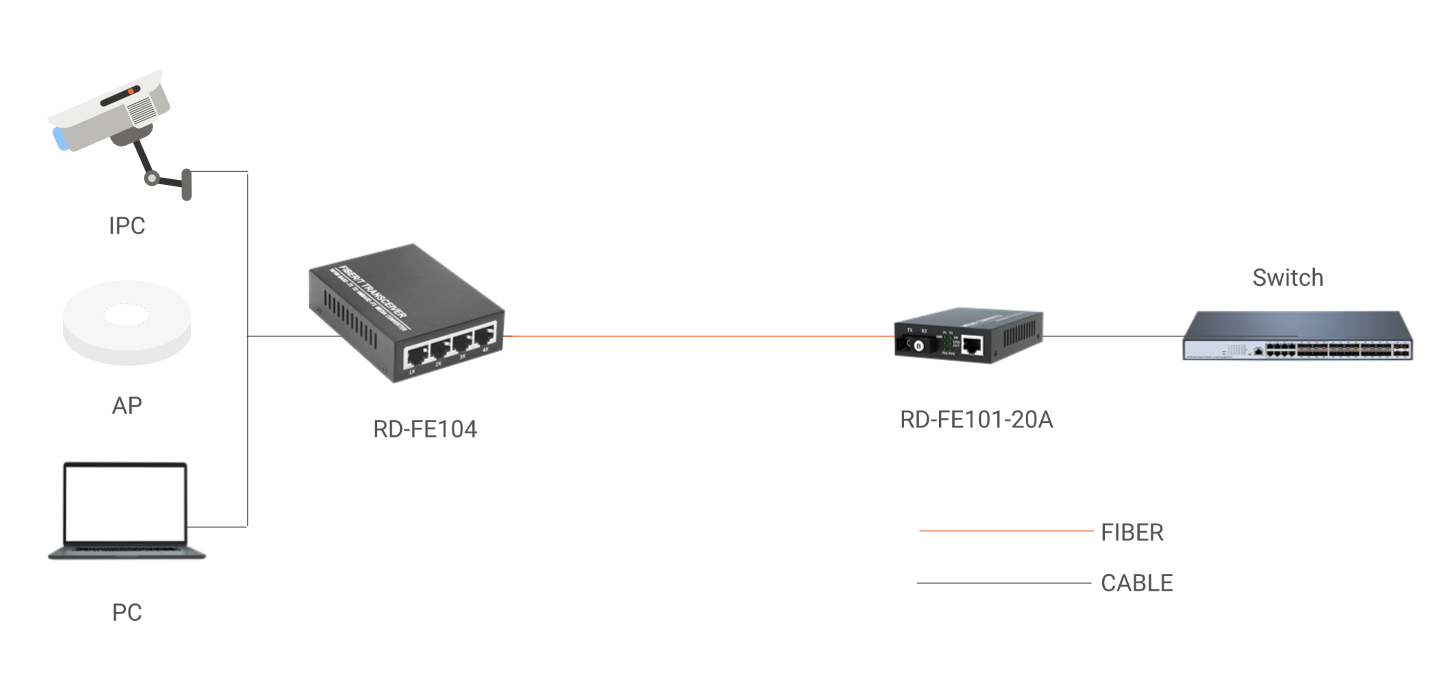

Application Diagram
Specification
Hardware Specifications
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface ▪ 1*155Mbps SC optical fiber interface
▪ 4*RJ45 10/100Mbps
Distance ▪ 100m @CTE5
▪ 20km @SMF
Wavelength ▪ A: Tx1310nm/Rx1550nm
▪ B: Tx1550nm/Rx1310nm
Transmission Media ▪ Cable: CTE5 or higher UTP and STP
▪ Optical Fiber: 9/125um single-mode optical fiber
Optical Parameter ▪ Average emission power: -9 to -3 dBm
▪ Receiving sensitivity: -22 dBm
Power DC5V/2A
Size 94.5mm * 73mm * 27mm
Environment ▪ Operating temperature: -5°C to 60°C
▪ Operating humidity: 10% to 90% RH (non-condensing)
▪ Storage temperature: -40°C to 70°C
▪ Storage humidity: 5% to 90% RH (non-condensing)
Order Info
RD-FE104-T Fiber Media Converter 10/100MB 1*SC+4*RJ45 1310-TX
RD-FE104-R Fiber Media Converter 10/100MB 1*SC+4*RJ45 1550-TX
This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.
Company Profile
Manufacturing Environment
FAQ
Who Are We?
We are a Guangdong-based optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team to serve global clients.
How Do We Guarantee Quality?
We ensure high standards by providing pre-production samples before mass production and executing a 100% final inspection before shipment.
What Can You Buy From Us?
We offer a wide range of products including FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
Why Choose Our Solutions?
We are a top-tier optical communication supplier. Our core focus is delivering reliable PON and switching solutions, supported by a strong engineering team and value-added service for partners globally.
What Services Can We Provide?
▪ Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
▪ Payment Currencies: USD, EUR, CNY, and more
▪ Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
▪ Languages: English, Chinese, Spanish, French, Russian, and more
What is the default transmission distance for the Fiber Media Converter?
The fiber media converter is configured with a default transmission distance of 20 kilometers. Custom models can be ordered based on the actual distance required for your application.
