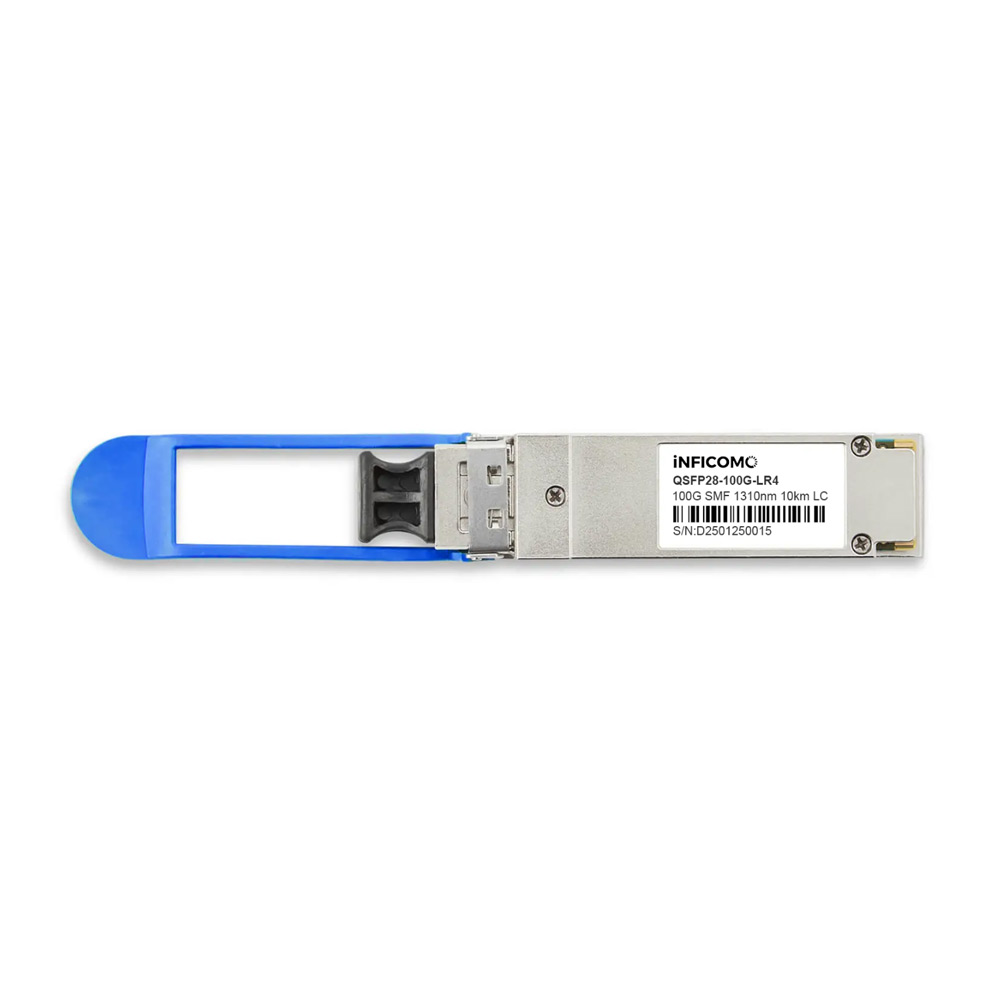

QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module
QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module
QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module
QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module
QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module
1 / 5
QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module
QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module
QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module
QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module
QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module

QSFP28-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Fiber Optic Transceivers Module

Send Inquiry

Product Description

Product Specification Banner
Specification
Part No.
QSFP-100G-LR4
Form Factor
QSFP28
Max. Data Rate
103.125Gbps (4x 25.78Gbps)
Wavelength
1310nm
Max. Cable Distance
10km
Connector
Duplex LC
Media
SMF
Transmitter Type
4 x LAN WDM EML
Receiver Type
PIN
TX Power
-4.3~4.5dBm
Receiver Sensitivity
-10.6dBm
Power Budget
6.3dB
Receiver Overload
4.5dBm
Power Consumption
≤3.5W
Extinction Ratio
>4dB
DDM/DOM
Supported
Warranty
2 Years
Commercial Temp Range
0 to 70°C (32 to 158°F)
Protocols
IEEE 802.3 100GBASE-LR4, QSFP28 MSA, SFF-8665, SFF-8636
Product Highlights
Newly-Made, Quality Guaranteed
Newly-Made, Quality Guaranteed

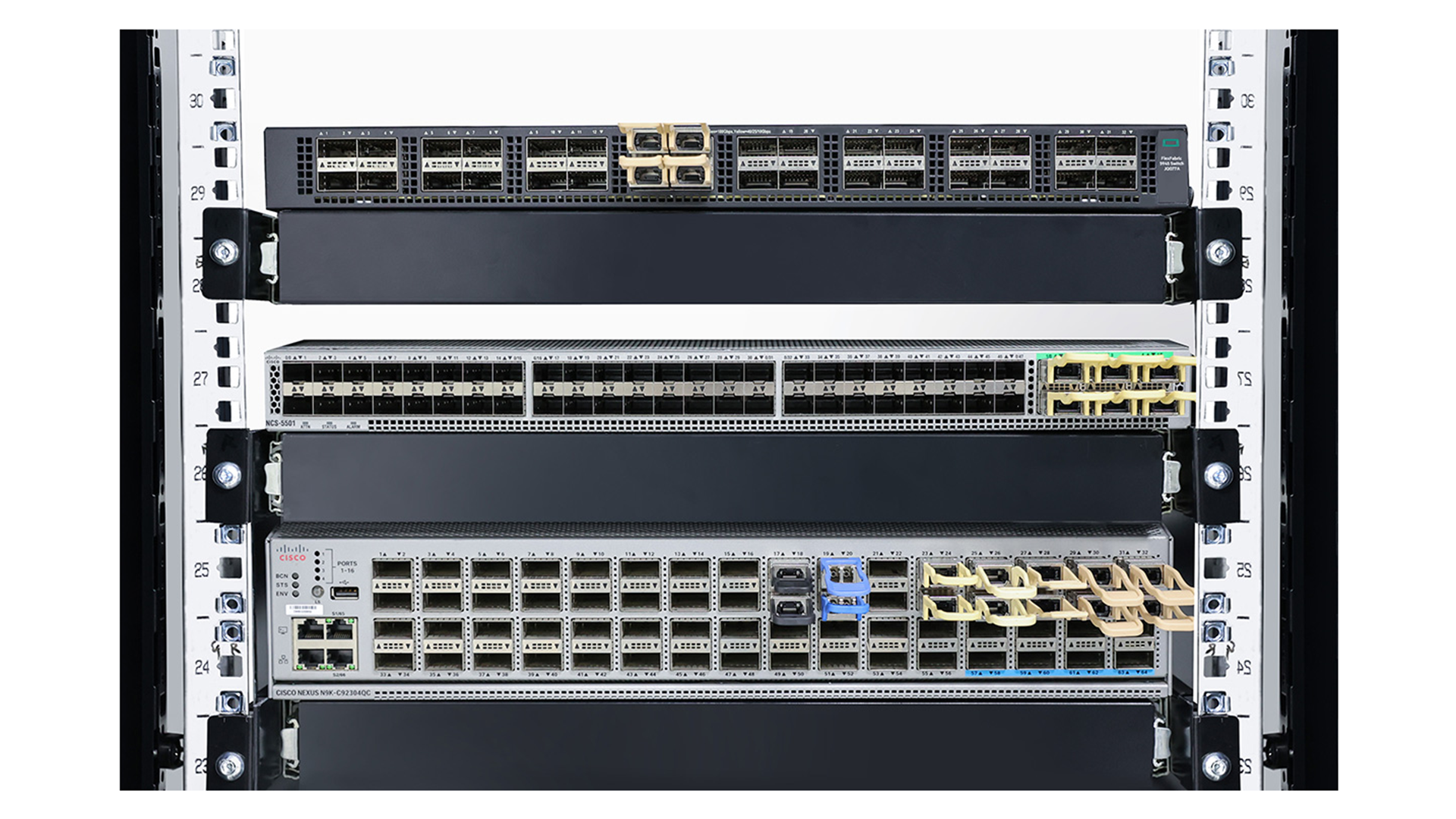

Tested in Host Devices for Proven Interoperability
Tested in Host Devices for Proven Interoperability
Comprehensive Testing Increases Reliability
Comprehensive Testing Increases Reliability
Order Info
Model Introduction
QSFP28-100G-SR4 100G QSFP28 MMF 850nm 100m MPO DOM
QSFP28-100G-PSM4 100G QSFP28 SMF 1310nm 500m MPO DOM
QSFP28-100G-CWDM4 100G QSFP28 SMF 1310nm CWDM4 2km LC DOM
QSFP28-100G-LR4 100G QSFP28 SMF 1310nm 10km LC DOM
QSFP28-100G-ER4 100G QSFP28 SMF 1310nm 40km LC DOM
QSFP28-100G-ZR4 100G QSFP28 SMF 1310nm 80km LC DOM
Frequently Asked Questions
Q Can you do OEM?
Yes, we can do OEM products. It's no problem.
Q How is quality control managed?
Every single optic module is individually tested in our test center, and also tested for compatibility on a variety of different network equipments.
Q Can I get a sample first?
Yes, we can provide samples for you to check the quality.
Q How about the payment terms?
We accept T/T, western union, Alibaba order…
Q What is the lead time?
For usual order, we keep stock, could ship about 3 days after receiving the payment. For big quantity & special products, please check lead time with sales.
Q How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
