What Is a PoE Injector and How Does It Work?

Time：2026-09-22 Author：Mason
0%

Table of Contents

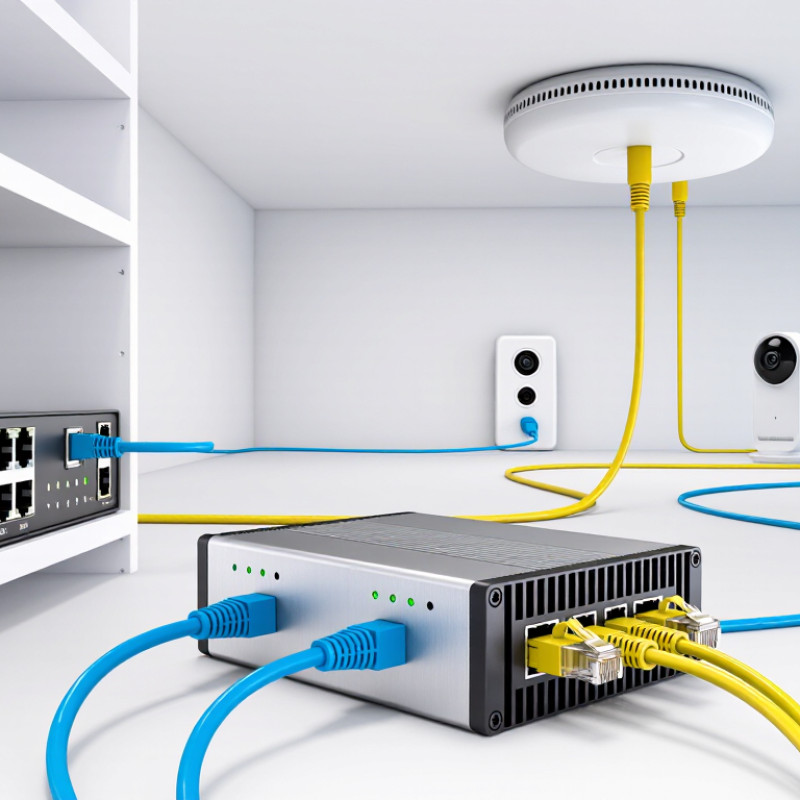

A PoE Injector is a small but important device in modern Ethernet networks. It adds electrical power to a data cable without replacing the network switch. This allows wireless access points, IP cameras, VoIP phones, and sensors to operate through one cable. Picture an access point mounted near a ceiling. One Ethernet cable carries both its network traffic and electrical power. No nearby wall outlet is required.

The IEEE 802.3af, 802.3at, and 802.3bt standards define PoE power delivery, detection, and safety requirements. The Ethernet Alliance has reported continued growth in PoE adoption across enterprise, smart-building, security, and industrial applications. MarketsandMarkets has also identified rising demand for powered devices and network infrastructure as a major market driver. Exact market forecasts differ. That matters. Readers should check each report’s definitions, forecast period, and included product categories.

David Tremblay, a leading IEEE Ethernet standards contributor, has described PoE as “a practical way to deliver power and data over the same Ethernet cable.” This idea sounds simple. The engineering is not. A compliant PoE Injector must identify a compatible device before supplying power. It should also limit current during faults and protect connected equipment. Cheap, non-standard injectors can create heat, link instability, or device damage. This guide explains how a PoE Injector works, compares active and passive designs, and shows how to select the correct voltage, wattage, and Ethernet standard. Some installations still require professional testing. That is easy to overlook.

What Is a PoE Injector and How Does It Work?
Table of Contents [Hide]
1 What Is a PoE Injector?
2 How Does a PoE Injector Deliver Power and Data?
3 Key Components Inside a PoE Injector
4 PoE Injector Standards, Types, and Power Levels
5 How to Install and Use a PoE Injector Safely

What Is a PoE Injector?

A PoE injector is a network device that adds electrical power to an Ethernet cable. It usually has two ports: one connects to a data network, and the other connects to a powered device. That device might be a security camera, wireless access point, or VoIP phone. One cable carries both data and power.

The injector acts as power-sourcing equipment, or PSE. It checks whether the connected device supports PoE before supplying electricity. This handshake reduces accidental damage. IEEE 802.3af supports up to 15.4 watts at the injector, while 802.3at raises the figure to 30 watts. The newer 802.3bt standards can provide up to 60 or 90 watts, depending on the type. Actual power reaching the device is lower because cable resistance consumes some energy.

The market is expanding. Grand View Research reported a global PoE market value of about 1.4 billion dollars in 2023, with strong growth expected through 2030. MarketsandMarkets also projects double-digit annual growth for PoE equipment during the forecast period. These figures reflect wider use in offices, retail spaces, and smart buildings. In practice, installation still needs care. A long cable, poor termination, or incorrect power class can cause unstable operation. I have seen systems fail for simple reasons. The injector was powerful enough, but the cable path was not.

How Does a PoE Injector Deliver Power and Data?

A PoE injector delivers both electrical power and network data through one Ethernet cable. It sits between a network switch and a powered device, such as a security camera, wireless access point, or VoIP phone. The injector receives data from the switch through its data input port. At the same time, it draws low-voltage DC power from an external adapter.

Inside the injector, electronic circuitry combines the data signal and DC power without disrupting communication. Power travels through the cable’s twisted pairs using a common-mode method, while data continues as a differential signal. At the receiving end, the powered device separates these signals. Its internal converter then changes the incoming voltage into levels its circuits can use. Many standards operate within a roughly 44–57 volt range, depending on the PoE class and negotiation process.

The injector and powered device should support the same IEEE PoE standard. Detection and classification help prevent power from reaching incompatible equipment. That detail is easy to miss. A cable may look suitable but still fail because of poor connectors, excessive length, or damaged pairs. Standard Ethernet channels commonly allow up to 100 meters, including patch cables. Real installations are less tidy. A loose plug can cause repeated restarts, while a weak power adapter may create unstable operation. Checking cable quality, power ratings, and device compatibility before installation remains a small step with practical value.

What Is a PoE Injector and How Does It Work?

How Does a PoE Injector Deliver Power and Data?

Data Dimension How It Works Typical Technical Details Practical Consideration
Definition A PoE injector adds electrical power to Ethernet cable while passing network data to a compatible powered device. It normally has a data input port, a PoE output port, and a separate AC power input. It is useful when an Ethernet switch does not provide Power over Ethernet.
Main Signal Path The injector receives Ethernet data, combines it with DC power, and sends both through one network cable. The data path remains Ethernet; the DC power is coupled onto the cable through internal magnetics and circuitry. The remote device separates the power from the data before using each signal.
Power Sourcing Equipment The injector acts as Power Sourcing Equipment, or PSE, because it supplies power to the cable. A PSE controls power delivery and should limit current during startup and fault conditions. The injector power rating must be sufficient for the connected powered device.
Powered Device A compatible camera, access point, VoIP phone, sensor, or other endpoint receives power and data from the PoE cable. The endpoint is commonly called a PD, or Powered Device. Check the PD's required PoE standard, input power, and Ethernet speed before installation.
IEEE 802.3af Type 1 The injector supplies power over two pairs of the Ethernet cable after detecting a compatible PD. Up to 15.4 W at the PSE; up to 12.95 W available at the PD. Nominal PoE voltage is approximately 44–57 V DC. Suitable for many VoIP phones, basic wireless access points, and fixed security cameras.
IEEE 802.3at Type 2 The injector uses two pairs and provides a higher power level than Type 1 after classification. Up to 30 W at the PSE; up to 25.5 W available at the PD. Typical operating voltage is approximately 50–57 V DC. Often used for more capable access points, pan-tilt-zoom cameras, and video phones.
IEEE 802.3bt Type 3 Power is delivered over all four twisted pairs to increase the available power budget. Up to 60 W at the PSE; up to 51 W available at the PD, depending on the implementation and cable conditions. Appropriate for high-performance wireless access points, multi-sensor cameras, and thin clients.
IEEE 802.3bt Type 4 The injector delivers the highest standardized PoE power by using all four cable pairs and enhanced power negotiation. Up to 90–100 W at the PSE; approximately 71 W or more may be available at the PD, depending on the defined power class and equipment design. Designed for demanding equipment such as high-end access points, displays, and building-control devices.
Detection A standards-compliant injector first checks whether the connected endpoint presents the correct PoE detection signature. IEEE PoE detection uses a low-voltage test, commonly associated with a powered-device signature near 25 kΩ. Detection helps prevent applying PoE voltage to ordinary non-PoE Ethernet equipment.
Classification and Negotiation After detection, the injector determines the PD's power requirement and applies an appropriate power level. Power classes can be communicated using classification pulses and, for higher-power systems, additional negotiation methods. The final usable power is affected by the injector rating, cable resistance, connector quality, and PD class.
Power Delivery Modes PoE can place common-mode DC power on the same twisted pairs that carry Ethernet signals. Two-pair PoE uses either Mode A or Mode B; four-pair PoE uses both pair sets. The injector and PD must support compatible wiring and PoE standards.
Ethernet Data Speed The injector passes Ethernet frames between the switch and endpoint; it does not normally process or route the data. Supported speeds may include 10/100 Mbps, 1 Gbps, 2.5 Gbps, or higher, depending on the injector's data circuitry. A high-power rating does not automatically guarantee a high Ethernet data rate.
Cable and Distance Power and data travel over balanced twisted-pair Ethernet cabling. The standard Ethernet channel reach is generally up to 100 m, including permanent link and patch-cord allowances. Use suitable copper cable, correctly terminated connectors, and appropriate cable length to reduce voltage drop and data errors.
Protection Features The injector can monitor current, voltage, temperature, and connection status while supplying power. Common protections include short-circuit protection, overcurrent limiting, over-temperature protection, and surge protection. Protection quality varies by product; outdoor installations may require additional surge protection and grounding.
Passive PoE Difference A passive injector applies DC power without the standard IEEE detection and negotiation process. Voltage and pin assignments vary by equipment design; common passive systems may use fixed DC voltages such as 12 V, 24 V, or 48 V. Passive PoE is not automatically interchangeable with IEEE 802.3af, 802.3at, or 802.3bt equipment. Verify compatibility before connection.
Key takeaway: A PoE injector combines Ethernet data with regulated DC power, sends both through a single cable, and enables a compatible powered device to operate without a separate local power adapter.

Key Components Inside a PoE Injector

A PoE injector sends electrical power and network data through one Ethernet cable. Its internal components make this process safe and stable. The AC input stage receives power from a wall outlet. A fuse and surge protection help limit damage from sudden voltage changes. The isolation transformer separates the input circuit from the Ethernet output. This barrier is essential for safer operation.

Inside the injector, a rectifier converts AC into DC power. A switching controller then regulates that energy efficiently. MOSFETs switch current at high speed, while capacitors smooth voltage changes. The Ethernet transformer transfers data and power without directly joining the circuits. A detection circuit checks whether the connected device can accept PoE. If the device does not respond correctly, power should remain off. That small decision prevents expensive mistakes.

Tips

Check the injector’s output rating before connecting equipment. Inspect its casing, cable ports, and ventilation openings regularly. A warm enclosure is common, but excessive heat deserves attention. Keep cables away from water and sharp edges. During field checks, technicians often find loose connectors causing unstable links. The diagnosis is not always obvious. Sometimes the injector is blamed unfairly. Measure voltage under load, not only without a device connected. This simple test can reveal weak power delivery or a failing capacitor.

PoE Injector Standards, Types, and Power Levels

A PoE injector adds electrical power to an Ethernet data connection. It receives network traffic from a switch, then places direct-current power onto compatible twisted-pair wires. The powered device, such as a security camera or wireless access point, receives both signals through one cable. Active injectors detect compatibility before applying power. Passive injectors do not negotiate voltage, so careful matching is essential. Small mistakes can damage equipment.

IEEE 802.3af supplies up to 15.4 watts from the power-sourcing equipment, with about 12.95 watts available to the device. The 802.3at standard raises those figures to 30 watts and 25.5 watts. IEEE 802.3bt Type 3 supports up to 60 watts, while Type 4 can deliver up to 90 or 100 watts, depending on implementation. Cable length, resistance, temperature, and connector quality reduce usable power. The label alone is not enough.

Injector selection should match the device class, cable category, and required headroom. Single-port models suit cameras and access points. Multi-port units fit dense installations. The Ethernet Alliance has reported growing adoption of four-pair PoE for higher-power endpoints, including displays, lighting, and compact computing systems. A 2024 MarketsandMarkets analysis also projected continued double-digit growth for the PoE market through the decade. Those forecasts are useful, but they are not guarantees. Field testing still matters, especially with long cables or poorly documented devices.

How to Install and Use a PoE Injector Safely

A PoE injector adds electrical power to an Ethernet cable while preserving network data. It is useful when a switch cannot power a camera, access point, or phone. IEEE 802.3af supports up to 15.4 watts per port, while 802.3at and 802.3bt raise available power to 30 and 60 watts or more. These figures describe source power, not always the device’s final input. Cable loss matters. Industry forecasts from Grand View Research also indicate double-digit growth for the global PoE market through 2030, reflecting wider network deployment.

Install the injector indoors, on a dry, ventilated surface. Check that its standard matches the powered device. A passive injector can damage equipment when voltage levels do not match. Connect the network cable to the LAN port, then connect the device to the PoE output. Use certified Cat5e or better cable, and avoid crushed sections or sharp bends. Do not exceed the injector’s wattage rating. Leave airflow around the power unit.

Power down before changing connections. Confirm the status light after startup. If the device restarts repeatedly, measure the load rather than guessing. I label both cables during installation; it prevents hurried mistakes later. The Ethernet Alliance recommends checking cable quality, power budgets, and interoperability during PoE deployment. That advice sounds basic, but I have seen neat installations fail because one cable was too long or poorly terminated. Safety improves when every connection has a clear purpose.

What Is a PoE Injector and How Does It Work?

A Power over Ethernet (PoE) injector combines Ethernet data with DC power and sends both through one network cable to a compatible powered device. The chart compares standardized maximum power available at the injector output with the power guaranteed at the receiving device.

To install a PoE injector safely, verify that the injector standard matches the powered device, connect the network source to the data input, connect the device to the PoE output, use suitable Ethernet cabling, and keep the injector ventilated. Do not connect non-PoE equipment to a powered port unless the injector provides appropriate detection and protection.

Values are maximum nominal power levels defined for IEEE 802.3 PoE types. Actual power may be lower because of cable loss, device requirements, and installation conditions.

FAQS

What does a PoE injector do?

It sends network data and electrical power through one Ethernet cable. One cable, two jobs.

Which internal parts help an injector operate safely?

A fuse, surge protection, isolation transformer, rectifier, controller, MOSFETs, and capacitors manage power flow. These parts reduce electrical stress.

How does an active injector protect connected equipment?

It checks whether the device accepts PoE before applying power. If the response is wrong, power should stay off.

What is the difference between active and passive injectors?

Active injectors negotiate compatibility. Passive injectors do not, so incorrect voltage matching can damage equipment.

How much power can common PoE standards provide?

Basic levels provide about 12.95 watts to the device, while higher levels provide 25.5, 60, or roughly 90 to 100 watts. Actual delivery varies.

Why might the device receive less power than the label suggests?

Long cables, resistance, heat, and weak connectors reduce usable power. The printed rating is not the whole story.

How should I choose an injector for my equipment?

Match the injector’s output, device class, cable category, and required power headroom. A small safety margin helps.

What should technicians inspect during maintenance?

Check the casing, ports, ventilation openings, and connectors. Keep cables dry and away from sharp edges.

Is a warm injector always faulty?

Mild warmth is common. Excessive heat needs attention, especially near blocked ventilation.

How can unstable power delivery be tested?

Measure voltage under load, not only with no device connected. A loose connector may be the real problem. Misdiagnosis happens.

Conclusion

A PoE Injector is a networking device that adds electrical power to an Ethernet cable while allowing data to travel through the same connection. It is useful for powering compatible devices such as network cameras, wireless access points, and communication terminals when a network switch does not provide Power over Ethernet. The injector typically has a data input, a combined power-and-data output, and an internal power supply that converts electrical energy into a suitable output.

Inside a PoE Injector, control circuits, power conversion components, protection features, and Ethernet interfaces work together to identify compatible equipment and deliver power safely. Different PoE standards and power levels support various device requirements, while active and passive types operate in different ways. Safe installation involves checking compatibility, selecting the correct cable, connecting the data source and powered device to the proper ports, and keeping the injector ventilated. Following the device specifications helps prevent overheating, connection problems, and equipment damage.
